ACV

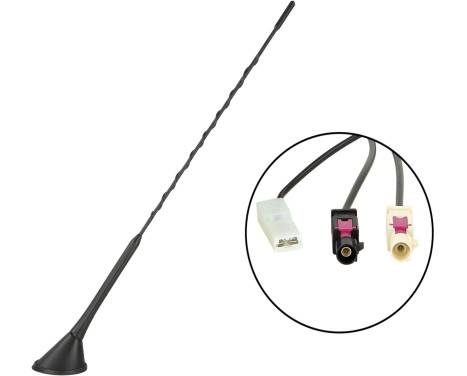

Roof antenna AM/FM DAB/DAB+ 60° rod inclination 12V external

Universally applicable

Roof antenna AM/FM DAB/DAB+ 60° rod inclination 12V external

Product number: 1684580

Manufacturer number: 15-7677850

EAN: 4026724672732

£ 83.42

Incl. VAT
View product specifications
In stock
Delivery 09-03-2026

Free Shipping

Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

  • Specifications

    Roof antenna AM/FM DAB/DAB+

    Type 16V
    NB:
    NEW ITEM FOR 15-7677932
    CONNECTION AND ACCESSORIES CHANGED
    OPTIONAL ACCESSORIES LISTED BELOW:

    Reception:
    AM/FM
    DAB/DAB+

    Assembly:
    Installation location: rear roof
    Bore round: 19 mm
    Square hole: 15mm x 15mm
    Bar length: 410 mm
    Bar tilt: 60°
    Bar type: anti-noise
    Thread: M6

    Dimensions:
    Total height: 450 mm
    Antenna base: L = 60 mm / W = 43 mm
    Connection:
    AM/FM: Fakra B(m) white RG174 / 180 mm
    DAB/DAB+: Fakra A(m) black RG174 / 200 mm
    External power supply: flat plug 6.3 mm

    Frequency range:
    AM: 150 kHz - 1710 kHz
    FM: 87.5 MHz-108 MHz
    DAB/DAB+: 174MHz - 240MHz

    Extra:
    DAB/DAB+: 12dBi

    Power supply:
    AM/FM: +12V external
    DAB: +12V external

    Energy consumption:
    AM/FM: 75mA max
    DAB/DAB+: 75mA max

    Impedance:
    AM/FM: 50 ohm
    DAB/DAB+: 50 ohm

    Standing wave ratio:
    AM: <5:1
    FM: <7.5:1
    DAB/DAB+: <3:1

    Options:
    AM/FM:
    Antenna cable extension Fakra(f) > Fakra(f) 500cm: 15-7581195
    Antenna adapter Fakra(m) > DIN(m) passive: 1524-01
    Antenna adapter Fakra(m) > ISO(m) passive: 1524-02
    DAB/DAB+:
    Antenna cable extension Fakra(f) > SMB(f) 500cm: 15-7581012
    Antenna adapter SMB(m) > SMA(m): 1502-29

    Replacement stick without base:
    Antenna rod AM/FM DAB/DAB+ 41cm M6: 15-7551040

    Suitable for:
    AM FM DAB DAB+
    Universal
    MaterialPlastic
    FootIncluding
    applicationSprite
    CableIncluding
    Warranty2 years
    Length45 cm

  • Applicability

    Universally applicable

  • Manufacturer

    ACV

  • Delivery time

    Expected delivery date:

    09-03-2026
