ACV

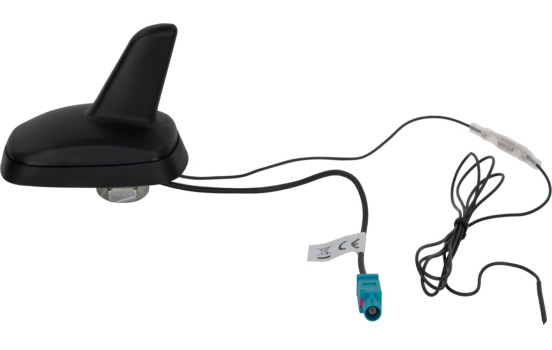

Shark roof antenna AM/FM Fakra male (phantom)

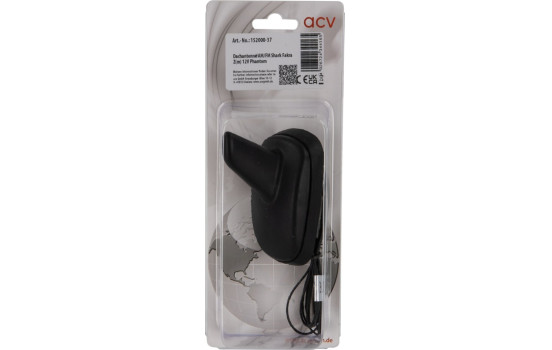

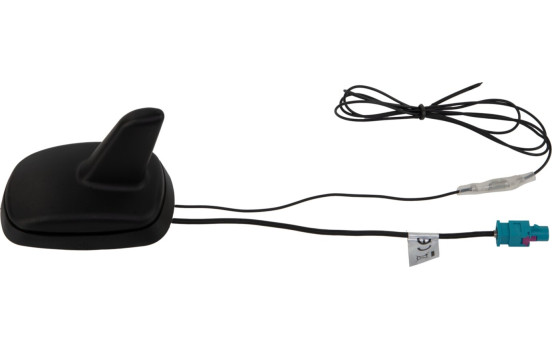

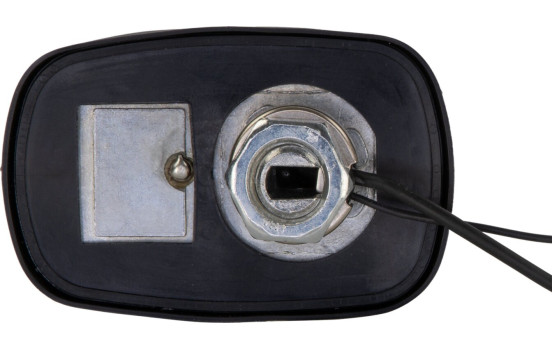

Shark roof antenna AM/FM Fakra male (phantom) Shark roof antenna AM/FM Fakra male (phantom), Image 2 Shark roof antenna AM/FM Fakra male (phantom), Image 3 Shark roof antenna AM/FM Fakra male (phantom), Image 4
  • Shark roof antenna AM/FM Fakra male (phantom)
  • Shark roof antenna AM/FM Fakra male (phantom), Thumbnail 2
  • Shark roof antenna AM/FM Fakra male (phantom), Thumbnail 3
  • Shark roof antenna AM/FM Fakra male (phantom), Thumbnail 4

Product number: 1735200

Manufacturer number: 152000-37

EAN: 4026724344165

£ 36.11

Incl. VAT
View product specifications
In stock
Delivery 04-06-2026

Free Shipping

Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast shipping: 2 days
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

  • Specifications

    Style: Shark

    The acv basic antenna series provides good reception performance even under less than ideal conditions, thanks to the selection of quality components and careful installation.

    To optimize antenna reception, always ensure optimal grounding of the antenna base or grounding strap during installation.

    Remove existing paint on the contact points with workshop material and protect against corrosion with suitable contact paste and also treat the antenna rod wire and antenna base to optimize contact.

    Remark:

    AM antenna black cable 115 cm > installation extended under the roof covering without GND contact

    +12V phantom power:

    OEM HU with phantom power > check phantom power
    aftermarked HU with phantom power > activate and check phantom power

    In case of reception problems:

    check antenna cable and antenna adapter

    Check vehicle for errors using LED lighting afterwards
    check vehicle for errors by retrofitting voltage converter / power supply units / USB charging adapter
    check the vehicle for errors due to retrofit digital power amplifiers

    Receive mode:
    AM/FM

    Installation:
    installation point: rear roof
    drill hole round: 21 mm

    Dimensions:
    antenna socket: L = 86 mm / W = 54 mm / H = 63 mm

    Connections:
    AM/FM: Fakra Z(m) / L = 21 mm

    Frequency range:
    AM: 150 kHz - 1710 kHz
    FM: 87.5 MHz - 108 MHz

    Power supply:
    AM/FM: +12V phantom power

    Power consumption:
    AM/FM: 33 mA

    Impedance:
    AM/FM: 50 Ohm

    Optional:
    AM/FM:

    Antenna cable extension Fakra(f)>Fakra(f) 500cm ROKA > item: 1526-500-1
    Antenna adapter Fakra(m)>DIN(m) 12V phantom LEONI > item: 1524-03-1

    Suitable for:
    AM
    FM
    MaterialPlastic
    FootIncluding
    Length6 cm
    applicationSharkfin
    CableIncluding
    Warranty2 years

  • Applicability

    Universally applicable

  • Manufacturer

    ACV
