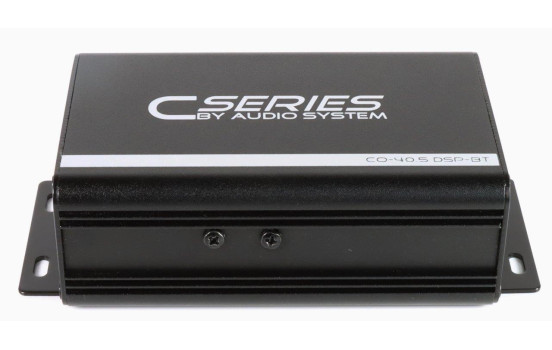

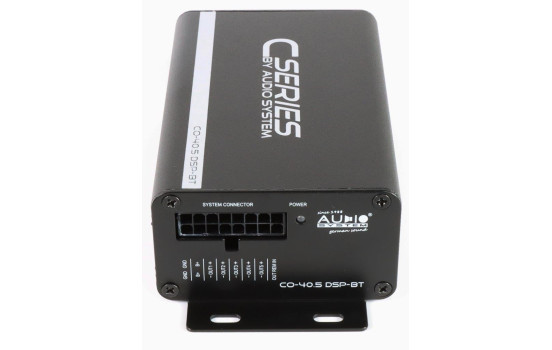

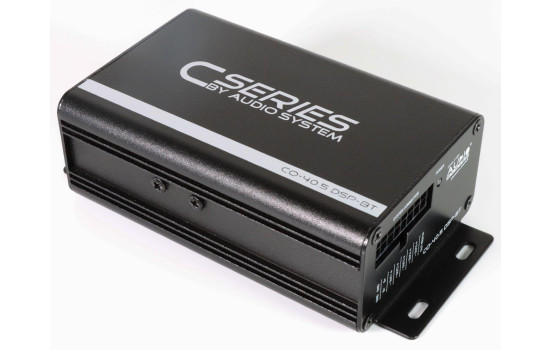

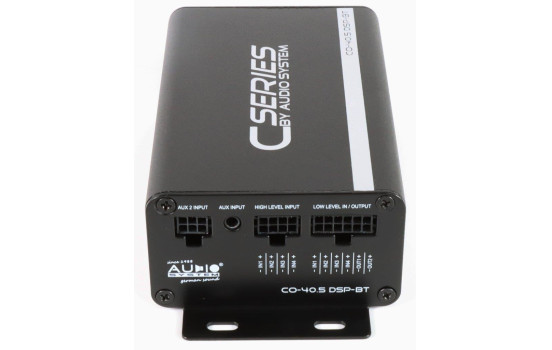

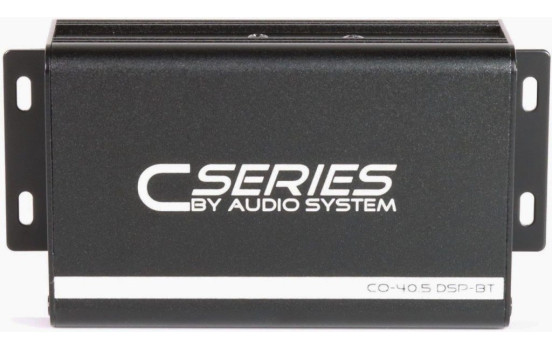

CO-SERIES 5-Channel Amplifier with 7-Channel DSP and Bluetooth

Analog 5-channel amplifier with 7-channel DSP and BT
APP SOFTWARE via ANDROID-BT
SIGMA DSP processor from ANALOG DEVICES
automatic UPDATE via WLAN
7x parametric EQs per channel
8x presets
HP/LP filter with 12 dB
2x DSP controlled RCA outputs (2 Volt)
2x AUX input (once with signal detection)
4x RCA inputs
4x Molex high-level inputs (5 to 20 volts) with automatic switch-on
1x remote control
Frequency range:30-20000 Hz
Start/stop possible up to 6 Volt/5 sec.
Operating voltage 9.6-18 volts
5x 40 Watt RMS @ 4Ohm
5x 60 Watt RMS @ 2Ohm

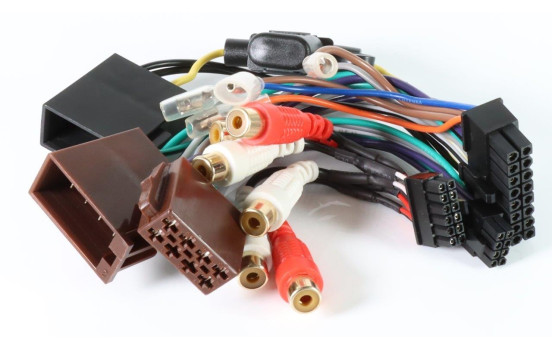

ISO speaker connection for High IN
ISO Speaker output
ISO Power Plug

Dimensions 123 x 45 x 80mm


Suitable for:
5-Channel

---

Output	320 watt
Number of channels	5
Warranty	2 years
