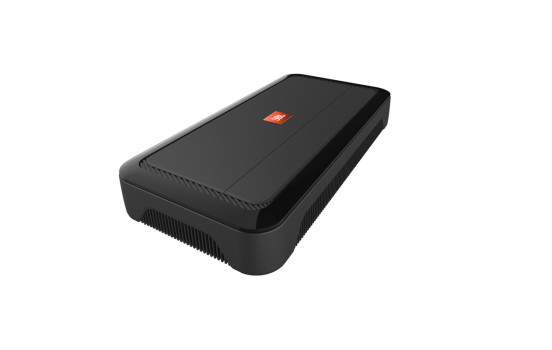

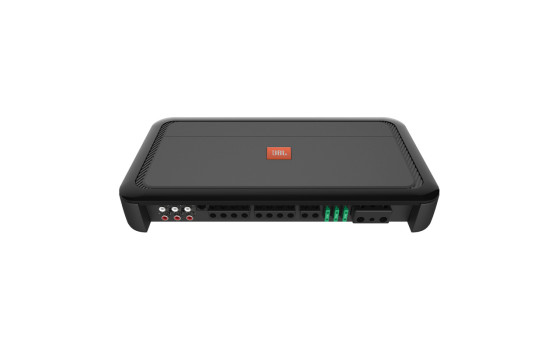

JBL Club A5055 5-Channel Amplifier (4x 45W + 1x 500W)

JBL Club A5055 5-Channel Amplifier (4x 45W + 1x 500W)

The Club A5055 5-channel amplifier delivers a powerful 50 watts RMS to each of your car's front and rear speakers, and a whopping 500 watts RMS to the subwoofer channel—a much better subwoofer-to-full-range ratio than typical with 5-channel amplifiers. You can also bridge the amplifier to 3-channel mode to deliver 140 watts RMS to your front speakers while driving your subwoofer with 500 watts RMS. Speaker-level inputs allow this amplifier to be integrated into almost any system, even one that uses your car's factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow you to dial in the perfect rolloff to best suit your speaker placement and cabin acoustics. The subwoofer channel features a low-pass crossover, selectable bass boost and phase switch to optimize subwoofer performance.

Features

1. Compact size
2. High and low entrance level
3. Variable crossover and bass boost
4. Low noise and distortion
5. Input level control
6. Full built-in protection
7. Phase switch
8. RBC wired remote control

Technical specifications

• 5-channel car amplifier
• 50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
• 65 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
• 140 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
• Variable high- and low-pass filters (32–320Hz,12dB/octave) on front and rear channels
• Low-pass filter (32–320Hz, 12dB/octave) on subwoofer channel
• Bass boost on subwoofer channel(0-12dB at 45Hz)
• Phase switch on subwoofer channel(0, 180 degrees)
• Preamp and speaker-level inputs
• Fuse rating: 30A x 34-gauge power and ground leads recommended — wiring and hardware not included with amplifier
• W x H x D = 360mm x 51.3mm x 180mm
• W x H x D = 14-3/16'' x 2-1/16'' x 7-1/8''

What's in the box?

• One Club A5055 five channel amplifier
• 4 Bare wire-to-RCA adapters
• Six 30A ATO fuses (3 installed, 3 spare)
• Remote bass control module
• 16.5' Remote control cable (RJ-25 plugs on both ends)
• 2 Self-tapping screws for remote (M3 x 15mm)
• 4 Mounting screws (M4 x 53mm)
• Owner's ManualTwo JBL stickers1 logo badge
