Audio System

X-SERIES 5-channel amplifier with 9-channel DSP and BT

Universally applicable

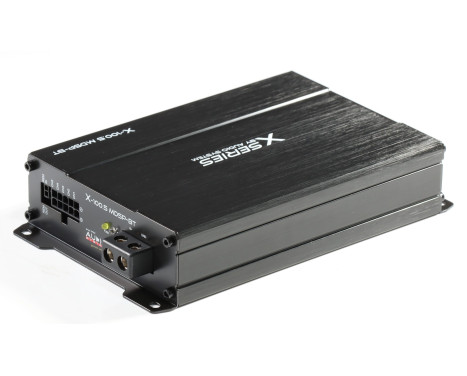

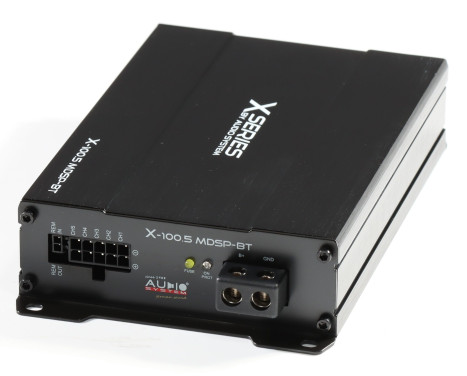

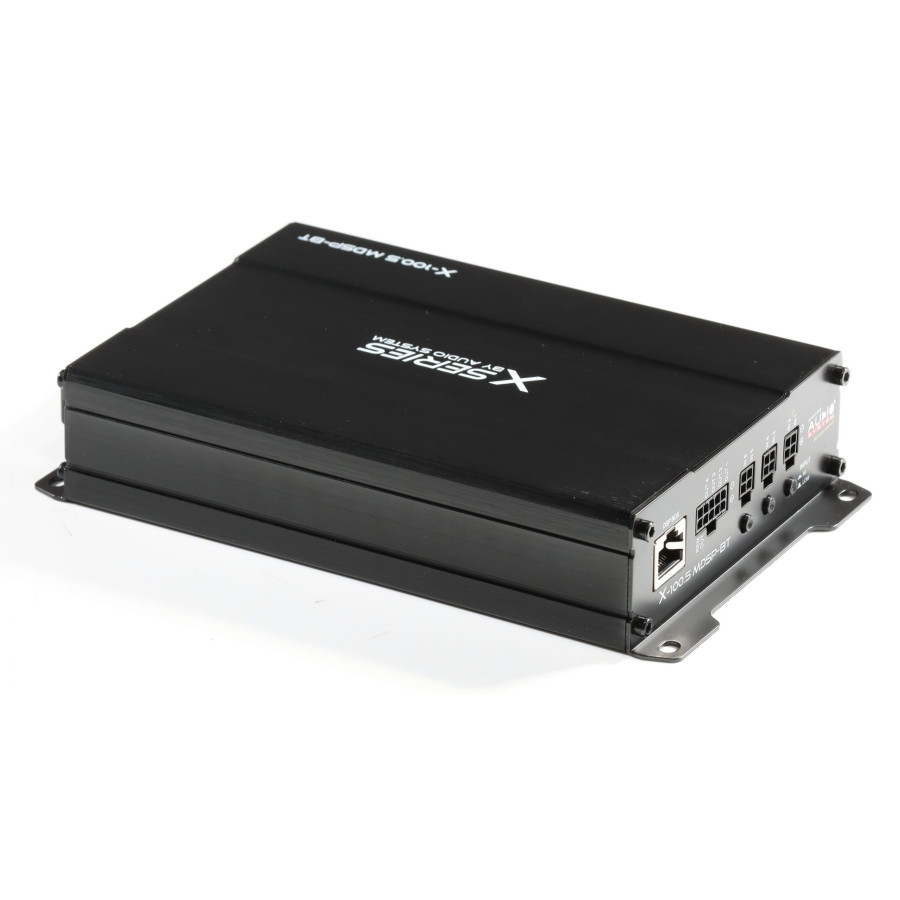

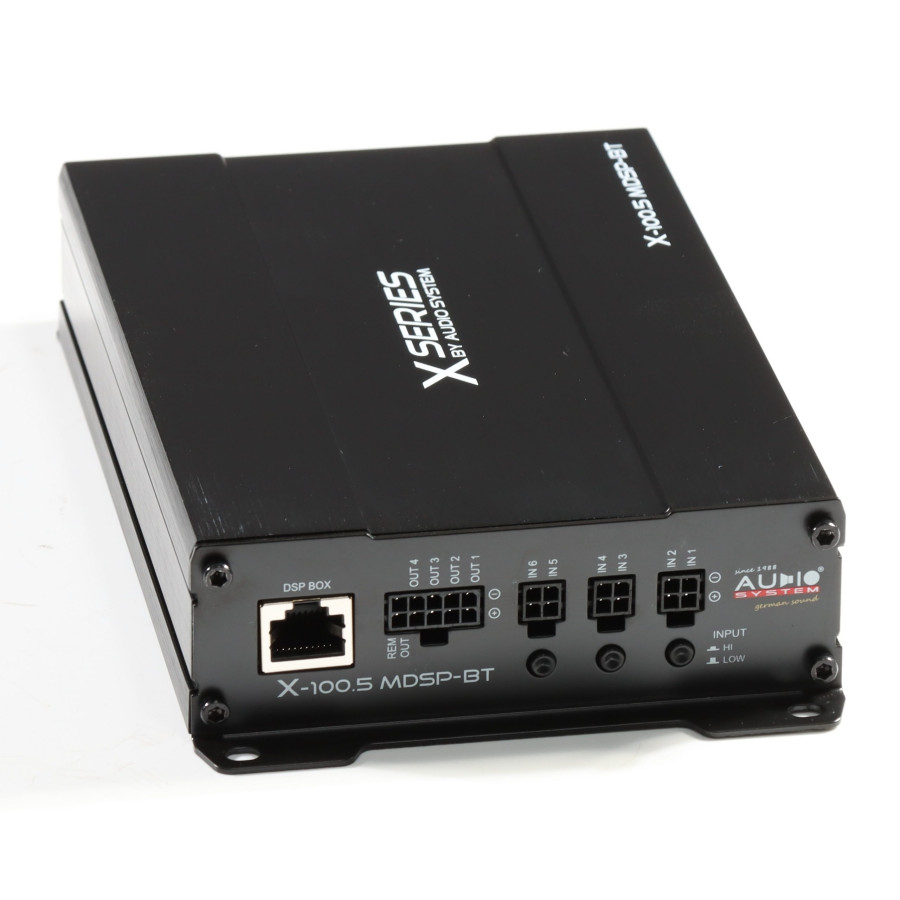

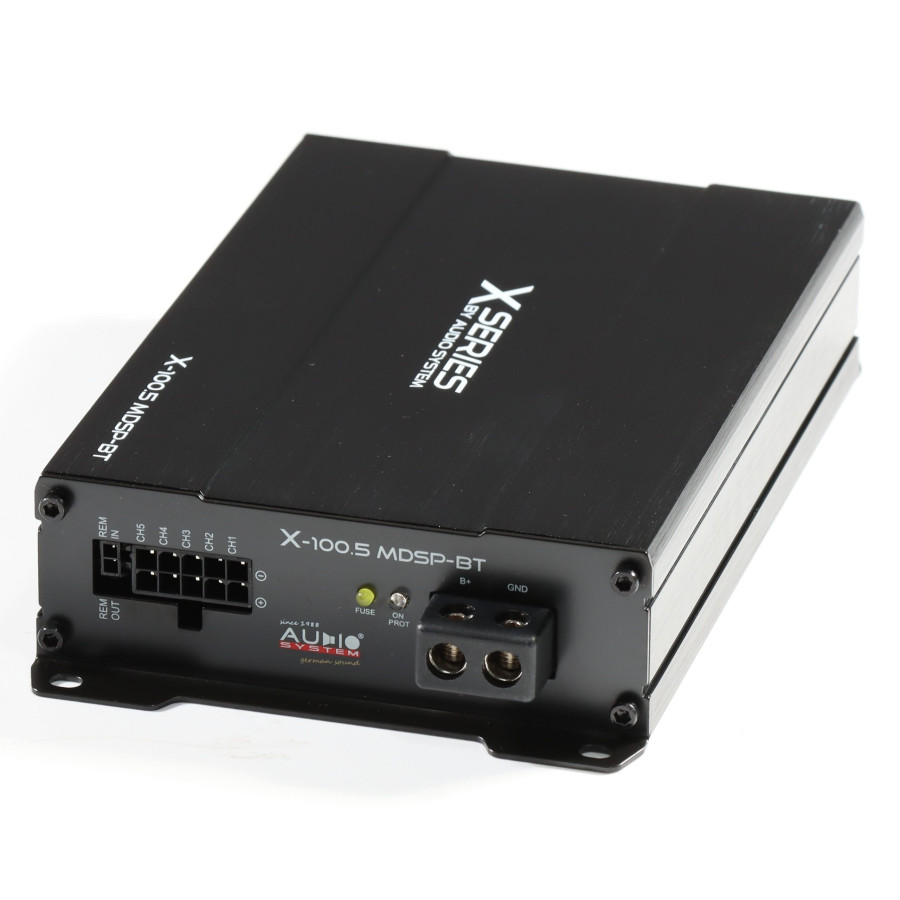

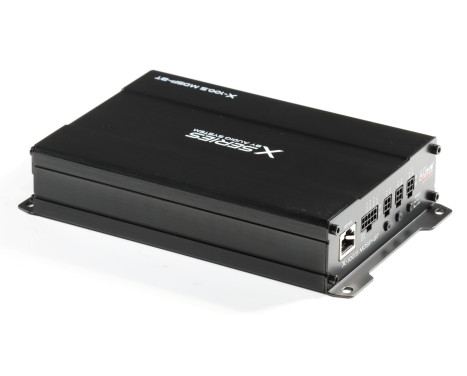

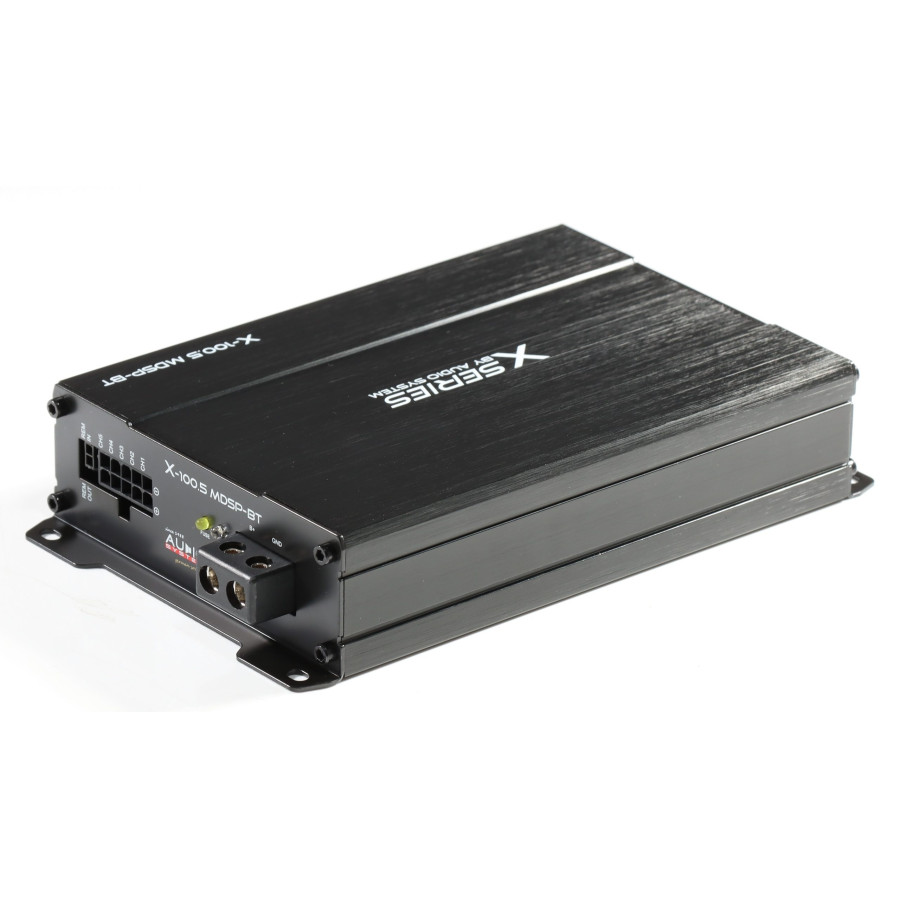

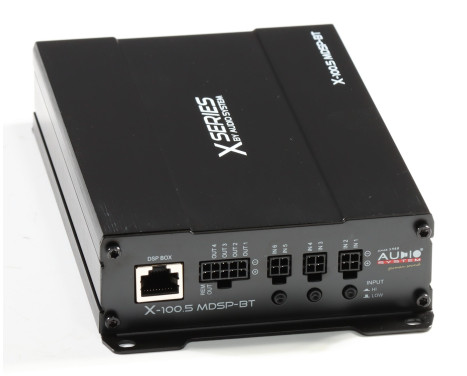

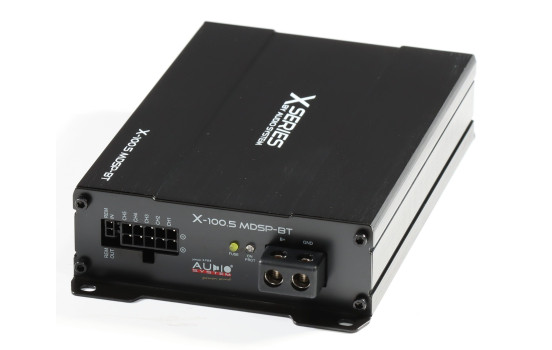

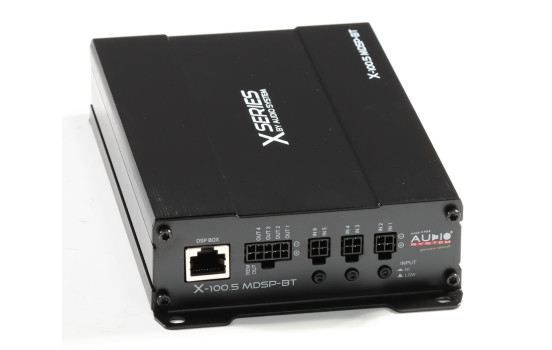

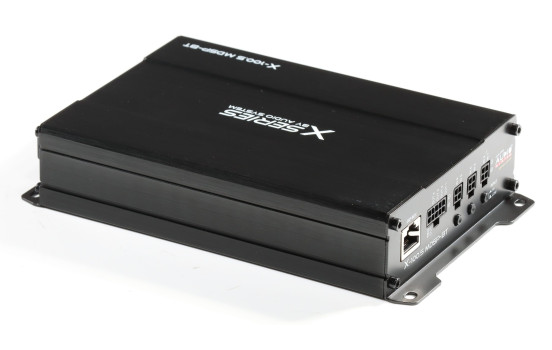

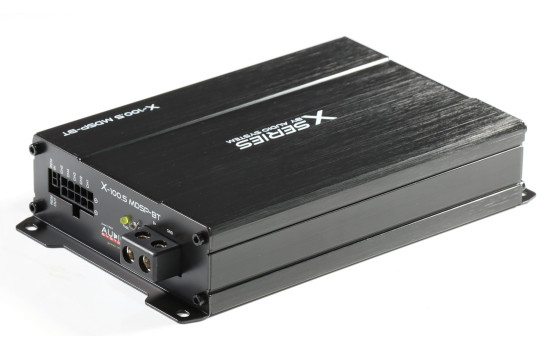

X-SERIES 5-channel amplifier with 9-channel DSP and BT X-SERIES 5-channel amplifier with 9-channel DSP and BT, Image 2 X-SERIES 5-channel amplifier with 9-channel DSP and BT, Image 3 X-SERIES 5-channel amplifier with 9-channel DSP and BT, Image 4
  • X-SERIES 5-channel amplifier with 9-channel DSP and BT
  • X-SERIES 5-channel amplifier with 9-channel DSP and BT, Thumbnail 2
  • X-SERIES 5-channel amplifier with 9-channel DSP and BT, Thumbnail 3
  • X-SERIES 5-channel amplifier with 9-channel DSP and BT, Thumbnail 4

Product number: 1968061

Manufacturer number: X-100.5 DSP BT

EAN: 4251834502901

£ 498.00

Incl. VAT
View product specifications
In stock
Delivery 12-06-2026

Free Shipping

Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast shipping: 2 days
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

  • Specifications

    1. "APP" software adjustable via ANDROID-BT
    2. 8-channel SIGMA DSP processor from ANALOG DEVICES automatic UPDATE via WLAN
    3. 30x parametric EQs per channel
    4. 8x presets up to 48 dB slope
    5. 4x DSP-controlled RCA outputs (5 volts)
    6. 1x AUX input, 4x RCA inputs (low level 0.5 to 4 volts)
    7. 4x Molex high level inputs (5 to 20 volts) via BTL or SE signal detection with automatic switch-on
    8. 1x remote output
    frequency range: 10-24000 Hz
    signal-to-noise ratio ADC: 107 dB and DAC: 112 dB
    start/stop possible up to 6 volts/5 sec
    operating voltage 9.6-18 volts

    operating temperature from -40C° to +85C°

    113x38x163 mm

    4x 100(150) WRMS at 4(2) ohms + 1x 40(60) WRMS at 4(2) ohms.

    Suitable for:
    5-Channel
    Output640 watts
    Number of channels5
    Warranty2 years

  • Applicability

    Universally applicable

  • Manufacturer

    Audio System

  • Delivery time

    Expected delivery date:

    12-06-2026
