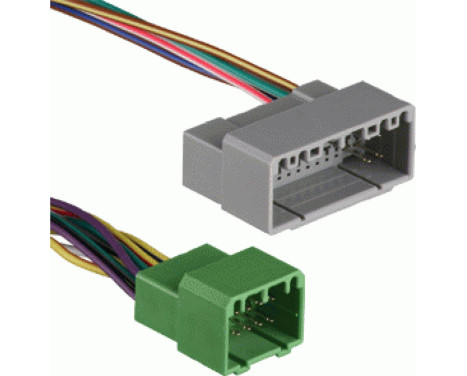

Active System Adapter Hyundai/Kia APM BYPASS (METRA)

Adapter amplifier active system bypass Hyundai / Kia
Metra 70-7305
An Active System Adapter Amp Bypass is used to directly connect factory installed speakers from an OEM sound system to an aftermarket device or to power amplifiers, bypassing the OEM amplifier.

By using this plug, retrofit installations can be installed

When connecting to an aftermarket device, the front and rear speaker outputs of the aftermarket radio are used.

Depending on the vehicle and the installed OEM sound system, several speakers such as the center speaker or subwoofer may be omitted or may need to be served by additional power amplifier channels.

Additional crossovers or multi-channel power amplifiers with corresponding adjustment options are required for fully active high-midrange sound systems installed at the factory.

Check the impedance and phase of the OEM speakers before installation.
Check operation before final assembly.
For the following application:
Bypass of OEM amplifiers
Direct connection of OEM speakers to retrofit components
Remark:

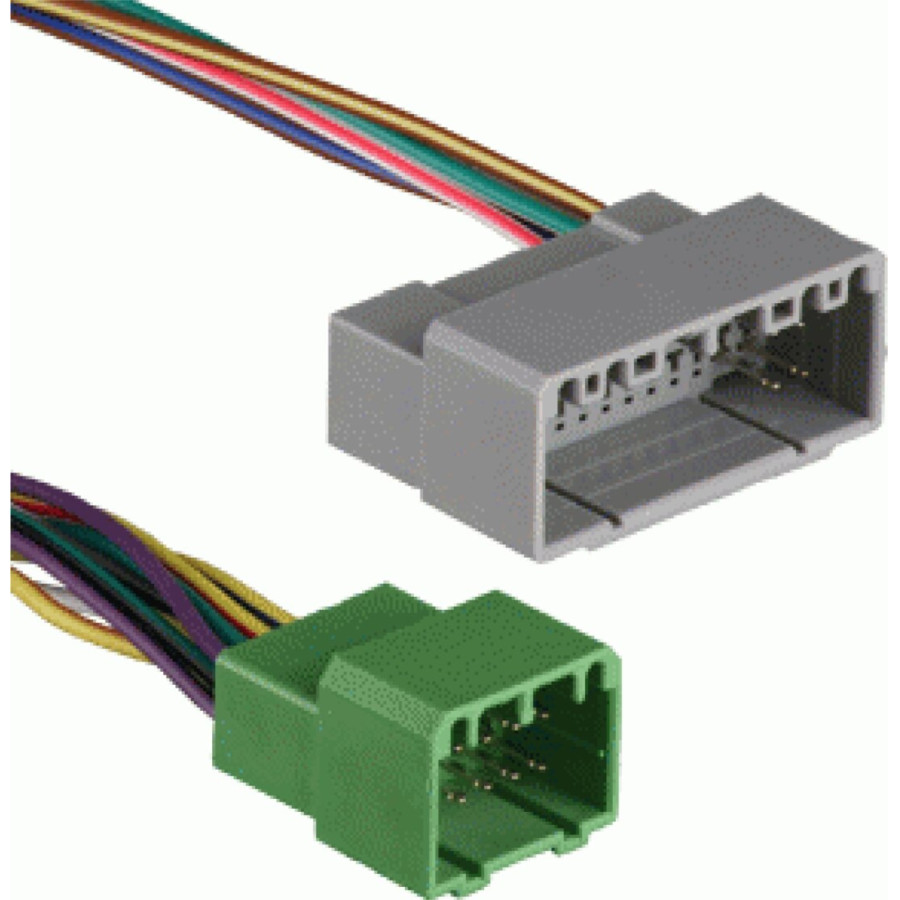

Connection: OEM speaker 26 pin / 12 pin plug > loose cable
Connection to OEM amplifier
OEM amplifier location depends on vehicle:
in the trunk
under the driver's seat
under the passenger seat
Loose cable connection depending on the car version:
white: left front speaker +
white/black: front left speaker -
gray: front right speaker +
gray/black: front right speaker -
green: left rear speaker +
green/black: left rear speaker -
violet: right rear speaker +
violet/black: right rear speaker -
yellow/black: tweeter front left -
yellow/blue: tweeter front left +
yellow/orange: tweeter front right -
yellow/red: tweeter front right +
brown/yellow: subwoofer right +
brown/blue: subwoofer right -
green/white: subwoofer left +
white/red: subwoofer left

Suitable for the following vehicles:
Hyundai
Hyundai ix35 (EL) 03/2010 - 09/2013
Hyundai ix35 (EL) 09/2013 - 07/2015
Hyundai i40 (VF) 09/2011 - 05/2015
Hyundai i40 (VF) 05/2015 - 08/2018
Hyundai i40 (VF) 10/2018 - 07/2019
Hyundai Santa Fe (DM) 12/2015 - 08/2018
Hyundai Sonata (YF) 2009 - 2014
Hyundai Tucson (TL) 04/2010 - 06/2015
Kia
Kia Carens IV (RP) 05/2013 - 12/2018
Kia Cee'd (ED) 08/2009 - 08/2012
Kia Optima (TF) 03/2012 - 10/2013
Kia Optima (TF) 10/2013 - 10/2015
Kia ProCeed (ED) 03/2011 - 02/2013
Kia Sorento (XM) 12/2009 - 10/2012
Kia Sorento (XM) 10/2012 - 03/2015
Kia Soul (AM) 09/2011 - 03/2014
Kia Soul (PS) 03/2014 - 11/2016
Kia Sportage (SL) 08/2010 - 03/2014
Kia Sportage (SL) 03/2014 - 01/2016

Suitable for:
Hyundai ix35 2010-2015
Hyundai i40 2011 -2019
Hyundai Santa Fe 2015 -2018
Hyundai Sonata 2009 - 2014
Hyundai Tucson 2010 - 2015
Kia Carens 2013 *2018
Kia Cee'd 2009 - 2012
Kia Optima 2012 - 2015
Kia ProCeed 2011 -2013
Kia Sorento 2009-2015
Kia Soul 2011 - 2016
Kia Sportage 2010-2016

---

for brand	ISO
Warranty	2 years
