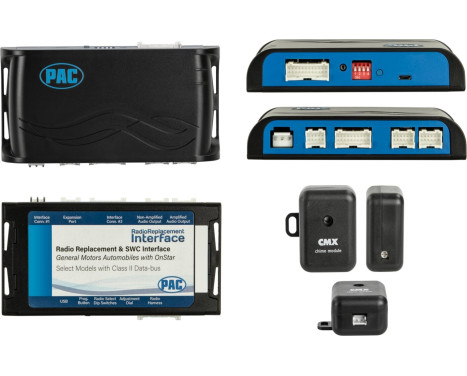

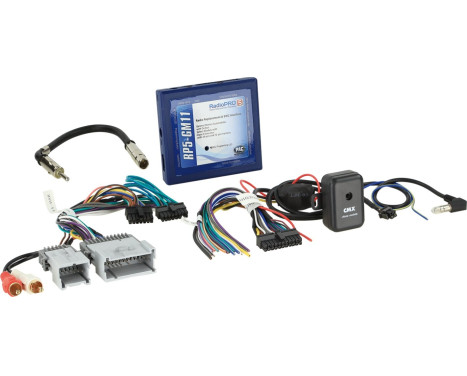

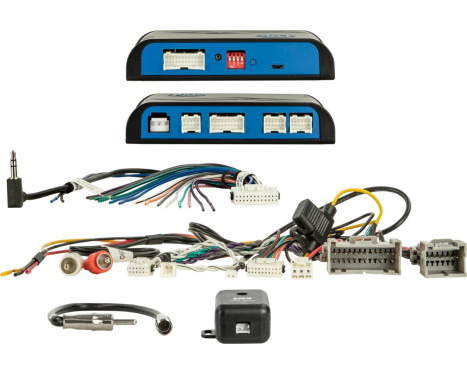

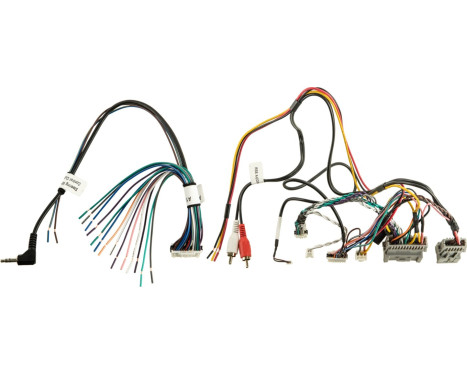

Active system adapter with CAN-BUS data interface Cadillac / Chevrolet / GMC / Hummer

Steering Wheel Control Adapter for Belly / Cadillac / Chevrolet / GMC / Hummer / Isuzu / Oldsmobil / Pointiac / Saab / Saturn

RP5-GM11
Retain the original steering wheel remote control functions,
when replacing your factory radio with an aftermarket radio.

Compare the adapter plugs shown with the plugs in your
with those in your vehicle and make sure they fit visually
optically and technically suitable.

Also check if any of the
specified original factory radios were installed in your vehicle.
NB:
CAN Bus Class II

Connection: 24Pin / 12 Pin gray GM connector
Connection: OEM Antenna > DIN(m)
Connection: OEM Rear Seat Entertainment > Cinch red/white

Vehicles with ON-Star
Vehicles with/without BOSE OEM sound system
Vehicles with/without OEM Rear Seat Entertainment
Vehicles without PDC at the front
blue/white: +12V switched Amp remote control
XZent/Zenec devices not supported
Suitable for the following vehicles:

Buick
Buick Century 2004 - 2005
Buick Lacrosse 2005-2007
Buick Rainier 2004 - 2007
Buick Rendezvous 2003 - 2007
Buick Terraza 2005 - 2007
Cadillac
Cadillac Escalade 2003 - 2006
Cadillac Escalade ESV 2003 - 2006
Cadillac Escalade EXT 2003 - 2006
Chevrolet
Chevrolet Avalance 2003 - 2006
Chevrolet Cavalier 2000 - 2005
Chevrolet Colorado 2004 - 2011
Chevrolet Corvette 2005 - 2013
Chevrolet ExpressFrom 2004 - 2007
Chevrolet Impala 2000 - 2005
Chevrolet Malibu 2001 - 2003
Chevrolet Monte Carlo 2000 - 2005
Chevrolet S-10 Pickup 2003 - 2004
Chevrolet Silverado 2003 - 2006
Chevrolet Silveradeo Classic 2007
Chevrolet SSR 2003 - 2006
Chevrolet Suburban 2003 - 2006
Chevrolet Tahoe 2003 - 2006
Chevrolet Trailblazer 2002 - 2009
Chevrolet Uplander 2005 - 2008
Chevrolet Venture 2003 - 2005
GMC
GMC Canyon 2004 - 2011
GMC Enoy 2002 - 2009
GMC Savana 2003 - 2007
GMC Sierra 2003-2006
GMC Sierra Classic 2007
GMC Yucon 2003 - 2006
GMC Yucon XL 2003 - 2006

Hummer
Hummer H2 2003-2007
Hummer H3 2005 - 2010
Hummer H3T 2009 - 2010
Isuzu
Isuzu Ascender 2003 - 2008
Oldsmobile
Oldsmobile Alero 2001 - 2004
Oldsmobile Bravada 2002 - 2004
Oldsmobile Silhouette 2000 - 2004
Pointiac
Pointiac Aztek 2001 - 2005
Pointiac Grand AM 2001 - 2005
Pointiac Grand Prix 2004 - 2008
Pointiac Montana 2000-2006
Pointiac Sunfire 2000-2005
Saab
Saab 9-7X 2005 - 2008
Saturn
Saturn Relay 2005 - 2007

The following signals are offered:

Handbrake signal
Reverse signal
Speed signal
Inflammation with RAP
LFB
OEM Rear Seat Entertainment
BOSE OEM sound system (BOSE Premium sound system fader not supported)
Warning tones
PDC at the back
On-Star
Optional:

Conversion adapter ISO(f) power/speaker > loose cable: 1432-02

Suitable for:

---

Warranty

2 years
