BlackVue DR770 Box Pro 1CH 128GB

The DR770X Box Pro is a flexible, modular system that operates as a 1CH dashcam by default but can easily be expanded to a 2CH or 3CH system. Customize your set entirely to your liking with standard cameras, infrared cameras, or waterproof truck cameras.

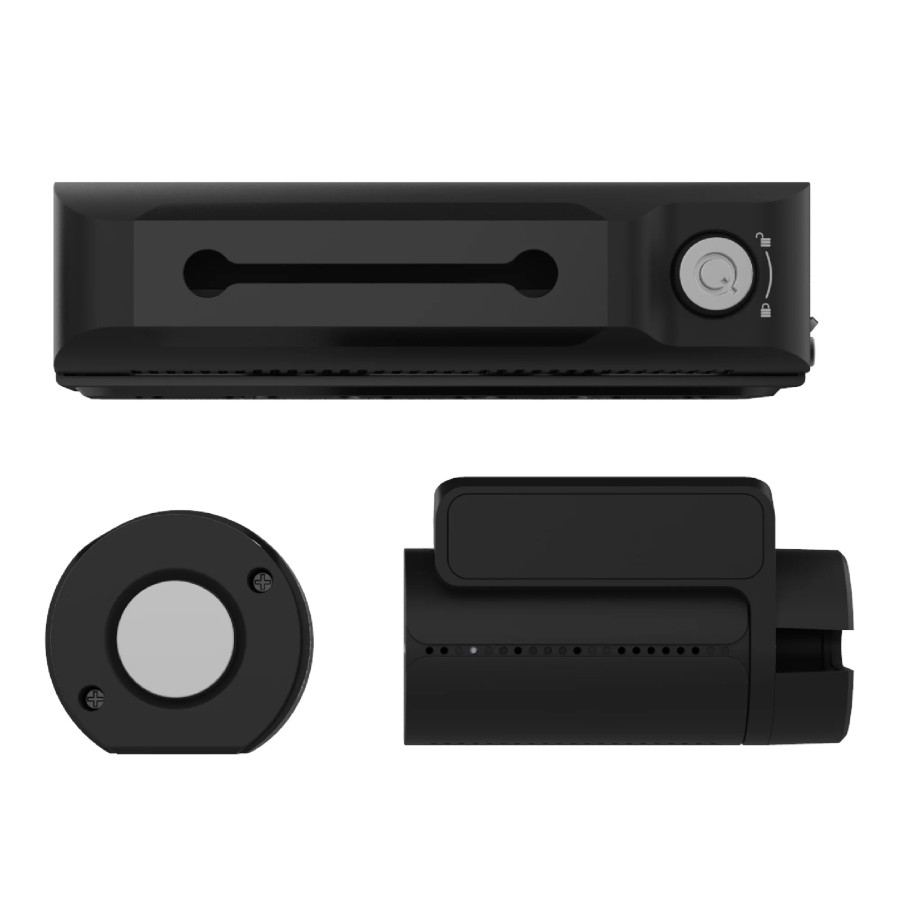

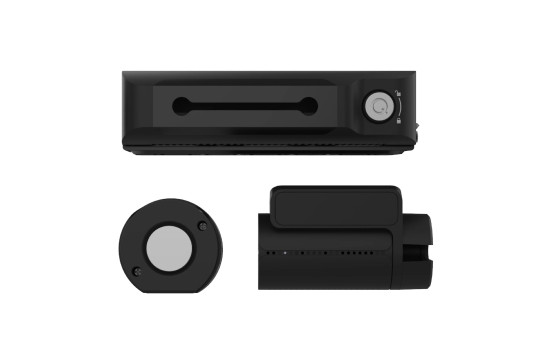

The DR770X Box Pro is equipped with a high-quality Sony Starvis sensor, a wireless SOS button, a GPS antenna, and various other features. All recordings are securely stored in the 'box', which can be placed discreetly in the vehicle and locked with a padlock.

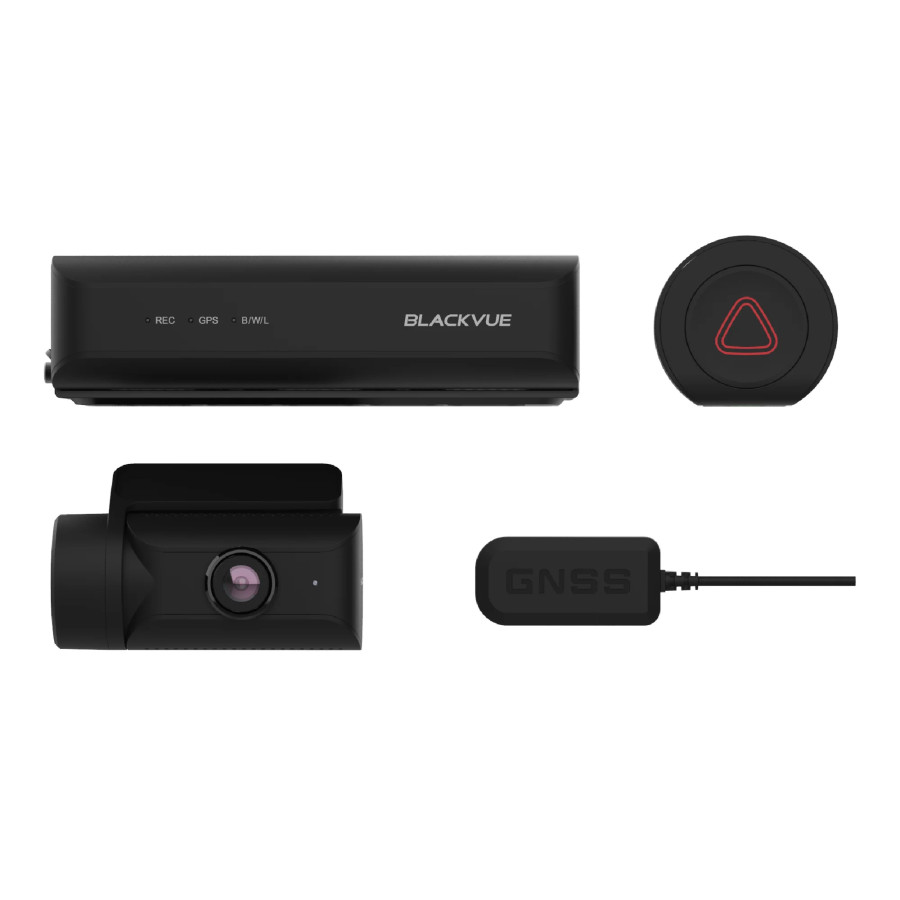

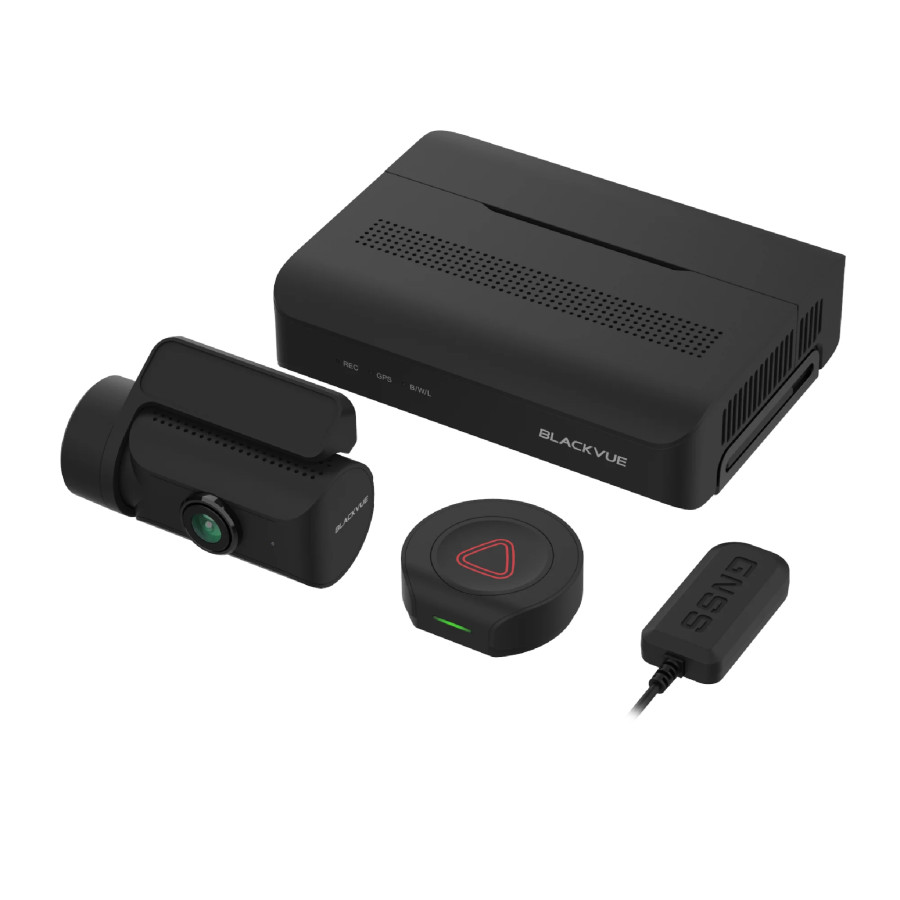

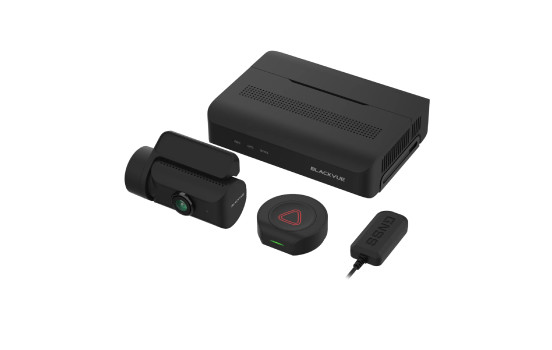

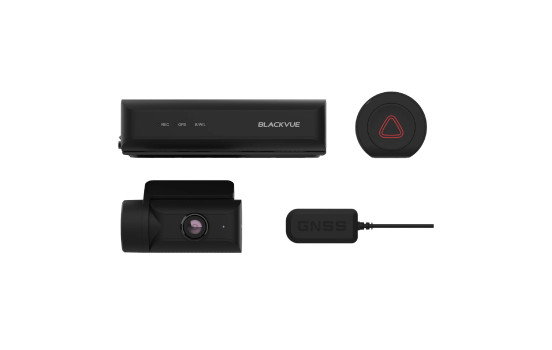

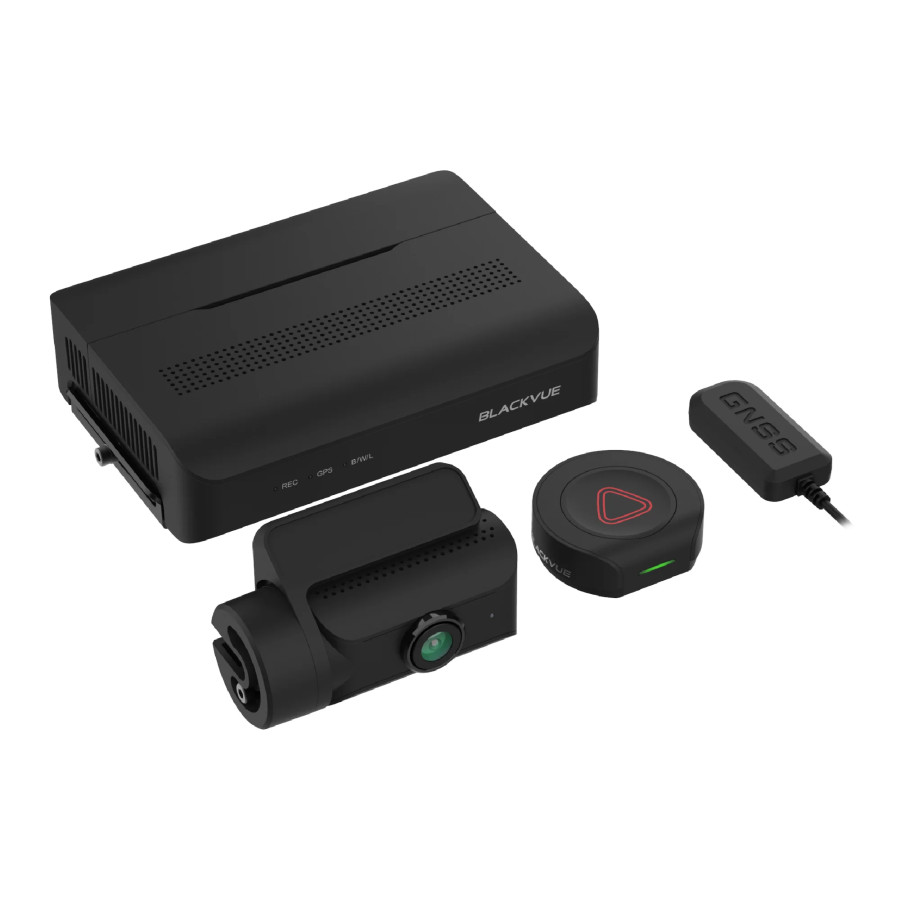

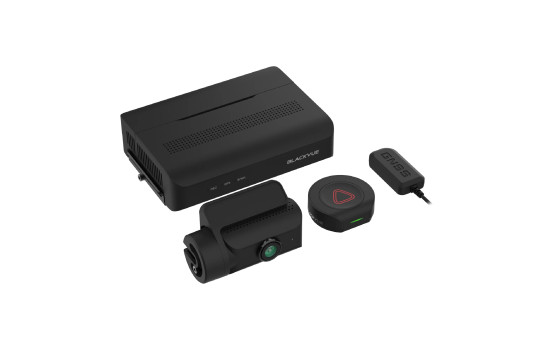

The basic DR770X Box Pro comes with one standard front camera.

Model name: DR770X Box Pro
Color / Size / Weight: Secure box: Black / Length 130mm x width 101mm x height 33mm / 209g
Front camera: Black / Length 62.5mm x width 34.3mm x height 34mm / 43g
Rear camera: Black / Length 63.5mm x width 32mm x height 32mm / 33g
Rear Camera Truck: Black / Length 70.4mm x width 56.6mm x height 36.1mm / 157g
Interior IR: Black / Length 63.5mm x 32mm x width 32mm, height 32mm / 34g
EB-1 (wireless button): Black / Length 45.2mm x width 42mm x height 14.5mm / 23g
Memory: Micro SD card (64GB / 128GB / 256GB / 512GB)
Recording modes: Normal recording, 'Event' recording (when impact is detected in normal and parking mode), manual recording, and parking mode (when motion is detected)* When using a Hardwiring Power Cable, ACC+ will activate parking mode. When using other methods, the G-sensor will activate parking mode.
Camera: Front Camera: STARVIS CMOS Sensor (Approx. 2.1M Pixel)
Rear Camera / Rear Camera Truck: STARVIS CMOS Sensor (Approx. 2.1M Pixels)
Interior IR: STARVIS CMOS Sensor (Approx. 2.1M Pixel)
Viewing angle: Front camera: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear camera: Diagonal 139°, Horizontal 116°, Vertical 61°
Truck Rear Camera: Diagonal 116°, Horizontal 97°, Vertical 51°
Interior IR: Diagonal 180°, Horizontal 150°, Vertical 93°
Resolution / Frame rate: Full HD (1920×1080) @ 60FPS
Full HD (1920×1080) @ 30 FPS
Frame rate may vary while using WiFi streaming
Video codec: H.264 (AVC)
Image quality: Extreme: 16 + 10 + 10 Mbps
Highest: 12 + 10 + 10 Mbps
High: 10 + 8 + 8 Mbps
Normal: 8 + 6 + 6 Mbps
Video compression mode: MP4
WiFi: Built-in (802.11 bgn)
GNSS: External (Dual Band: GPS, GLONASS)
LTE: External (Optional)
Microphone: Built-in
Speaker (Voice accompaniment): Built-in
LED indicators: Secure box: Recording LED, GPS LED, B/W/L (Bluetooth/WiFi/LTE) LED, front security LED
Front camera: Front and rear security LED
Rear camera: Front and rear security LED
Truck Rear Camera: –
Interior IR: Front and rear safety LED
EB-1 (wireless button): Operational / Low battery LED
Wavelength of IR camera light: Truck Rear Camera: 940nm (6 Infrared (IR) LEDs)
Interior IR: 940nm (2 Infrared (IR) LEDs)
Button: EB-1 button: Press the button: Start manual recording
Sensor: 3-axis accelerometer
Backup battery: Built-in supercapacitor
Input power: DC 12V-24V (3-pin DC plug (ø3.5d x ø1.1) to cables (Black: GND / Yellow: B+ / Red: ACC)
Power consumption Normal mode (GPS on/3CH): Avg. 750mA/12V
Parking mode (GPS off/3CH): Avg. 600mA/12V
*Approx. 40mA increase in current when the interior camera IR LEDs are on. *Approx. 60mA increase in current when the truck rear camera IR LEDs are on. *Actual power consumption may vary depending on operating conditions and the environment.
Operating temperature: -20°C – 70°C
Storage temperature: -20°C – 80°C
Shutdown at high temperature: Approx. 75°C
Certificates: Front cameras: FCC, CE, Telec, IC, UKCA, RoHS, WEEE, RCM
Rear cameras: FCC, IC, CE, UKCA, RCM, RoHS, WEEE, KC
Software: BlackVue App *Android 8.0 or higher, iOS 13.0 or higher
BlackVue Viewer *Windows 7 or later, Mac Sierra OS X (10.12) or later
BlackVue Web Viewer *Chrome 71 or higher, Safari 13.0 or higher
Other features: Adaptive 'Format Free' File Management System

Suitable for:
Dashcam

---

application	Dashcam
Fastening	Sticky attachment
Camera	Simplex
resolution	1080P
Shock sensor	Yes
Wifi connection	Yes
Storage capacity [GB]	128GB
Warranty	2 years
