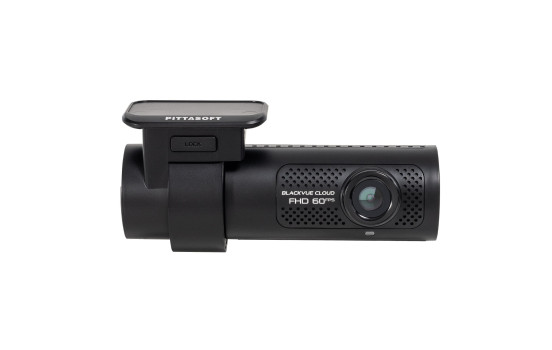

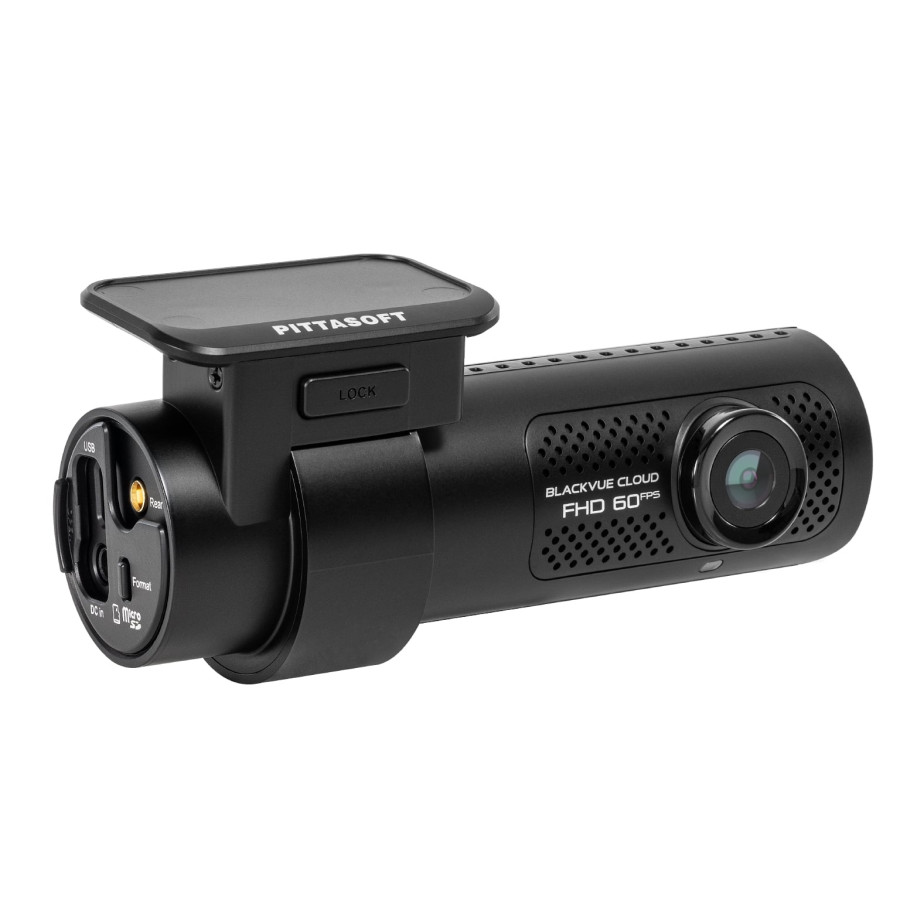

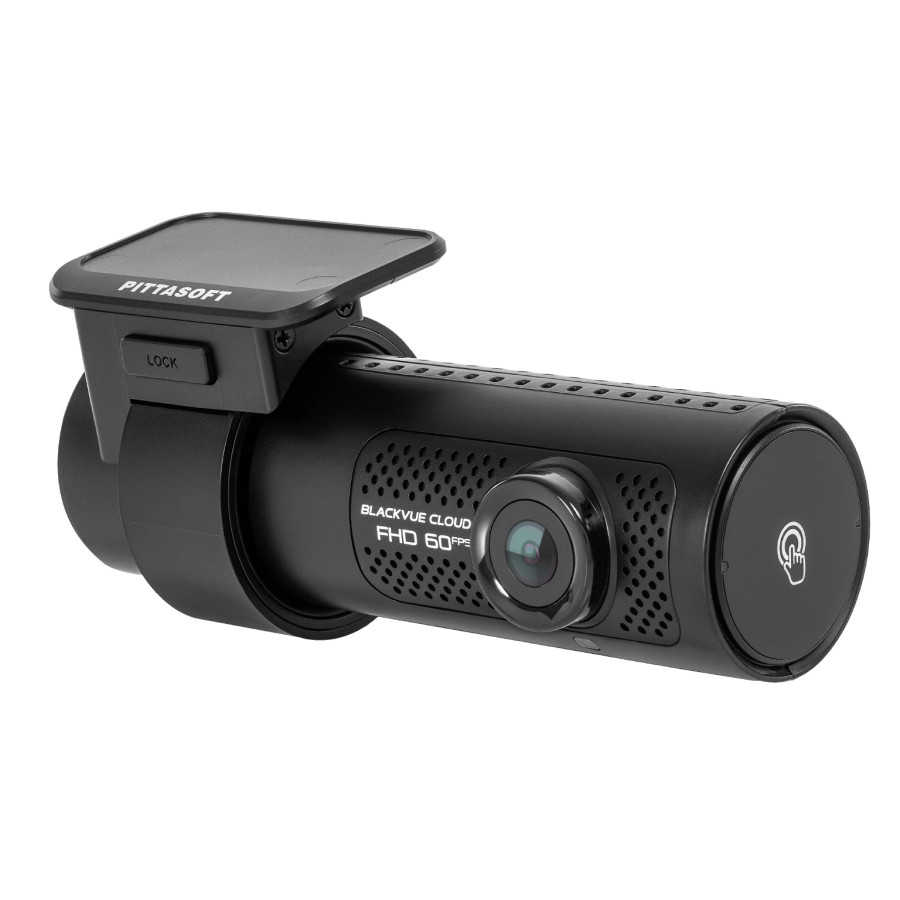

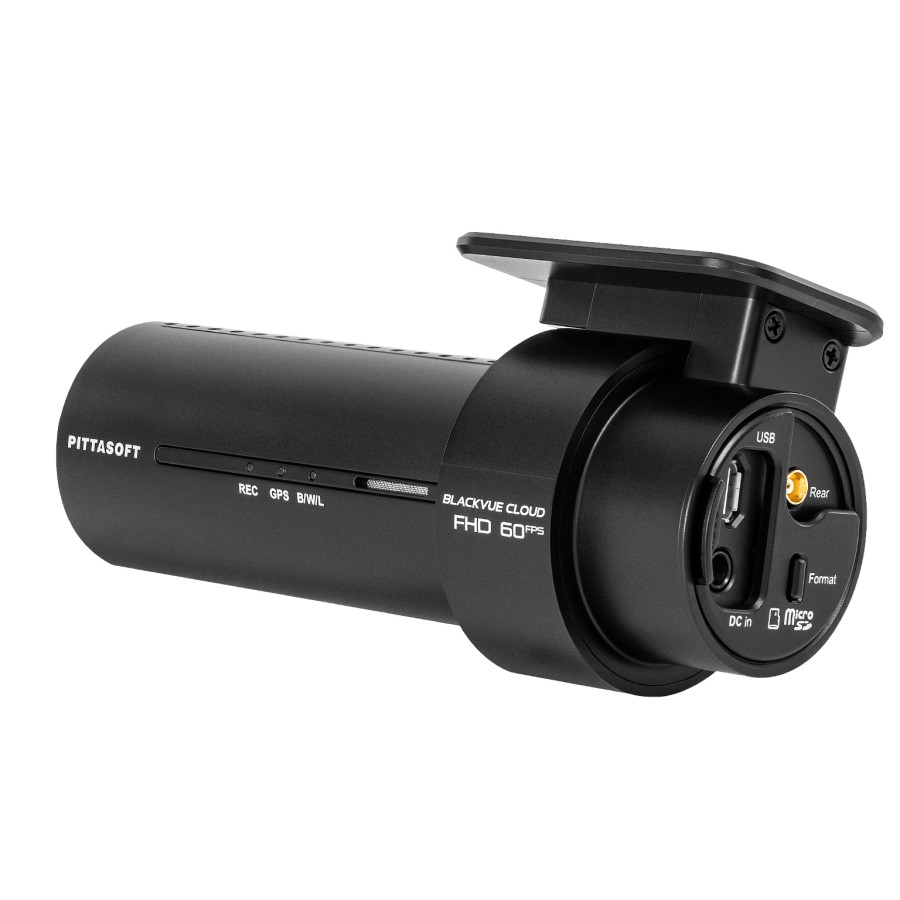

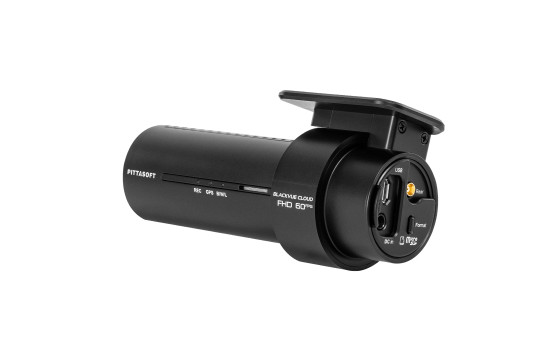

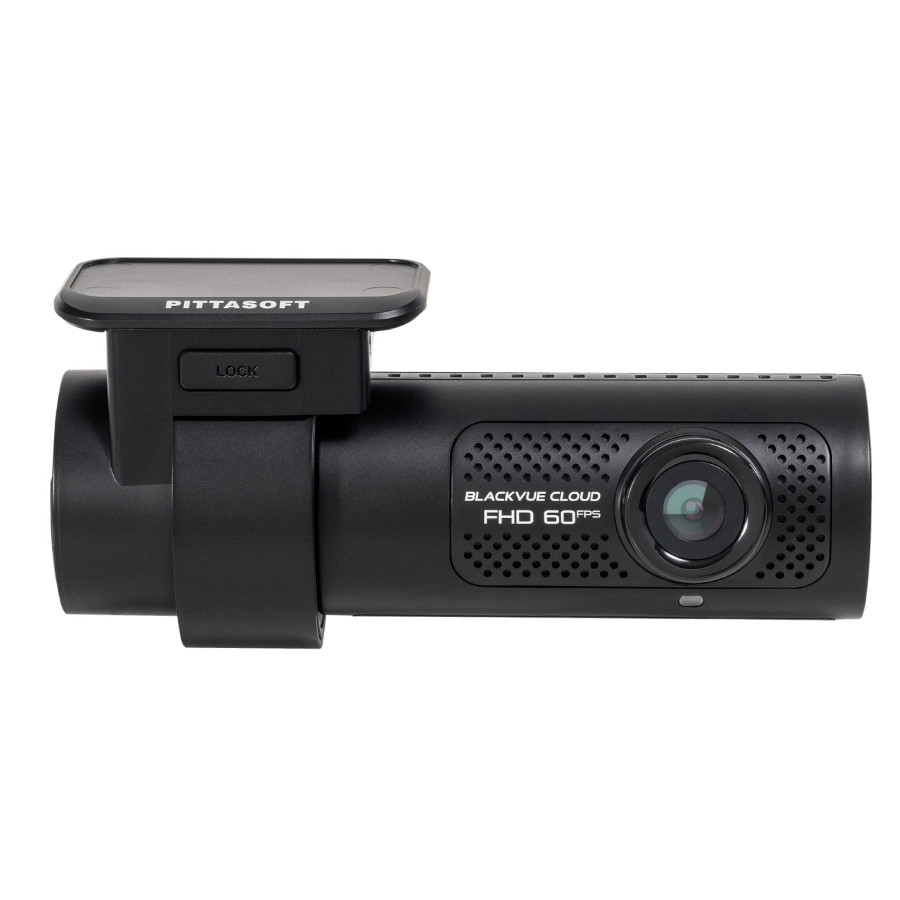

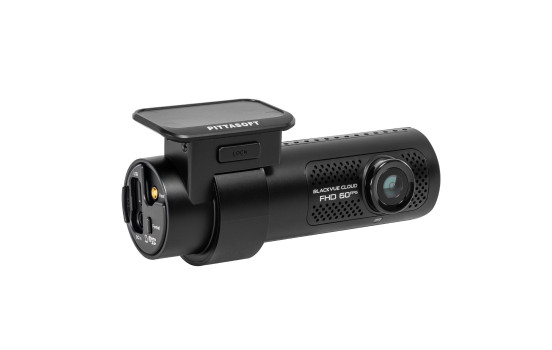

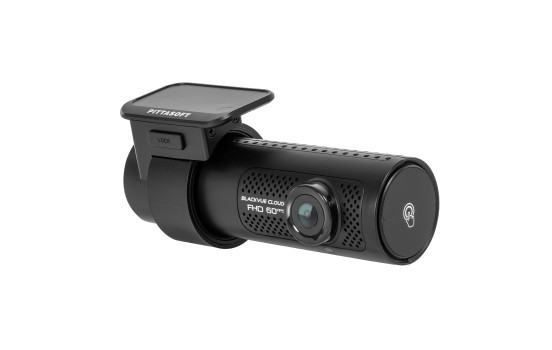

BlackVue DR770X-1CH II Full HD Cloud Dashcam 64GB

Rock-solid performance in a stylish design
The DR770X-1CH II is the new Full HD 1-channel Cloud dashcam from BlackVue.

The camera features a Full HD Sony STARVIS sensor. Thanks to this sensor, it captures images of unparalleled quality in all lighting and weather conditions.

Model name: DR770X-1CH II
Channel: 1CH (expandable to 2CH)
Highlights: Full HD 1080p, Wi-Fi, GPS, Cloud, Sony sensor, External LTE Module (Optional)
Product dimensions: Black / Width 118.5mm x Height 36mm / 104g
Storage: micro SD card up to 256GB
Recording modes: Normal recording, Event recording (when a collision is detected in normal mode and in parking mode), Manual recording and parking recording (when movement is detected).
When using a fixed power cable, ACC+ activates the parking mode. When using other methods, the G-sensor activates the parking mode.
Parking mode: YES (with 3-wire hardwiring cable – included)
Parking mode: 'Event' voice notifications YES
Image sensor: Sony STARVIS™ CMOS Sensor (Approx. 2.1 megapixels)
Viewing angle: Diagonal 139°, Horizontal 116°, Vertical 61°
Resolution & frames per second: Full HD (1080 x 1920) @ 60fps
The frame rate may vary while streaming via Wi-Fi.
Video Codec: H.264 (AVC)
Image quality and bitrate front/rear: Highest (extreme): 25 Mbps
Highest: 12 Mbps
High: 10 Mbps
Normal: 8 Mbps
Format Free: YES (Adaptive)
Protection against overwriting 'event' recordings: YES (up to 50 files)
SD card error warning: YES
Planned restart: YES
Video file: MP4
Wi-Fi: Built-in (802.11 abgnac)
Cloud Compatible: YES
GPS: Built-in (Dual Band: GPS, GLONASS)
Microphone: Built-in
Speaker: Built-in
Impact Sensor: 3-axis accelerometer
LED Indicators: Recording LED, GPS LED, B/W/L (Bluetooth / Wi-Fi / LTE) LED, front security LED
Button: Format Button: Press and hold the format button for 5 seconds and release the button after a beep. Then press and hold again for 5 seconds and release the button after a beep to format the micro SD card.
Touch Sensor: Pressing the 'Touch sensor' activates manual recording, depending on the firmware settings.
Operating temperature: -20°C - 80°C
Storage temperature: -20°C - 80°C
High temperature shutdown: At approximately 80°C
Backup battery: Built-in supercapacitor
Input: DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to wires (Black: GND / Yellow: B+ / Red: ACC)
Power consumption per hour Normal mode (GPS on/1CH): avg. 240mA /12V
Parking mode (GPS off/1CH): avg. 190mA /12V
Actual power consumption may vary depending on operating conditions and the environment.
Certificates: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC
Software: BlackVue Viewer
* Windows 7 or later, Mac Sierra OS X (10.12) or later
BlackVue Web Viewer
* Chrome 71 or higher, Safari 13.0 or higher
App: BlackVue App
* Android 8.0 or higher, iOS 13.0 or higher

Other: Adaptive format-free file management system
Bluetooth: Built-in (V2.1+EDR/4.2)
LTE: External (Optional)

Suitable for:
Dashcam

---

Fastening	Sticky attachment
Camera	Simplex
resolution	1080P
Shock sensor	Yes
Wifi connection	Yes
Storage capacity [GB]	64GB
Warranty	2 years
