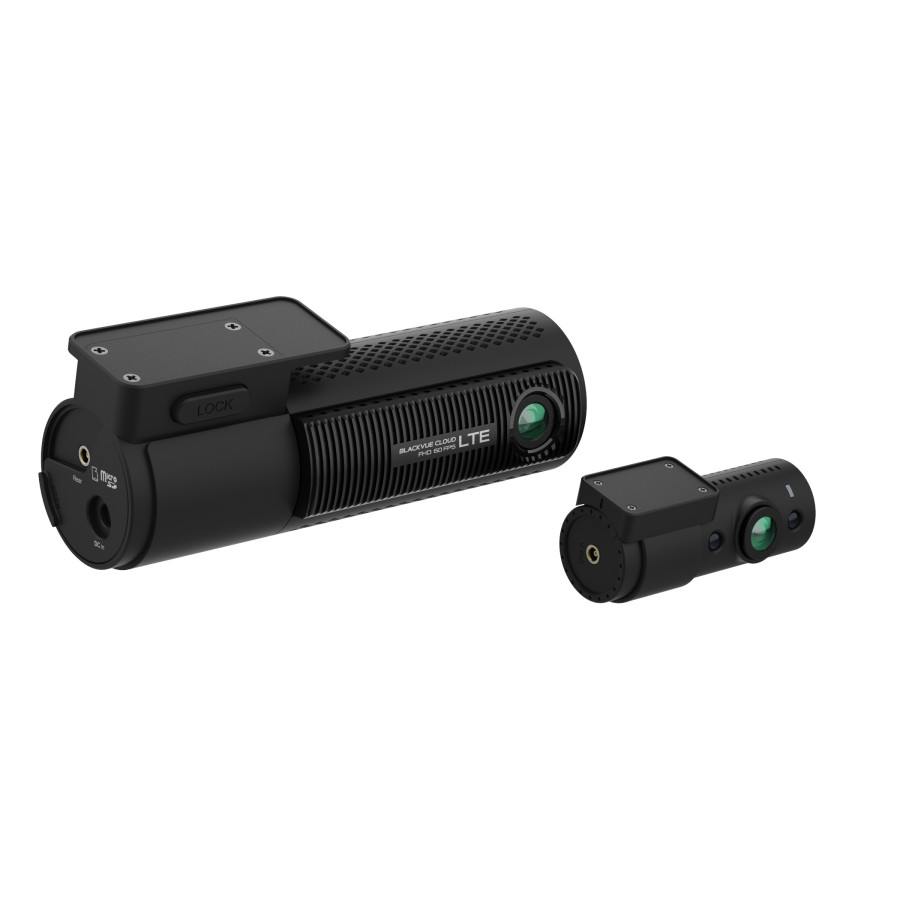

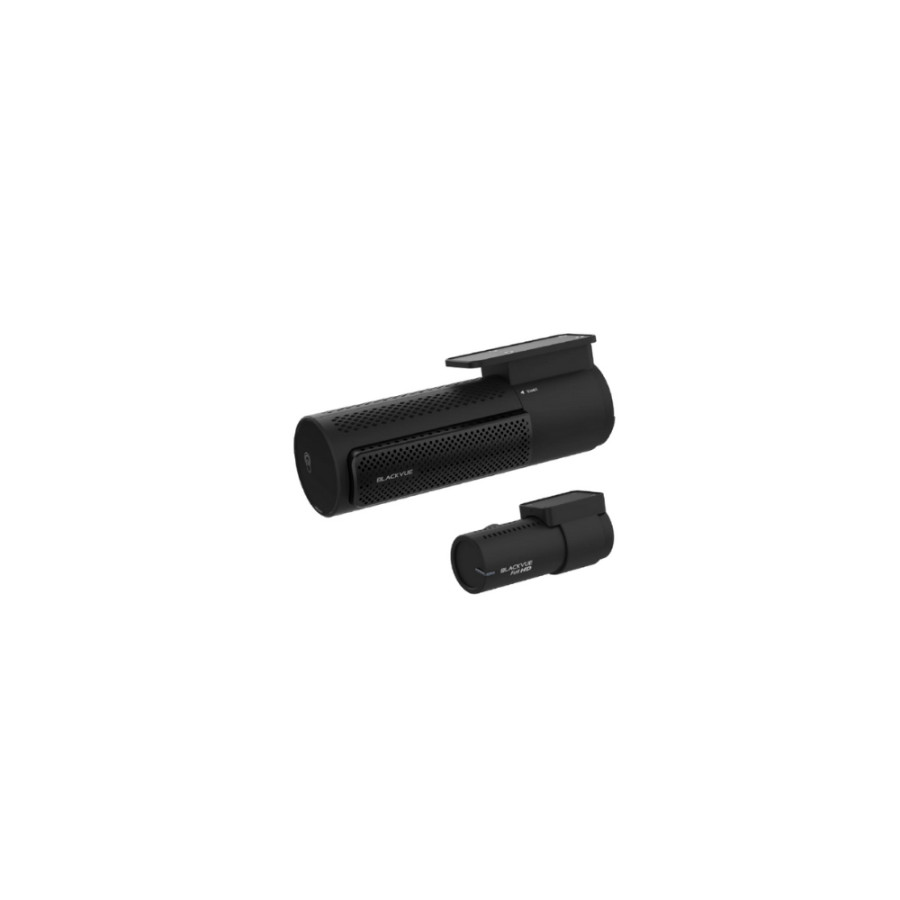

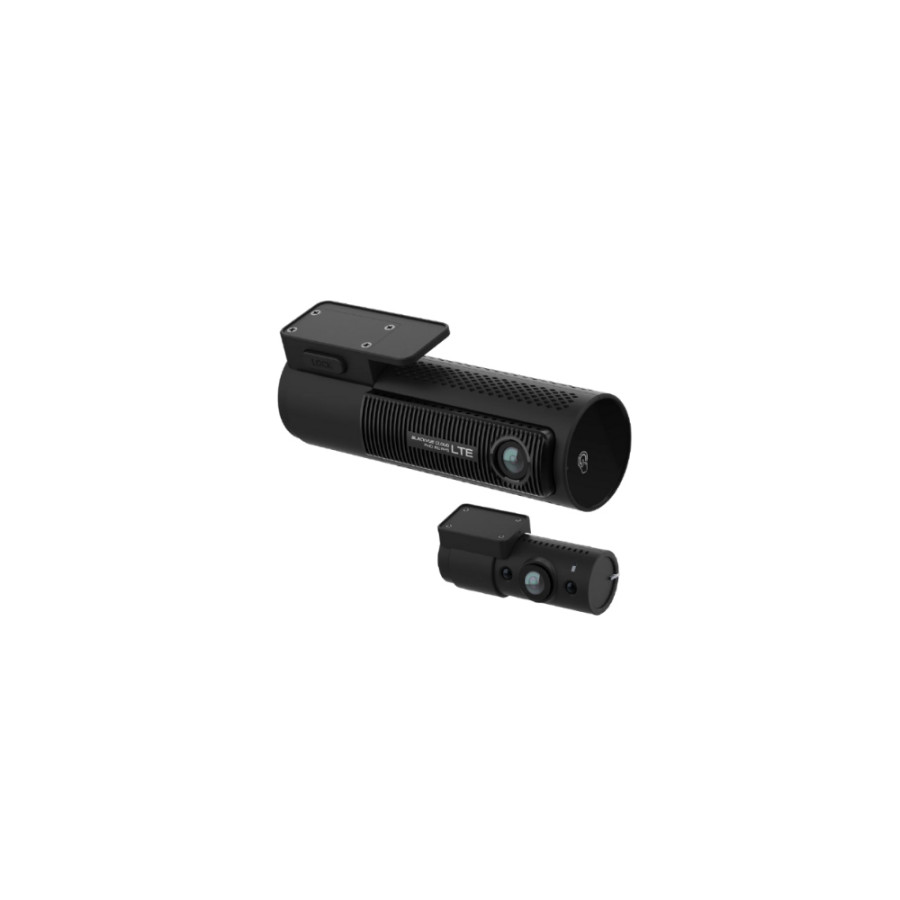

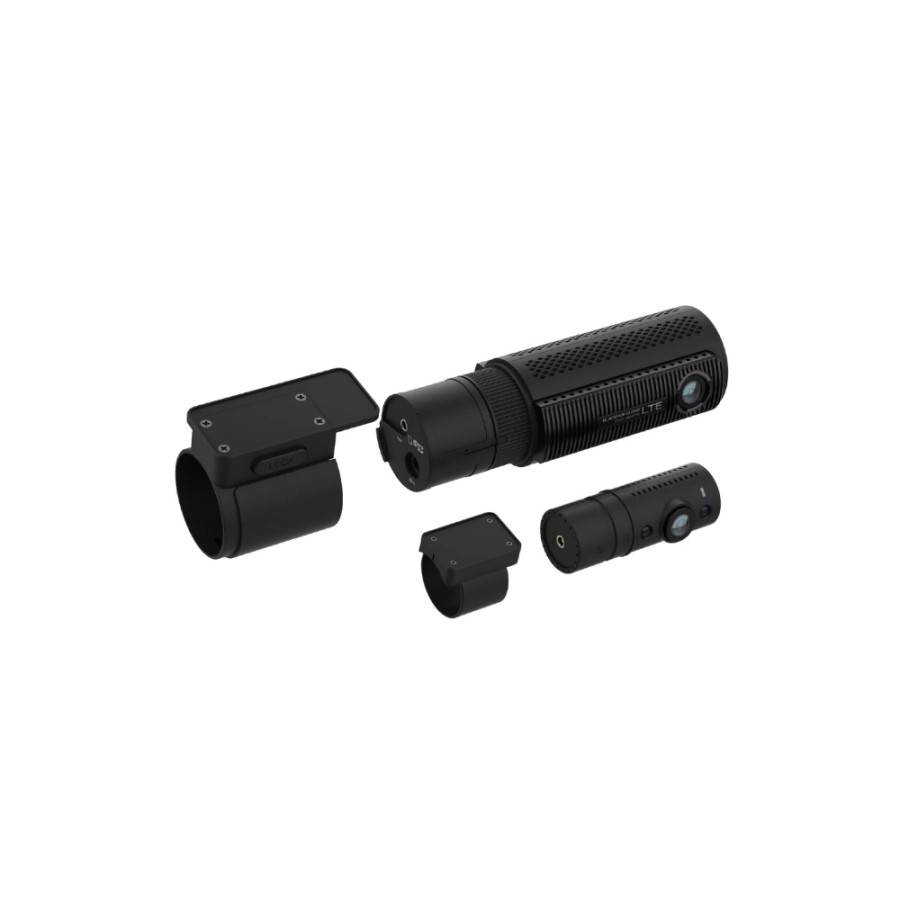

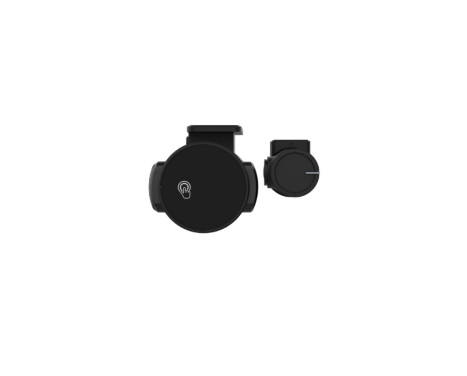

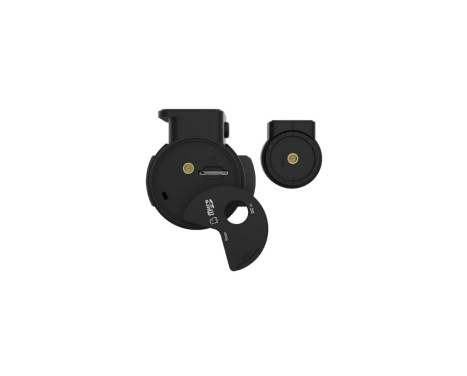

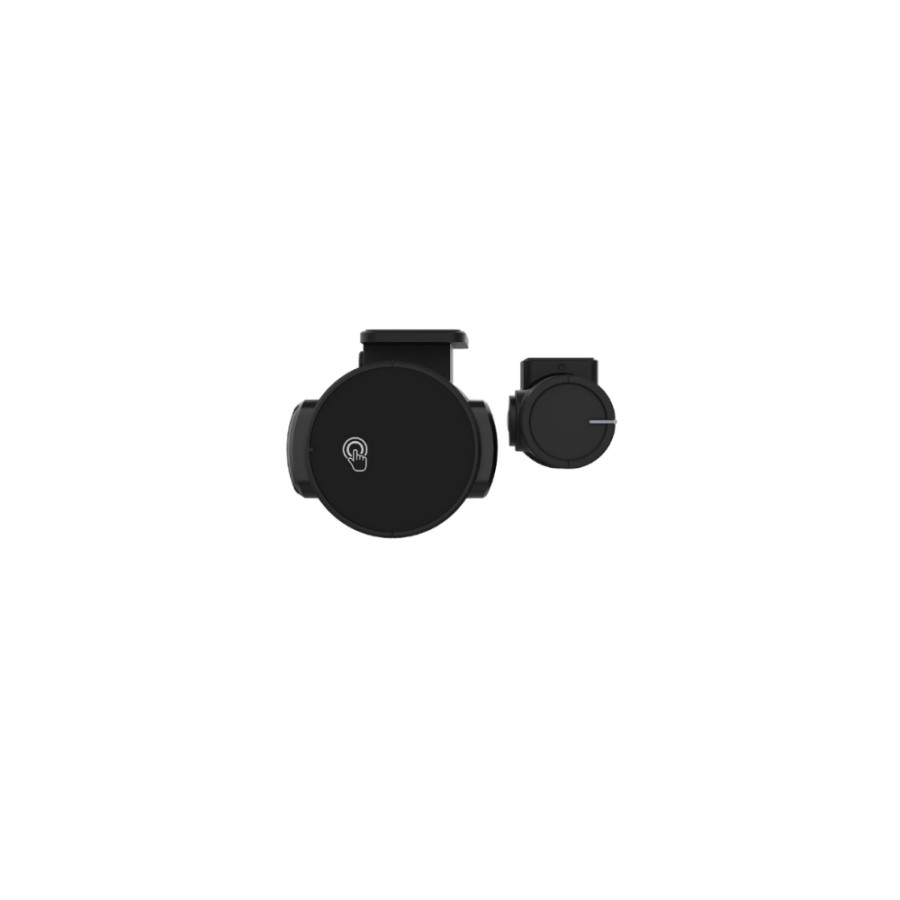

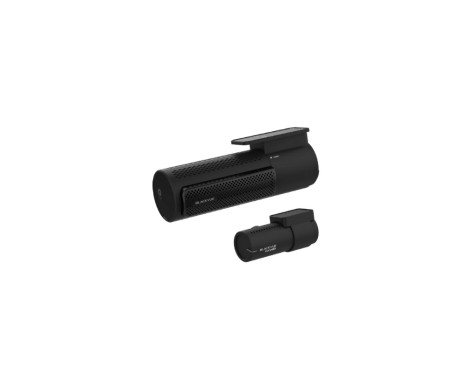

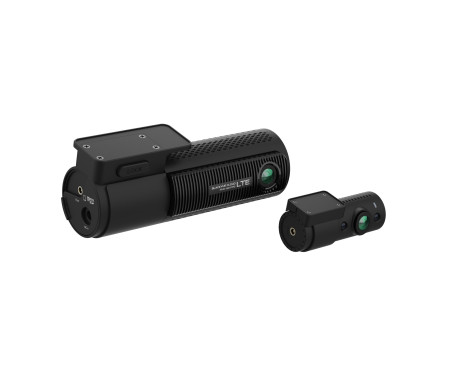

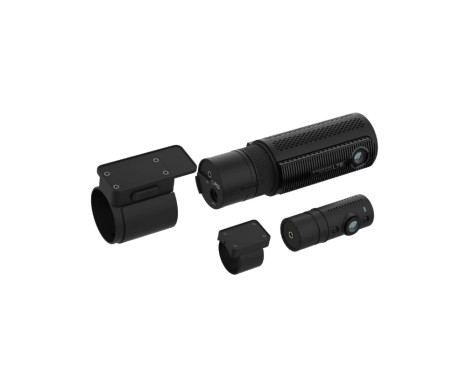

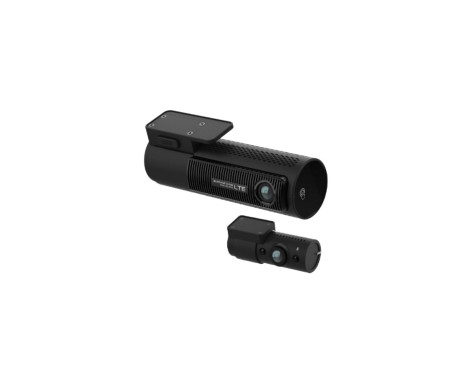

BlackVue DR770X-2CH IR LTE Full HD Cloud Dashcam 128GB

Specifications PLEASE NOTE TAXI DASHCAM

General:
Model: DR770X-2CH IR LTE Plus
Number of recording channels: 2 (front and rear)
Color: Black
Dashcam size:
- Front camera: 137.6 x 43 mm
- Rear camera: 67.4 x 25 mm
Weight
- Front camera: 166 grams
- Rear camera: 25 grams
Recording mode:
- Normal
- Event
- Parking mode (with BlackVue power module)
Certificates: FCC, CE, RoHS, WEEE

Image and recording quality:
Camera image sensor (front and rear): Sony StarvisTM CMOS Sensor (2.1 megapixel)
Viewing angle (front and rear): Diagonal 139°, horizontal 116° and vertical 61°
Resolution: Front/Rear Camera
Full HD (1920×1080) @60fps / Full HD (1920×1080) @30fps
* Frame rate may vary during Wi-Fi streaming.
Video codec: H.264 (AVC)

Storage:
Storage: MicroSD card (available in 64, 128 and 256GB)
Event recording security: Yes (up to 50 recordings)
Adaptive Format-Free storage system: Yes
Scheduled restart: Yes
MicroSD card error messages: Spoken message via dashcam
Video format: MP4

Dashcam Features
GPS: Built-in
Microphone: Built-in
Speaker: Built-in
Impact sensor: Built-in (3-axis acceleration sensor)
LED indication:
- Front camera: recording (normal recording is orange, event is red and parking mode is green), GPS (blue LED) and Wi-Fi/LTE (green LED), front security LED (white)
- Rear camera: safety LED (white)

Multifunction button:
- Turn Wi-Fi on/off – press 1x.
- Format SD card – press and hold the button until the voice guide starts speaking, then press and hold the button again for a few seconds.
All actions are confirmed by a Dutch spoken message.
Distance sensor:
- Audio recording on/off or start manual recording. Can be deactivated.
All actions are confirmed by a Dutch spoken message.

Connectivity
Wi-Fi: Built-in (802.11n (2.4 ~ 2.4835 GHz))
Cloud compatibility: Yes
App: BlackVue App works with:
- Android 4.4.2 or higher
- iOS 9.0 or later

Computer Software: BlackVue Viewer works with:
- Windows XP or later
- Mac Yosemite OS X (10.10) or later
Other: Built-in 4G LTE module. Compatible with Nano SIM card (SIM card not included).

Power supply
Backup power: Built-in super capacitor
Power supply: DC 12V – 24V (DC Plug (Ø3.5 x Ø1.35), MAX 1 A/12 V)
Power consumption:
- Avg. 350mA (4.2W at 12V, with GPS on and Wi-Fi off)
- Avg. 300mA (3.6W at 12V, with GPS and Wi-Fi off)
* Actual power consumption may vary under certain conditions
Operating temperature: -20 °C - 70 °C
Storage temperature: -20 °C - 70 °C
Temperature cut-off protection: At approximately 80?
Rear camera connection: Coax cable

Suitable for:
Dashcam

---

Fastening	Sticky attachment
Memory	128GB
Camera	Simplex
resolution	Full HD
Shock sensor	Yes
Wifi connection	Yes
Warranty	2 years
