BlackVue DR770X-2CH LTE Full HD Cloud Dashcam 256GB

General
Model: DR770X-2CH LTE

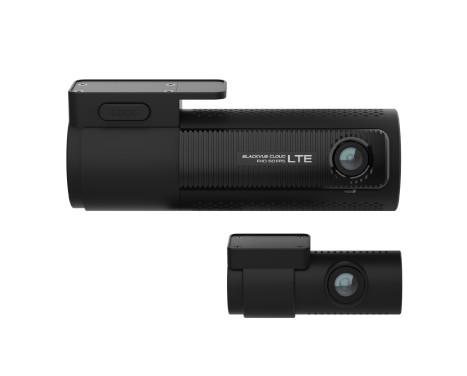

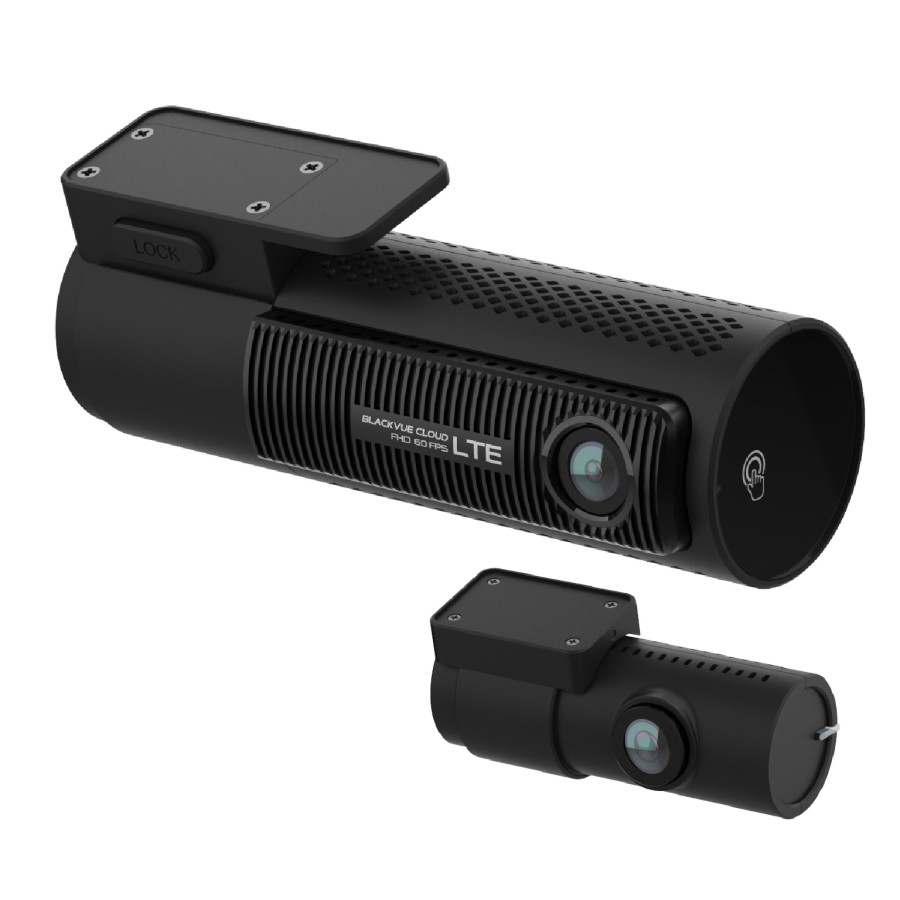

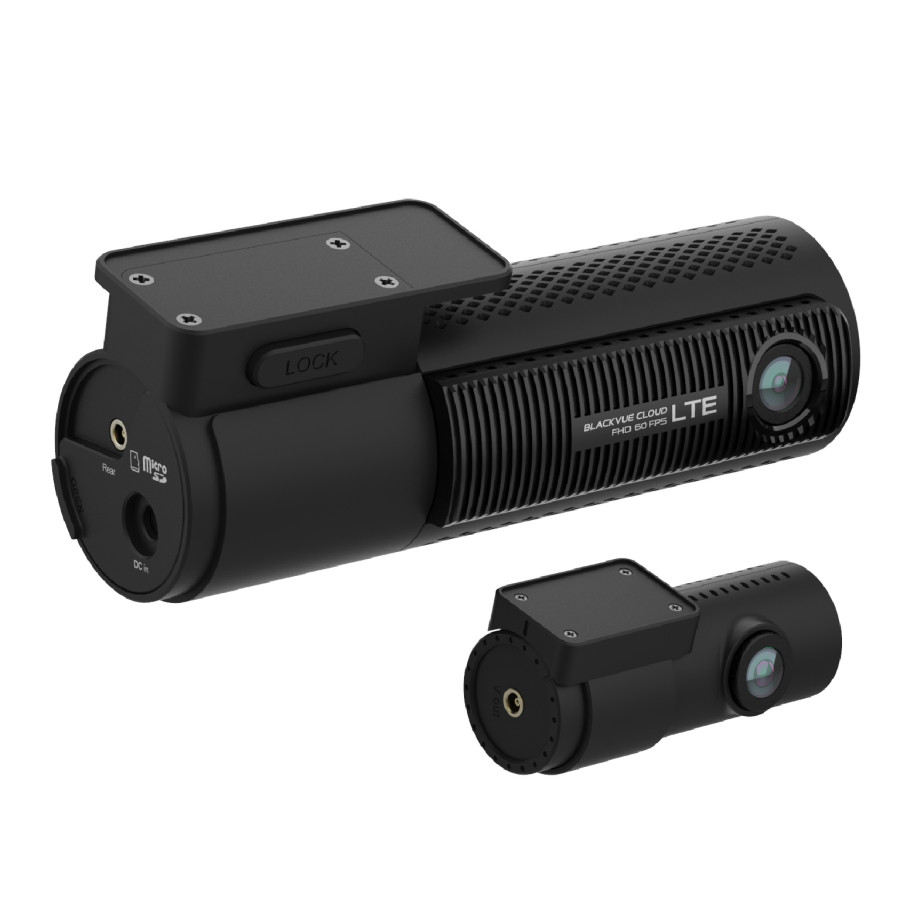

Number of recording channels: 2 (front and rear)
Colour black
Dashcam format: Front camera: 137.6 x 43 mm
Rear camera: 67.4 x 25 mm

Weight: Front camera: 166 grams
Rear camera: 25 grams

Recording mode: Normal
Event

Parking mode (with BlackVue power module)

Certificates: FCC, CE, RoHS, WEEE


Image and recording quality

Camera image sensor (front and rear): Sony StarvisTM CMOS Sensor (2.1 megapixel)
Viewing angle (front and back): Diagonal 139°, horizontal 116° and vertical 61° Resolution Front / rear camera: Full HD (1920×1080) @60fps / Full HD (1920×1080) @30fps

* The frame rate may vary during Wi-Fi streaming.

Video codec: H.264 (AVC)

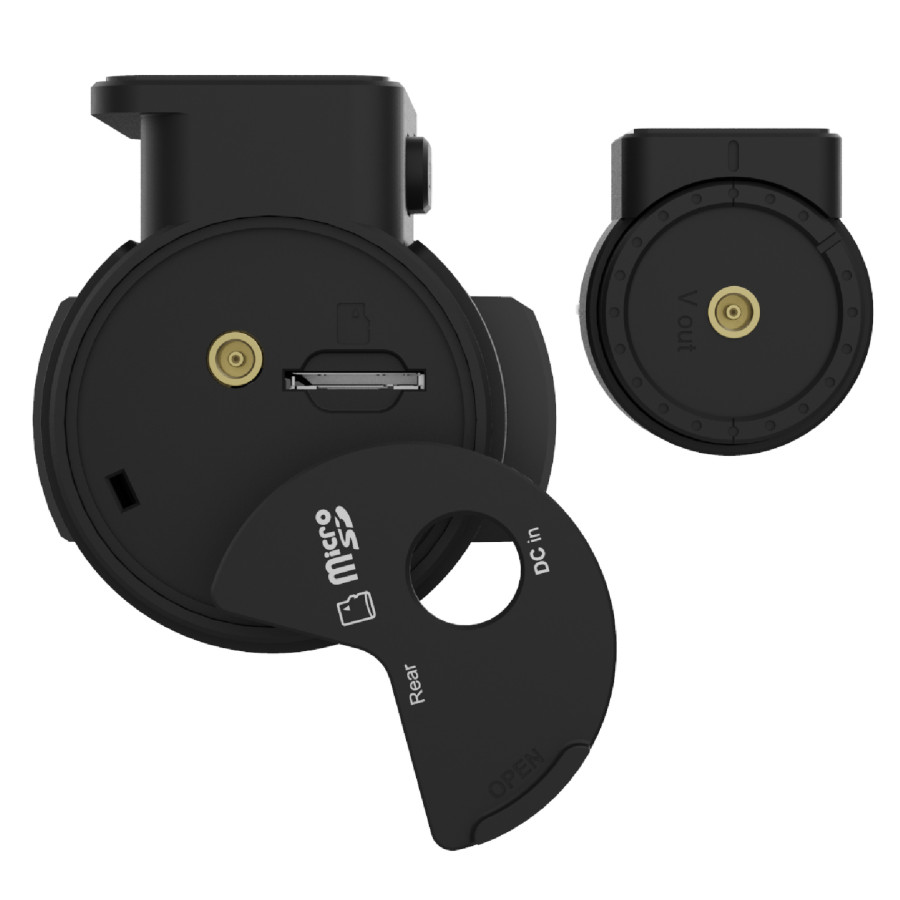

Storage: MicroSD card (available in 64, 128 and 256GB)
Event recording security: Yes (up to 50 recordings)
Adaptive Format-Free Storage System: Yes
Scheduled restart: Yes
MicroSD card error messages: Voice message via dashcam
Video format: MP4


Dashcam features

GPS: Built-in
Microphone: Built-in
Speaker: Built-in
Impact sensor: Built-in (3-axis acceleration sensor)
LED indication: Front camera: recording (normal recording is orange, event is red and parking mode is green), GPS (blue LED) and Wi-Fi/LTE (green LED), front security LED (white)
Rear camera: Safety LED (white)

Multifunction button: Turn Wi-Fi on/off – press once.
SD card Format: Press and hold the button until the voice guidance starts talking, then press and hold the button again for a few seconds.

All actions are confirmed by a Dutch voice message.

Remote sensor: Audio recording on/off or start manual recording. Can be deactivated.
All actions are confirmed by a Dutch voice message.



Connectivity

Wi-Fi: Built-in (802.11n (2.4 ~ 2.4835 GHz))
Cloud compatibility: Yes BlackVue App works with: Android 4.4.2 or higher iOS 9.0 or higher

Computer software BlackVueViewer works with:
Windows XP or higher

Mac Yosemite OS X (10.10) or later

Other: Built-in 4G LTE module. Compatible with Nano SIM card (SIM card not included).


Power supply

Backup power: Built-in super capacitor
Power supply: DC 12V – 24V (DC Plug (Ø3.5 x Ø1.35), MAX 1 A/12 V)
Power consumption: Avg. 350mA (4.2W at 12V, with GPS on and Wi-Fi off)
Avg. 300mA (3.6W at 12V, with GPS and Wi-Fi off)

* Current power consumption may differ under certain conditions

Operating temperature: -20°C - 70°C
Storage temperature: -20 °C - 70 °C
Temperature cut-off protection: At approximately 80 Celsius
Rear camera connection: Coax cable

Suitable for:
Dashcam

---

application	Dashcam
Fastening	Sticky attachment
Memory	256GB
Camera	Double
resolution	Full HD
Shock sensor	Yes
Wifi connection	Yes
Warranty	2 years
