BlackVue DR770X-2CH Truck LTE Full HD Dashcam 256GB

BlackVue DR770X-2CH Truck LTE Full HD Dashcam 256GB

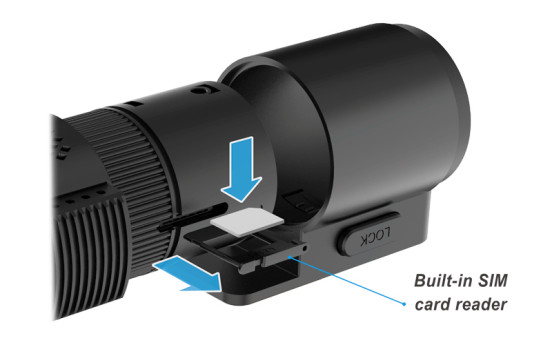

1. Built-in SIM card module
2. Infrared rear camera
3. Cloud
4. Full HD 1080p
5. Sony Starvis™ image sensors
6. Wi-Fi
7. GPS
8. Advanced parking mode
9. And much more!

Model Name: DR770X-2CH Truck
Color/Size/Weight Black/Width:
Front: Black/Width 118.5mm x Height 36mm/105g
Back: Black/Width 70.0 mm x Height 44.4 mm/180 g

Memory microSD card: (64GB/128GB/256GB)

Recording modes

Normal recording, Activity recording (when collision
is detected in normal and parking mode),
Manual recording and Parking recording (when
motion is detected)
* When using a wired power cord,
ACC+ activate parking mode. When you use other
methods used, G sensor will enter parking mode
activate.

Camera:
Front: STARVISTM CMOS sensor (approx. 2.1M Pixel)
Back: CMOS sensor (approx. 2.1M Pixel)

Viewing angle
Obverse: Diagonal 139°, Horizontal 116°, Vertical 61°
Back: Diagonal 120°, Horizontal 100°,
Vertical 60°
Resolution/Frame Rate:

Full HD at 60 fps - Full HD at 30 fps
* Frame rate may vary during Wi-Fi streaming.

Image Quality: Highest (Extreme), Highest, High, Normal
Video compression mode: MP4
Wi-Fi: Built-in (802.11 bgn)
GPS: Built-in (Dual-Band: GPS, GLONASS)
Bluetooth: Built-in (V2.1 + EDR/4.2)
LTE: external
Microphone: Built-in
Speaker(Voice guidance): Built-in
Lights: Recording LED, GPS/BT LED, Wi-Fi LED, Front security LED, Proximity sensor LED
Camera wavelength IR LEDs: 940 nm (6 Infrared (IR) LEDs)

Test
Wi-Fi button:
* Press once to turn Wi-Fi on or off.
Proximity sensor:
Touching the proximity sensor starts audio recording
on/off or manual recording is activated,
depending on the rmware settings.

Sensor: 3-axis acceleration sensor
Backup battery: built-in super capacitor
Input power: DC 12V - 24V (DC Plug (Ø3.5 x Ø1.35)) to wires (black: GND / yellow: B+ / red: ACC)

Energy consumption

Normal mode (Wi-Fi on / GPS on): 275mA/hour
Normal mode (Wi-Fi off / GPS on): 240mA/hour
Parking mode (Wi-Fi on / GPS off): 220mA/hour
Parking mode (Wi-Fi off / GPS off): 185mA/hour
* Approx. 60mA additional current consumption when IR LEDs are ON.
* Actual energy consumption may vary depending on
of the conditions of use and the environment.

Operating temperature: -20 °C - 85 °C (-4 °F - 185 °F)
Storage temperature: -20 °C - 90 °C (-4 °F - 194 °F)
High temperature interruption: Approx. 85 °C (185 °F)
Certifications: FCC, CE, RoHS, Telec, WEEE, IC

Software: BlackVue Viewer * Windows 7 or later and Mac Yosemite OS X (10.10) or later Application BlackVue application (Android 5.0 or later, iOS 9.0 or later)

Other: Built-in 4G LTE module. Compatible with Nano SIM card (SIM card not included).


Suitable for:
Dashcam
