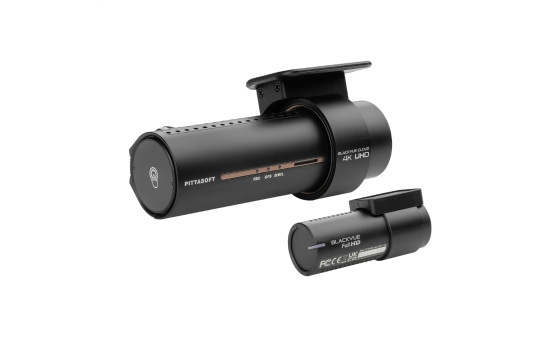

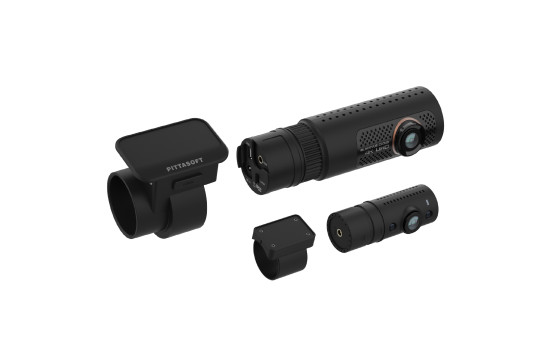

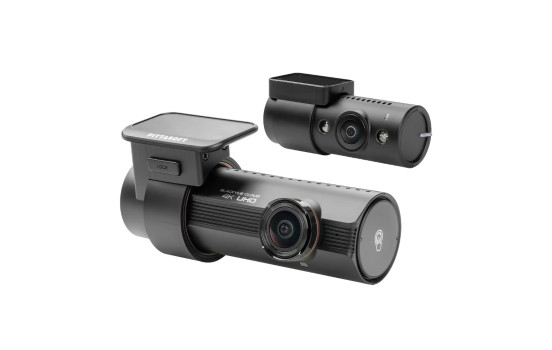

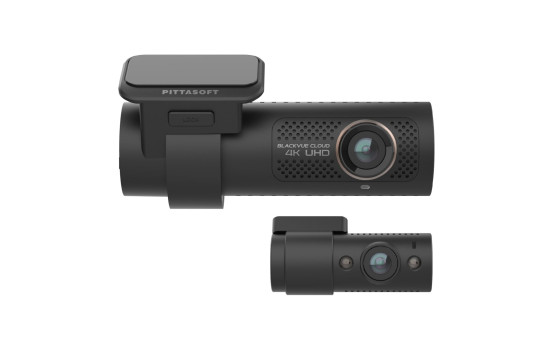

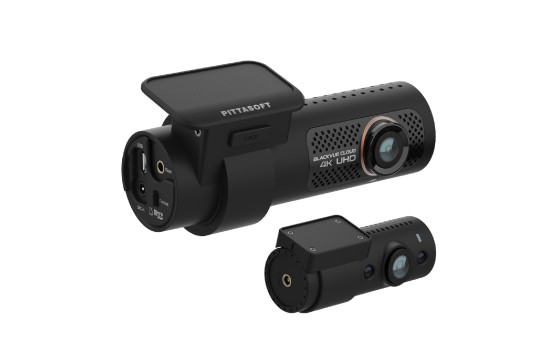

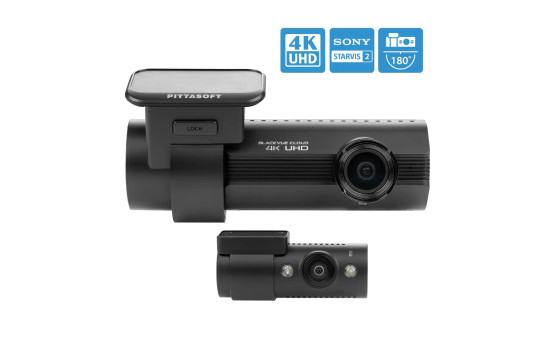

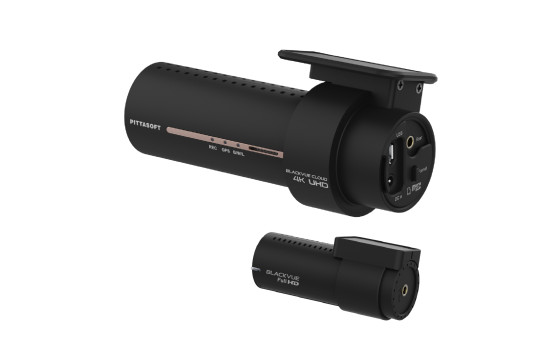

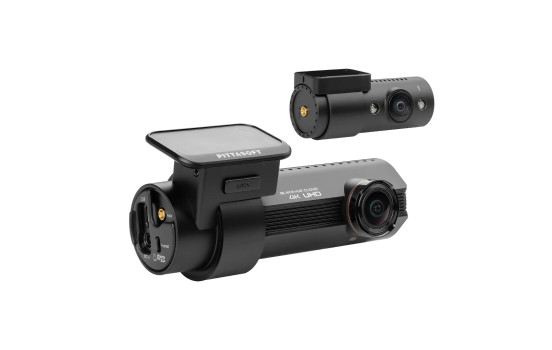

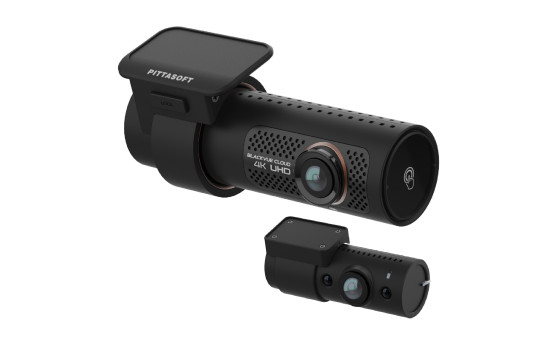

BlackVue DR970X-2CH IR Premium 4K UHD Cloud Dashcam 256GB

BlackVue DR970X-2CH IR Premium 4K UHD Cloud Dashcam 256GB

Premium taxi dashcam with excellent 4K recording quality which protects your vehicle both front and inside. Fast 5GHz Wi-Fi connection and cloud function ensure that you can be connected anywhere and anytime.

1. Razor-sharp 4K recording quality
2. Secure your vehicle from the front and inside
3. Dual Band Wi-Fi (2.4-5GHz)
4. GPS
5. Cloud
6. Impact detection
7. Motion detection
8. Extended parking mode
9. And much more

Model Name: DR970X-2CH IR
Color/Size/Weight Black/Width:
Front: Black/Width 118.5mm x Height 36mm/105g
Back: Black/Width 67.4mm x Height 25mm/25g

Memory microSD card: (32GB/64GB/128GB/256GB)

Recording modes

Normal recording, Activity recording (when collision
is detected in normal and parking mode),
Manual recording and Parking recording (when
motion is detected)
* When using a wired power cord,
ACC+ activate parking mode. When you use other
methods used, G sensor will enter parking mode
activate.

Camera:
Front: 8-Megapixel CMOS sensor
Back: CMOS sensor (approx. 2.1M Pixel)

Viewing angle
Obverse: Diagonal 139°, Horizontal 116°, Vertical 61°
Back: Diagonal 145°, Horizontal 118°, Vertical 59°
Resolution/Frame Rate:

4K UHD (3840x2160) @30fps (Extreme) — Full HD
(1920x1080) @30fps
* Frame rate may vary during Wi-Fi streaming.

Image Quality: Highest (Extreme), Highest, High, Normal
Video Codec: H.265 (HEVC), H.264 (AVC)
Video compression mode: MP4
Wi-Fi: Built-in (802.11 bgn)
GPS: Built-in (Dual-Band: GPS, GLONASS)
Bluetooth: Built-in (V2.1 + EDR/4.2)
LTE: external
Microphone: Built-in
Speaker(Voice guidance): Built-in

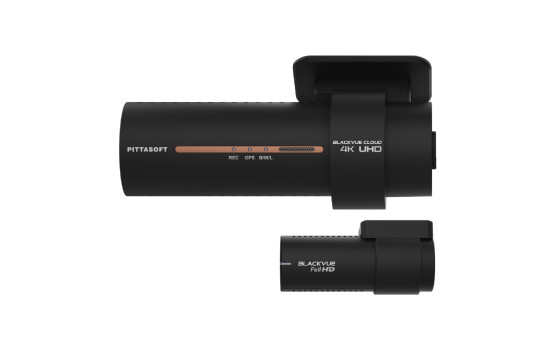

Lights: Recording LED, GPS/BT LED, Wi-Fi LED, Front security LED, Proximity sensor LED
Wavelength of IR LED: 940 nm (2 Infrared (IR) LEDs)

Test
Wi-Fi button:
* Press once to turn Wi-Fi on or off.

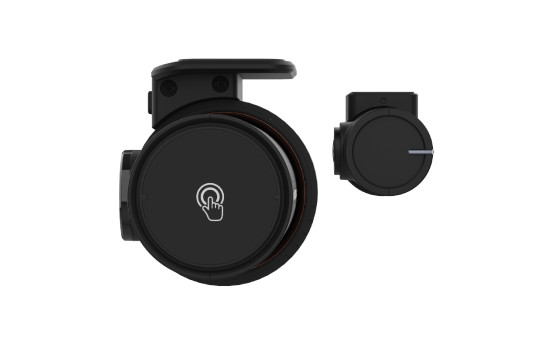

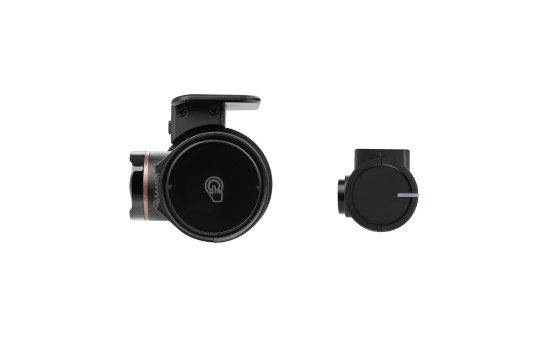

Proximity sensor:
Touching the proximity sensor starts audio recording
on/off or manual recording is activated,
depending on the rmware settings.

Sensor: 3-axis acceleration sensor
Backup battery: built-in super capacitor

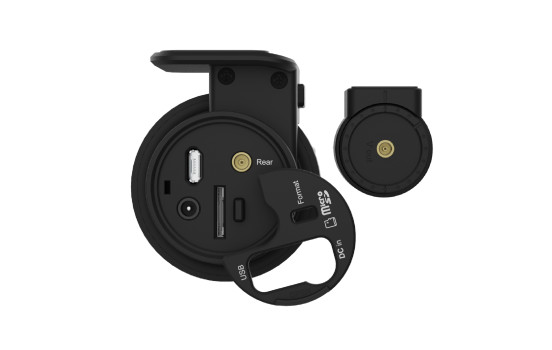

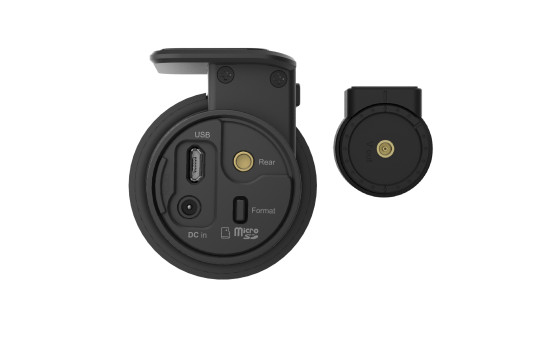

Input power: DC 12V - 24V (DC Plug (Ø3.5 x Ø1.35)) to wires (black: GND / yellow: B+ / red: ACC)

Energy consumption

Normal mode (Wi-Fi on / GPS on): 275mA/hour
Normal mode (Wi-Fi off / GPS on): 240mA/hour
Parking mode (Wi-Fi on / GPS off): 220mA/hour
Parking mode (Wi-Fi off / GPS off): 185mA/hour
* Approx. 40mA additional current consumption when IR LEDs are ON.
* Actual energy consumption may vary depending on
of the conditions of use and the environment.

Operating temperature: -20 °C - 85 °C (-4 °F - 185 °F)
Storage temperature: -20 °C - 90 °C (-4 °F - 194 °F)
High temperature interruption: Approx. 85 °C (185 °F)
Certifications: FCC, CE, RoHS, Telec, WEEE, IC

Software: BlackVue Viewer * Windows 7 or later and Mac Yosemite OS X (10.10) or later Application BlackVue application (Android 5.0 or later, iOS 9.0 or later)

Other: Custom Format Free File Management System

Suitable for:
Dashcam
