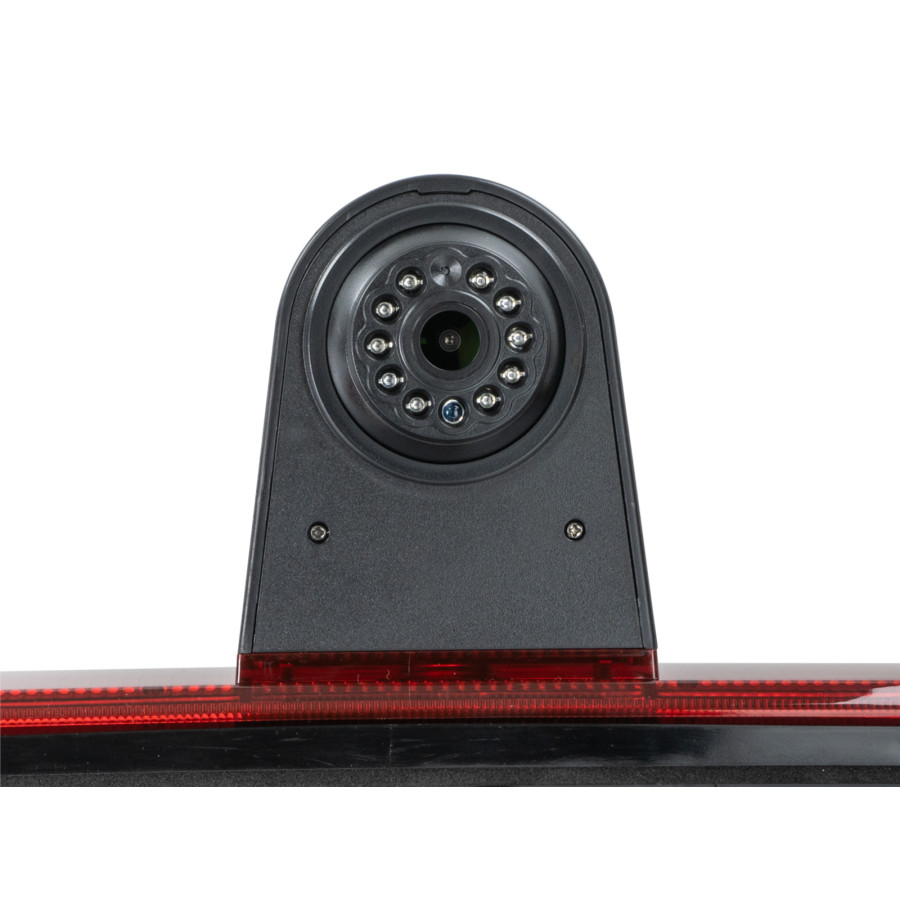

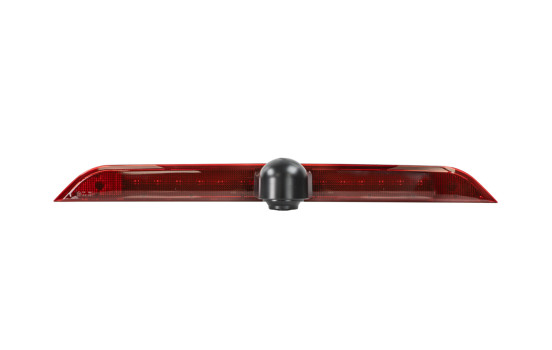

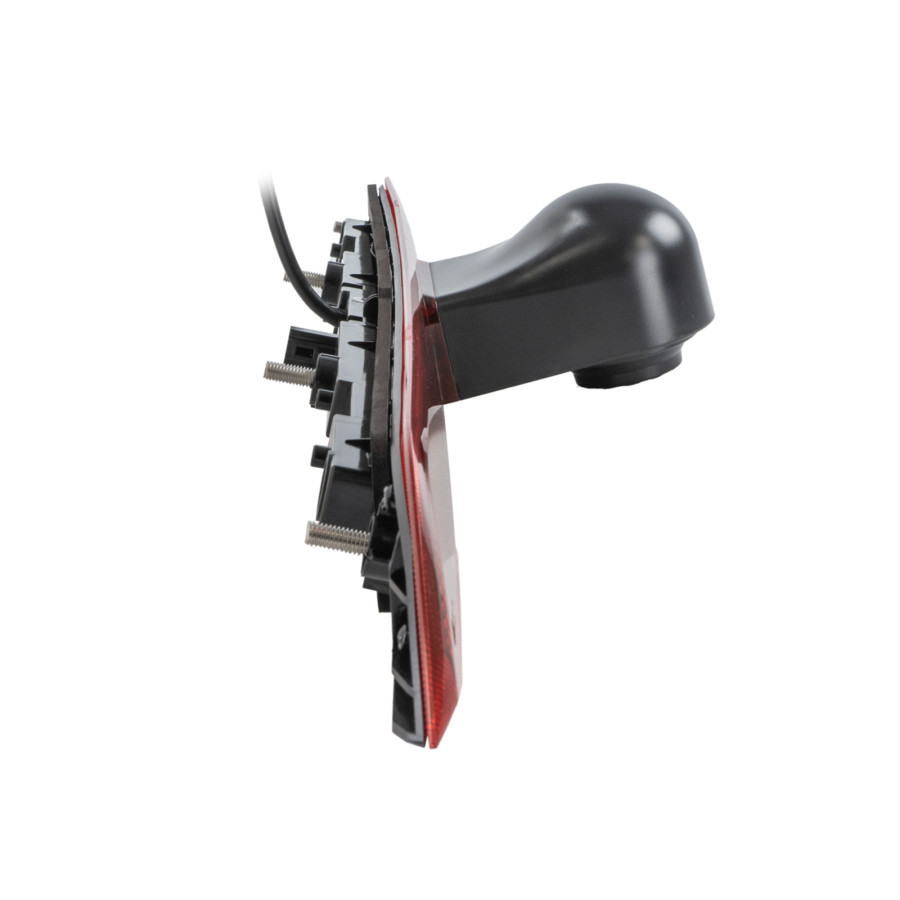

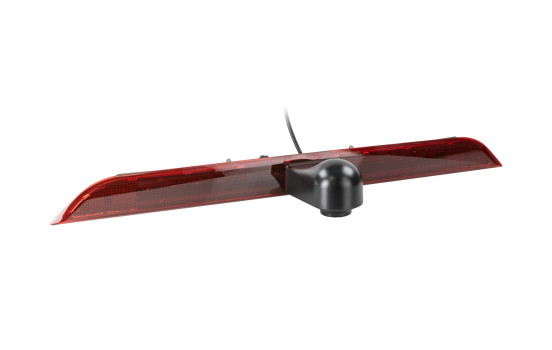

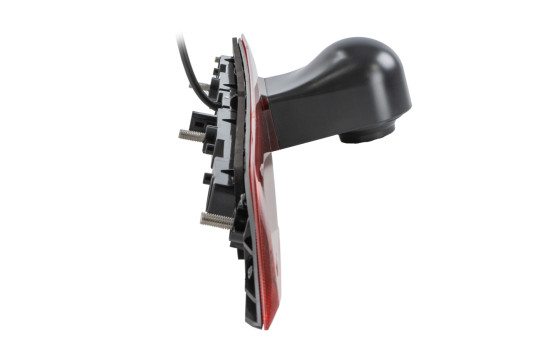

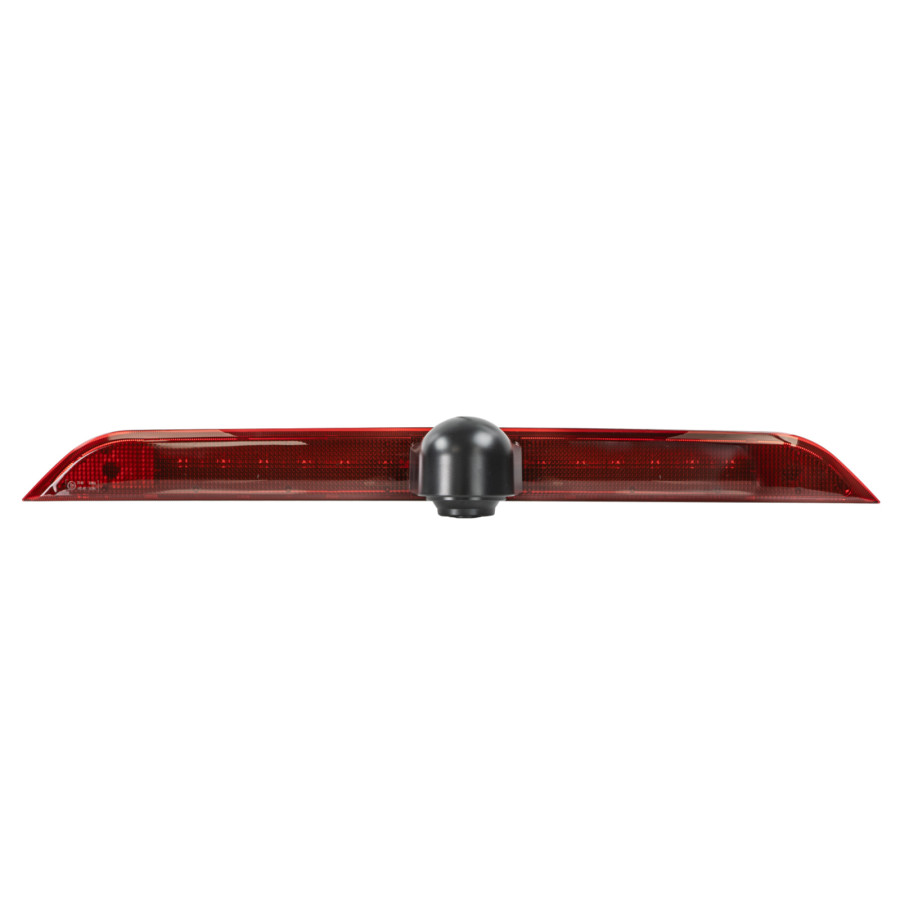

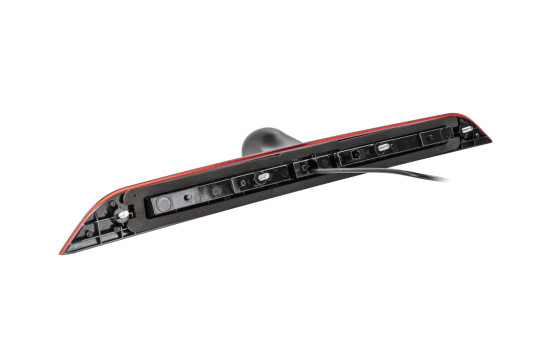

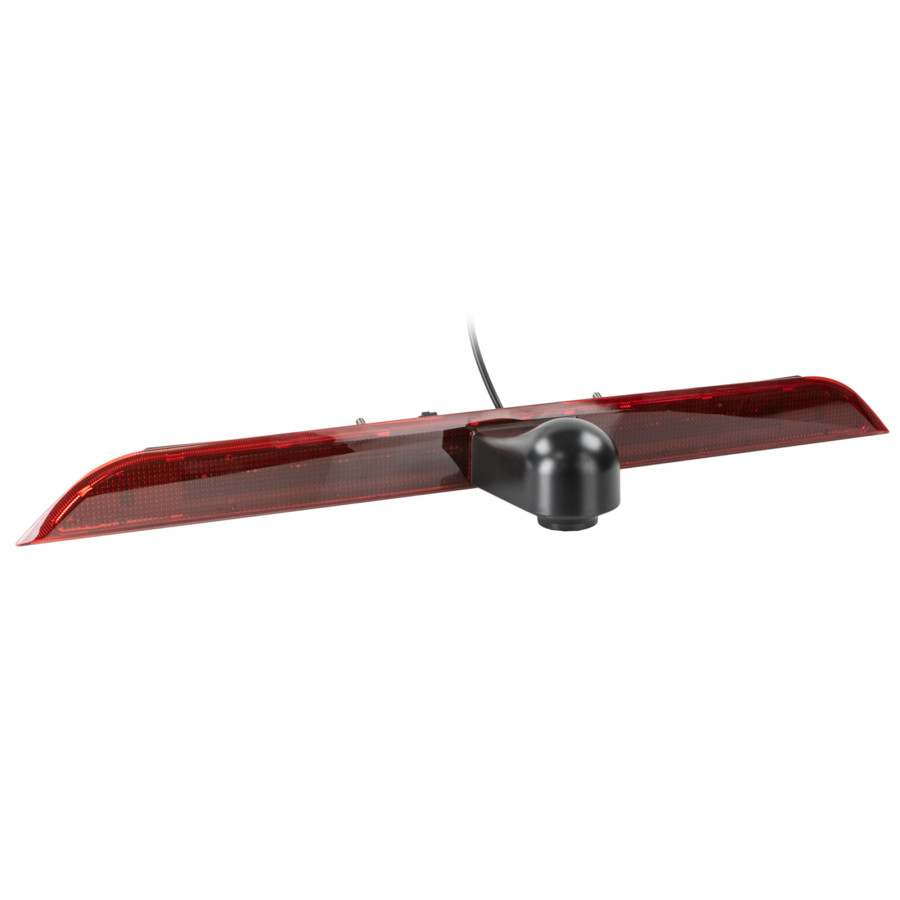

Rear view camera 3rd brake light Maxus Deliver 9 2020-2025

Rear view camera Maxus

Maxus Deliver 9 (SV63C) 10/2020 - 2025
Maxus eDeliver 9 (SV63C) 10/2020 - 2025

to replace the OEM 3rd brake light
with guide lines / night vision function / adjustable viewing angle 20°

Remark:

Before installation > check the viewing angle and alignment of the camera at the installation location using a test monitor

camera operating voltage: +12V
camera power supply: +12V / +24V

connection:
red: +12V switched, load stable, secured
black: body directly grounded/GND

RCA(m) yellow: video

cable loop:
green: enable/disable cut/connect guides

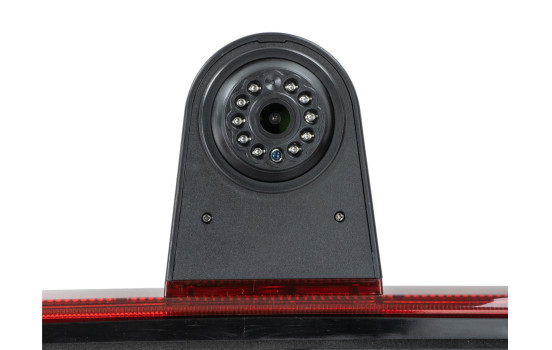

Camera product features:

Design: plastic
Color: black/red
Extras: auxiliary lines via cable loop / night vision / adjustable viewing angle 20°
Image sensor: 1/3" CMOS
TV system: NTSC
Effective pixels: 976 x 592
Lens: 12.6 mm
Min. lux: 0 lux with active night vision function
Night vision range: 35 ft
Resolution: 600 TV lines
Viewing angle: horizontal 115° vertical 75° +5°
IP rating: IP67
Connection: 4-pin system connector (m)
Operating voltage: +12 V DC
Power supply: +12 V DC
Power consumption: 150 mA during active night vision function
Operating temperature: -20 °C - 70 °C
Storage temperature: -40 °C - 80 °C

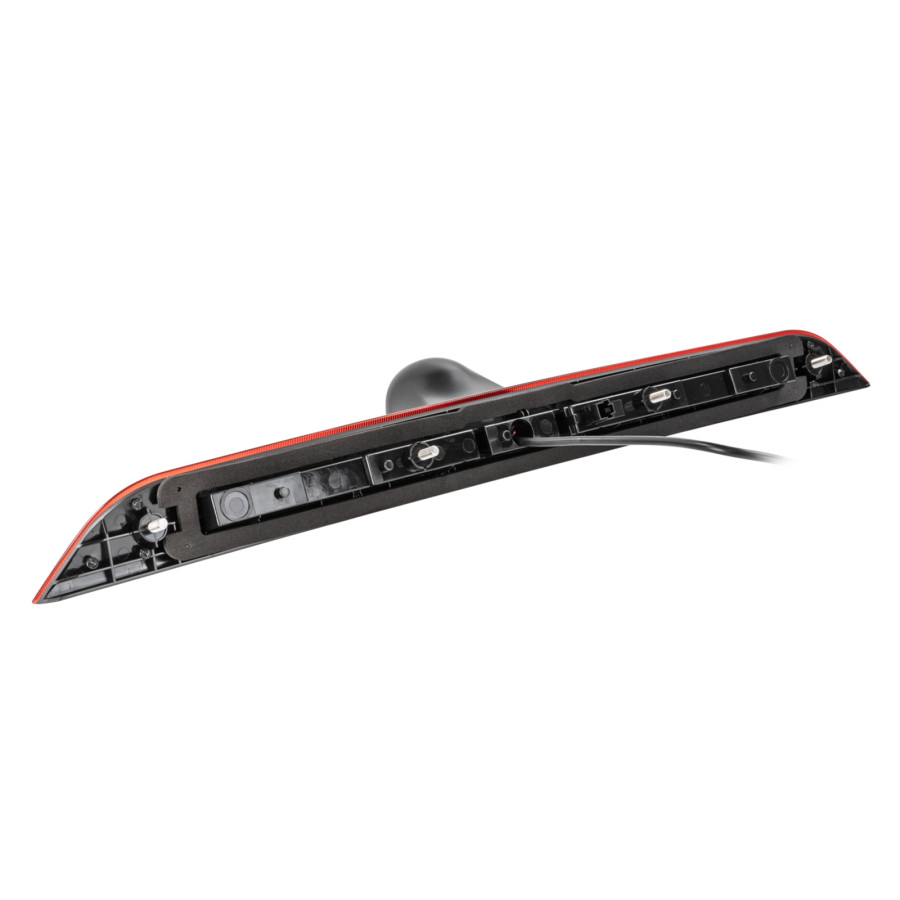

Dimensions: OEM 3rd brake light

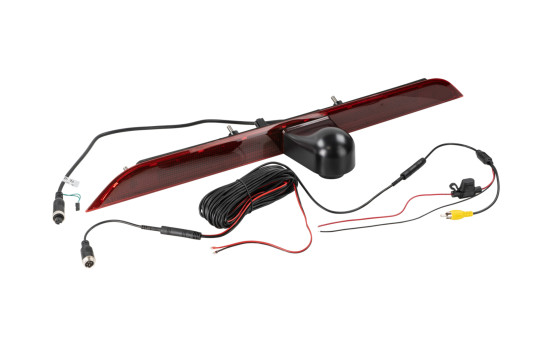

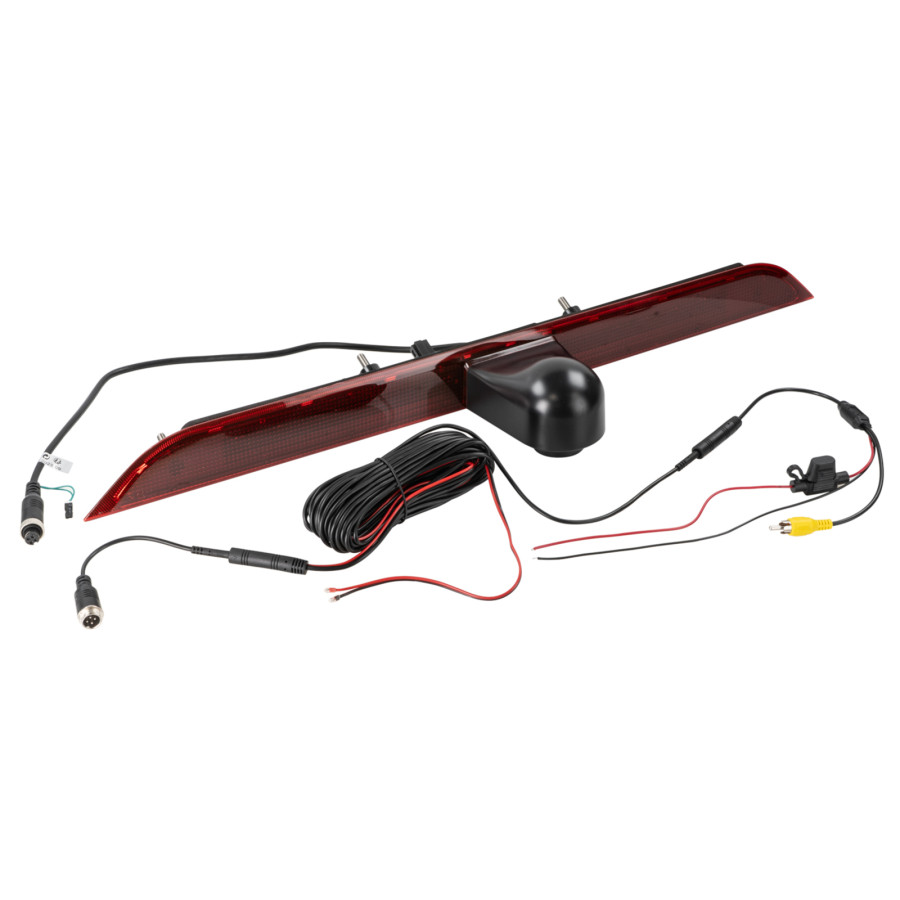

Pigtail at the camera 3.2 m +/-:
4-pin system connector (m)
1 cable loop

Adapter harness 20 cm +/-:
4-pin system connector (female) > 4-pin acv system connector (male)

Extension cable 15 m +/-:
4-pin ACV system connector (female) Ø 10 mm / 4-pin ACV system connector (male) Ø 5.2 mm
power cable red 3 m +/- insertion cable: connection to camera / connection reversing light on monitor
black grounding cable 3 m +/- insertion cable: connection body direct/GND on camera / body direct/GND on monitor

Connection cable 20 cm +/-:
4-pin ACV system connector (female) Ø10 mm
red: food
black: GND
RCA(m) yellow: video

Installation accessories:

camera connection with interfaces:
Solid state closing relay 2V-12V/1.5A max > article: 40-AD-REMOTE
camera connection with reversing light:
Rear-view camera voltage stabilizer reversing signal > article: 771000-6100

Optional accessory:

Camera cable extension for ACV camera 5 m > article: 771000-6305
Camera cable extension for ACV camera 10 m > article: 771000-6310
Camera cable extension for ACV camera 15 m > article: 771000-6315

Suitable for:
Maxus Deliver 2020-2025

---

application	Ready
Warranty	2 years
