Rear view camera Citroen/Fiat/Opel/Peugeot Dual Camera

Rear view camera Dual View / 2 camera lenses

Citroën Jumper (250) 10/2006 - 05/2014
Citroën Jumper (250) 05/2014 - 2022
Citroën Relay (250) 10/2006 - 05/2014
Citroën Relay (250) 05/2014 - 2022

Fiat Ducato (ZAF250) 06/2006 - 05/2014
Fiat Ducato (ZAF250) 05/2014 - 03/2021
Fiat Ducato (ZAF250) 04/2021 - 2022

Opel Movano Cargo C (Y) 10/2021 - 2022

Peugeot Boxer (Y) 02/2007 - 05/2014
Peugeot Boxer (Y) 05/2014 - 2022

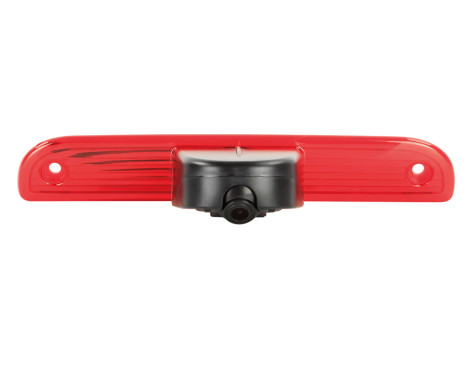

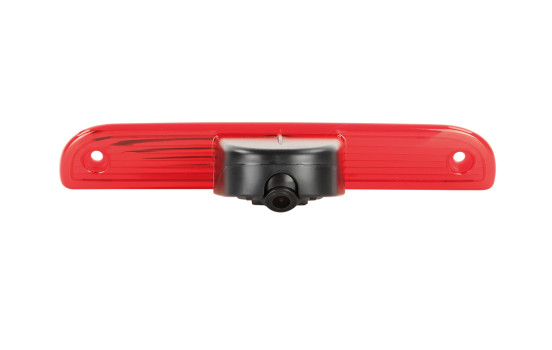

For replacing the OEM 3rd brake light on vehicles with interior lighting
With orientation lines / night vision function / 20° adjustable viewing angle.

Message:

All ACV cameras are suitable for connection to +12V continuous operation

Vehicles with interior fittings such as campers or workshop vehicles
Screw-free installation through the loading or interior space

Connection:
red +12V switched load stable (fused)
black earth/GND body direct

Product Features Camera:

Construction: plastic
Color: black/red

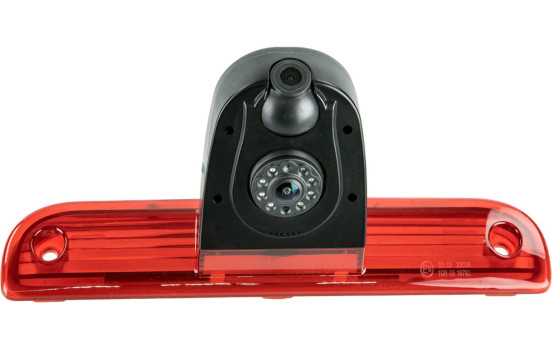

Extras: 2 camera lenses and night vision function, viewing angle adjustable by 20
Sensor type: 1/3" CMOS
Image system: NTSC color
Effective pixels: 976 x 592
Lens: 1.9mm / F 2.0
Min.lux: 0 with active night vision function
Resolution: 600 TV lines
Camera 1 angle of view: diagonal 170° horizontal 145° vertical 80° + 5
Camera 2 angle of view: diagonal 100° horizontal 80° + 5° vertical 50° + 5°
Dust and water resistant: IP68
Connection: 7-pin plug
Supply voltage: 12Volt + 10
Power consumption: 200mA with night vision function enabled
Operating temperature range: -30°C - 75°C
Storage temperature: -40°C - 80°C
Dimensions: see OEM brake light

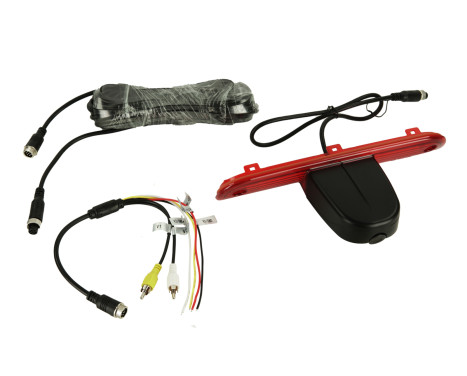

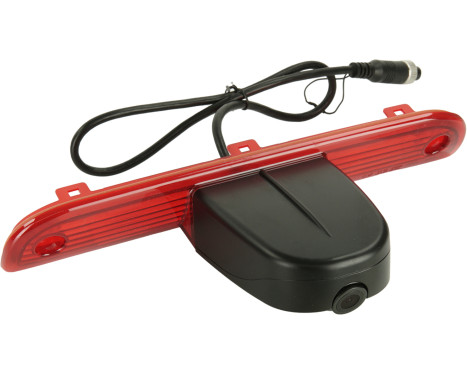

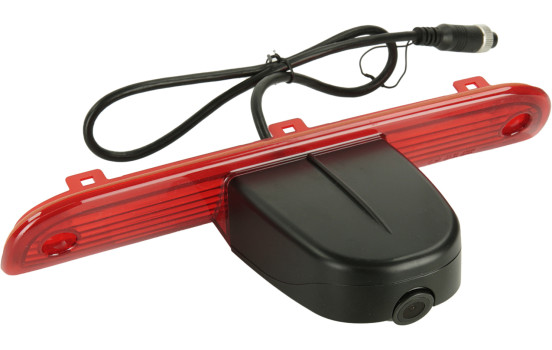

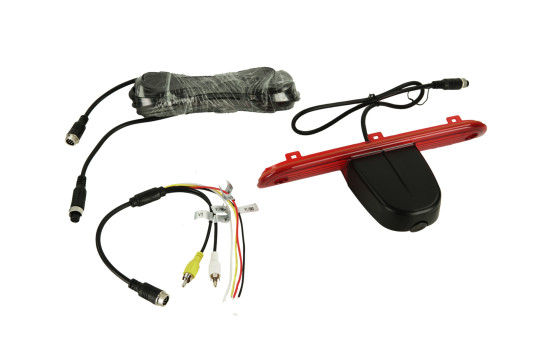

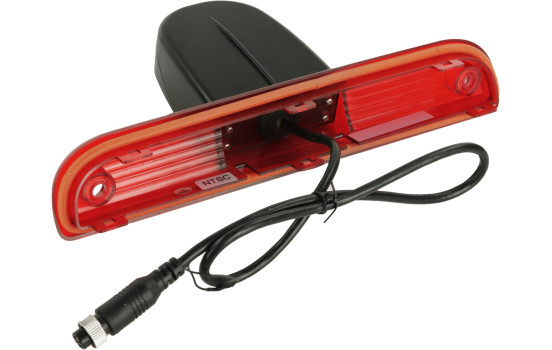

Connection cable to the camera:

0.5 meter cable 7 pin connector (m)
Connector: Orientation lines

Cable set:

6.5 meter 7 pin extension

0.2 meter 7-pin connection cable

Connection:

red: +12V switched (rear light/ignition) (fused)
black: body mass
yellow: trigger line +12V switched Camera1
Cinch yellow: Camera1
white: Trigger line +12V switched Camera2
Cinch white: Camera2

Installation accessories:

Camera connection to interfaces NO relay electronic 2V-12V/1.5A max: 40-AD-REMOTE
Connecting the camera to the reversing light Reversing camera Voltage stabilizer Reversing signal: 771000-6100

Suitable for:
Citroen Jumper 2006-2024
Fiat Ducato 2006-2024
Opel Movano 2021-2024
Peugeot Boxer 2007-2024

---

application	Ready
Warranty	2 years
