Reversing Camera Fiat Ducato - Citroën Jumper - Peugeot Boxer

Rear view camera Citroën / Fiat / Opel / Peugeot

Lemon
Citroën Jumper (250) 10/2006 - 05/2014
Citroën Jumper (250) 05/2014 - 2023
Citroën Relay (250) 10/2006 - 05/2014
Citroën Relay (250) 05/2014 - 2023

Fiat
Fiat Ducato (ZAF250) 06/2006 - 05/2014
Fiat Ducato (ZAF250) 05/2014 - 03/2021
Fiat Ducato (ZAF250) 11/2021 - 2023

Opel
Opel Movano Cargo C (Y) 10/2021 - 2023

Peugeot
Peugeot Boxer (Y) 02/2007 - 05/2014
Peugeot Boxer (Y) 05/2014 - 2023

For replacing the OEM 3rd brake light lens on vehicles with interior lighting

With orientation lines / night vision function / adjustable viewing angle 20°

Remark:

ACV cameras are suitable for continuous use

Before installation > Check the viewing angle and alignment of the camera at the installation location using a test monitor

Camera power supply voltage: +12V
Camera power supply voltage: +12V

Vehicles with interior > Campers/workshop vans:
Installation by replacing the OEM brake light diffuser plate
Installation without screw connections through the loading area/interior

Connection:
red: +12V switched load, stable fused
black: body ground direct/GND

Cinch(m) yellow: Video

Cable loop:
green: disconnect/connect activate/deactivate orientation lines

Product Features Camera:

Structure: plastic
Color: black/red
Extras: Orientation lines via cable loop / Night vision function / Adjustable viewing angle 20°
Sensor type: 1/3� CMOS
Image system: NTSC color
Effective pixels: 976 x 572
Lens: 1.9mm / F 2.0
Min. lux: 0 with active night vision function
Resolution: 600 TV lines
Lens angle: diagonal 160
Viewing angle: horizontal 115° vertical 75° +5°
Dust and water resistant: IP68
Connection: 4-pin system connection (m)
Operating voltage: +12V DC
Supply voltage: +12V DC
Power consumption: 150mA with night vision function enabled
Operating temperature range: -30°C - 75°C
Storage temperature: -40°C - 80°C
OEM traffic light dimensions

Connection cable to the camera 50cm +/-:
4-pin system connector (m)
1 cable loop

Connection adapter 20cm +/-:
4-pole system plug(f) > 4-pole acv system plug(m) Ø5.2mm

Extension cord 15m +/-:
4 pin acv system plug(f) Ø10mm / 4 pin acv system plug(m) Ø5.2mm

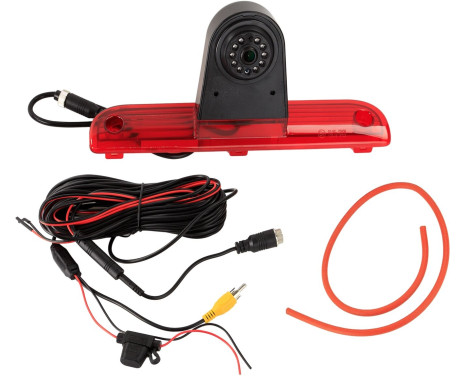

Power cable red 3m +/- wired: camera connection / reversing light connection on monitor
Ground cable/GND black 3m +/- wired: connection ground body/GND to camera / connection ground body/GND directly to monitor

Connection cable 20cm +/-:
4 pin acv system connector (f) Ø10mm
red: supply voltage
black: ground/GND
Cinch(m) yellow: Video

Installation accessories:

Connecting camera to interfaces:
NO contact relay electronic 2V-12V/1.5A max > Article: 40-AD-REMOTE
Camera connection to reversing light:
Rear view camera Voltage stabilizer reverse signal > Article: 771000-6100

Optional accessories:

Camera cable extension for ACV camera 5m > Item: 771000-6305
Camera cable extension for ACV camera 10m > Item: 771000-6310
Camera cable extension for ACV camera 15m > Item: 771000-6315

Suitable for:
Fiat Ducato 2015-2024
Citroen Jumper 2014-2024
Peugeot Boxer 2014-2024

---

application	Ready
Warranty	2 years
