ACV

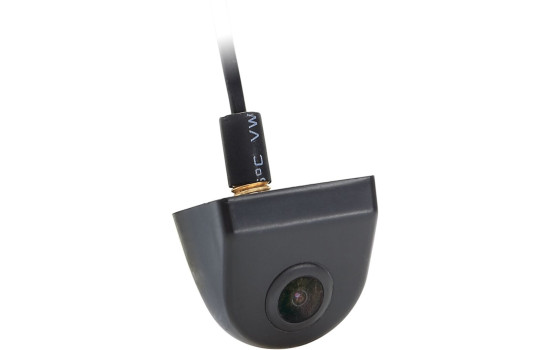

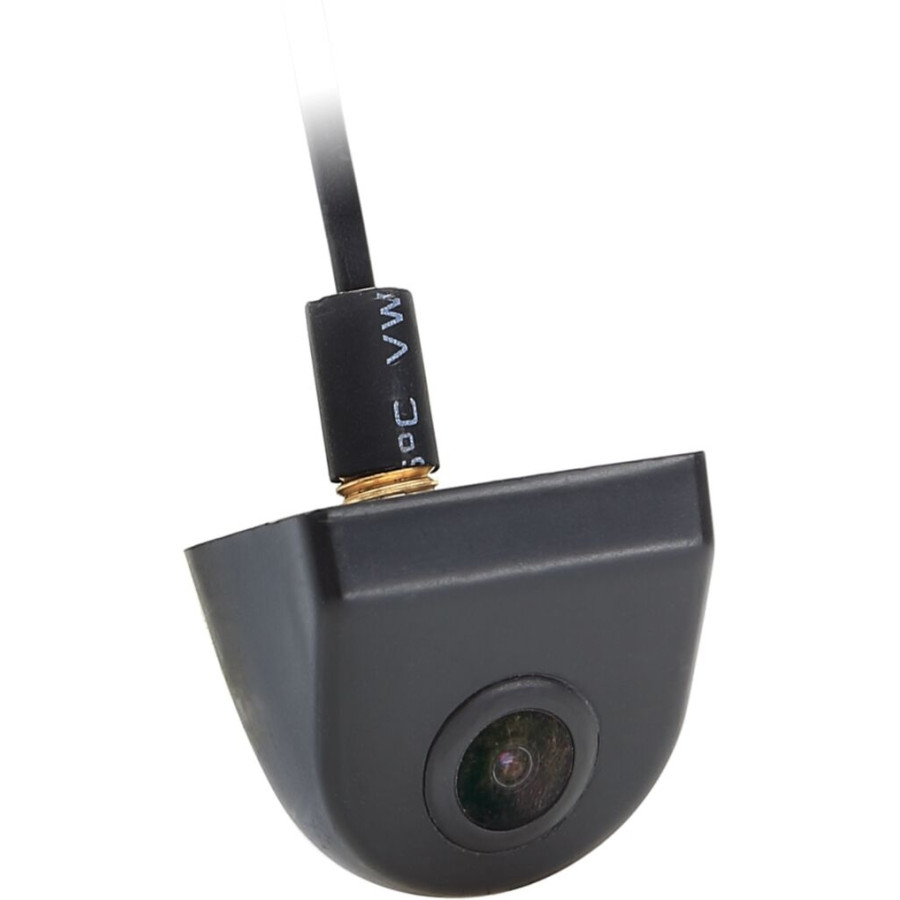

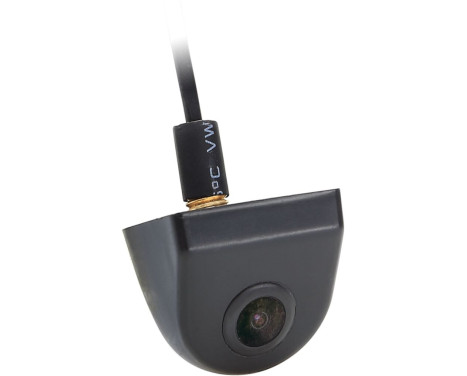

Reversing Camera mini black NTSC with image lines and mirror function

Universally applicable

Product number: 1688341

Manufacturer number: 771000-6003

EAN: 4026724031829

£ 86.38

Incl. VAT
View product specifications
In stock
Delivery 11-07-2025

Free Shipping

Secure payment

  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
  • Specifications

    Camera mini black NTSC with image lines and mirror function incl. 6.5m cable with RCA connection

    Mounting method: under-mounted / extension

    With horizontal and vertical mirror function
    Camera operating voltage: + 3V
    Connection without voltage converter will damage the camera
    Connection:
    red + 12V switched load stable (fused)
    black ground / GND body direct

    Camera Product Features:
    Construction: plastic with 8 mm threaded tube (cable guide)
    Color black
    Extras: Horizontal and vertical mirror function via jumpers
    Sensor type: 1/3" CMOS
    Image system: NTSC color
    Effective pixels: 728 x 488
    Lens: 1.9mm / F 2.0
    Lux: 0.3
    Resolution: 600 TV lines
    Viewing angle: 170 °
    Viewing angle: horizontal 103° vertical 78° + 5 °
    Dust and waterproof: IP68
    Connection: 4-pin mini plug 5.2 mm
    Supply voltage: 12-24Volt DC + 10%
    Current consumption: 200mA
    Operating temperature range: -30°C - 75°C
    Storage temperature: -40 ° C - 85 ° C
    Dimensions: L/W/H - 34.5mm/33mm/27.57mm

    1 meter cable with 4-pole mini plug 5.2mm

    Cable set:

    1 meter cable with 4-pin mini plug incl. 2 jumpers

    6.5 meter extension incl. 3 meter power cable for connection to reversing light
    and the feed-through to the connection cable on the fan coil unit.
    4-pin mini jack 10 mm and plug 5.2 mm

    0.2 meter power cable incl. fuse and video connection cable (RCA)

    Installation accessories:

    Camera connection to interfaces NO relay electronic 2V-12V/1.5A max: 40-AD-REMOTE
    Connection camera to reversing light Reversing camera Voltage stabilizer Reversing signal: 771000-6100

    Optional accessories:

    771000-6305 Extension 5 meters
    771000-6310 Extension 10 meters
    771000-6315 Extension 15 meters


    Suitable for:

    Universal Various models Various years
    applicationUniversal
    Warranty2 years
  • Applicability

    Universally applicable

  • Manufacturer

    ACV
  • Delivery time

    Expected delivery date:

    11-07-2025

  • Questions?

    • 1688341. Reversing Camera mini black NTSC with image lines and mirror function
    • In order to help you with your request, we require extra information about your vehicle. We would like to know: brand / model / type, year of manufacture, coach work, fuel, automatic transmission or manual, number of doors, VIN.
