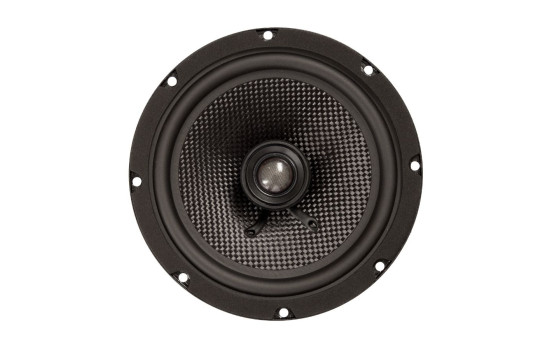

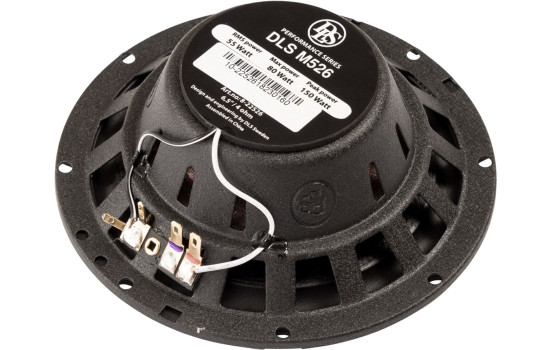

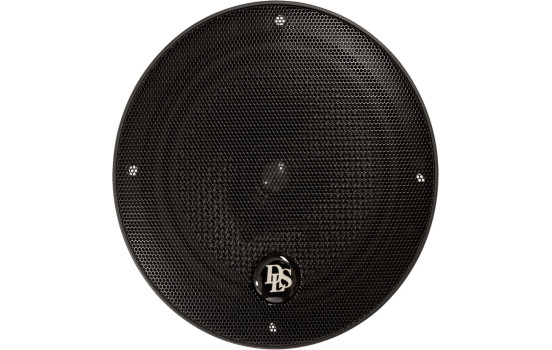

DLS 165mm coaxial speaker M526i

PERFORMANCE COAXIALS

M526i

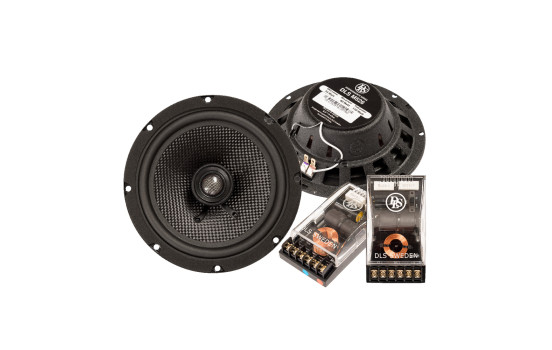

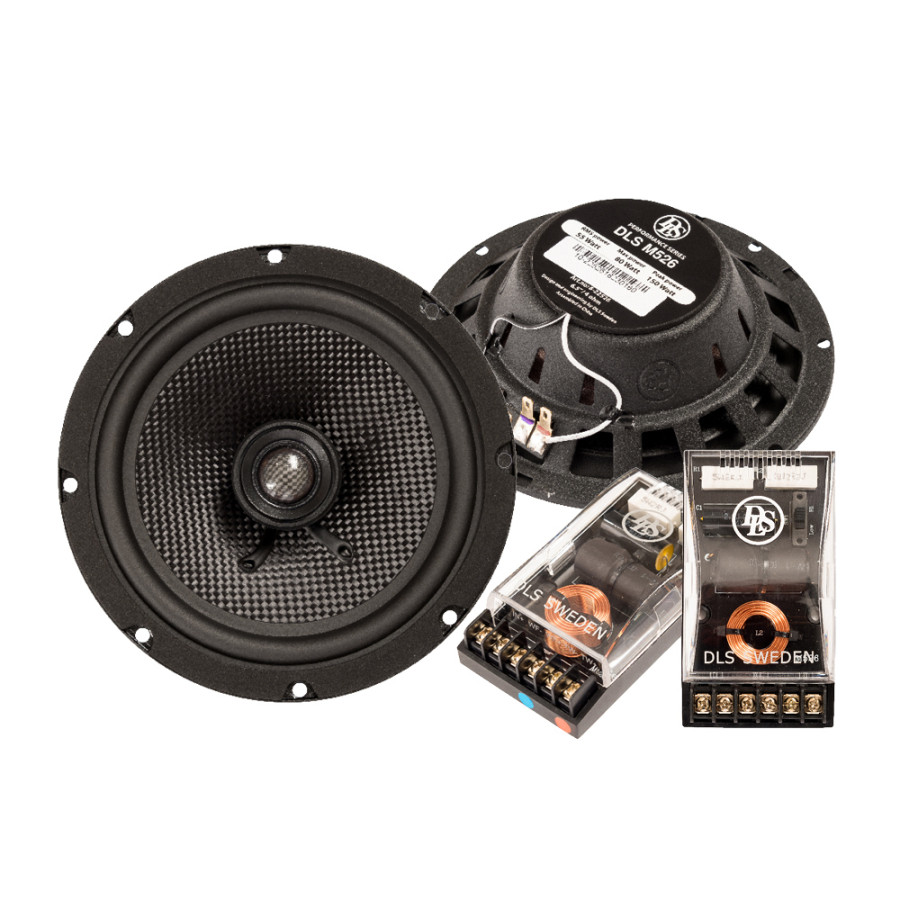

16cm (6.5") slim basket design, hybrid magnet, woven glass fibre cone, 20mm silk dome combined with a high quality external crossover including tweeter level select makes this an excellent coaxial to upgrade.

Woofer size 16.5 cm (6.5?)
Tweeter 20 mm (0.8?) silk dome
Power 55 W RMS / 80 W max, 150 W peak power
Impedance 4 ohms
Frequency range 60 - 20,000 Hz
Sensitivity 86 dB (1W/1m)

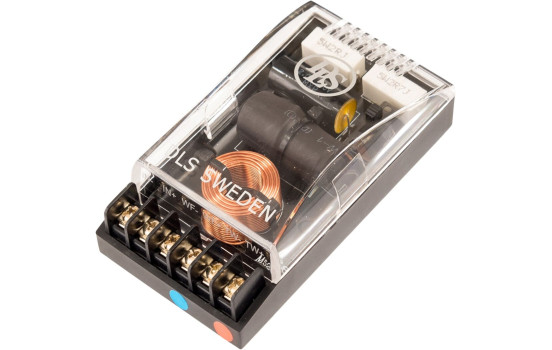

Crossover box filter with 6/12 dB slope (LP/HP)
Outer diameter of the woofer 165 mm (6.5?)
Cone material Wowen fiberglass and rubber edge
Magnet size 70 mm (2.75?)
Mounting depth 43 mm (1.7?)
Mounting hole 146 mm (5.75?)
Filter box dimensions 120 x 66 x 33 mm (4.72 x 2.6 x 1.3?)

Suitable for:
165 mm
