2-DIN Kit BMW (Steering Wheel Interface) X5(F15/F85) 2013-2018 NBT

2-DIN Kit BMW (Steering Wheel Interface) X5(F15/F85) 2013-2018 NBT

Product number: 1688080

Manufacturer number: 621023-23-1

EAN: 4026724341768

£ 326.03

Incl. VAT
View product specifications
Not available

Free Shipping

  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast shipping: 2 days
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    2-DIN mounting kit

    Many car manufacturers install their own vehicle-specific radios that are visually matched to the center console.
    For this reason, you will need a suitable mounting panel to replace the standard 1-DIN or 2-DIN radio.
    In addition, vehicle-specific radio connection cables, antenna adapters, steering wheel control interfaces,
    camera adapters and active system adapters are required.

    For more information, please contact our technical helpdesk.

    Notes:

    Vehicles with steering wheel remote control

    CAN bus

    Connection: 40 Pin Quadlock (m)/(f) BMW extension
    Connection: LVDS (m)/(f) extension
    Connection: Molex 4 Pin (m)/(f)
    Connector: fiber optic loop (f) MOST-Ring*
    Connection: OEM USB > USB A
    Connection: Fakra(m) > DIN(m)

    Vehicles with NBT OEM system

    Vehicles without NBT EVO OEM system
    Vehicles without OEM sound system

    OEM mounting in the luggage compartment

    Suitable for the following vehicles:

    BMW X5 (F5/F85) 011/2013 - 07/2018

    The following signals are offered:

    Inflammation
    Relief
    Backwards
    Speedpulse

    Steering wheel remote control

    Vehicle settings
    Reversing warning/front warning sound
    OEM camera

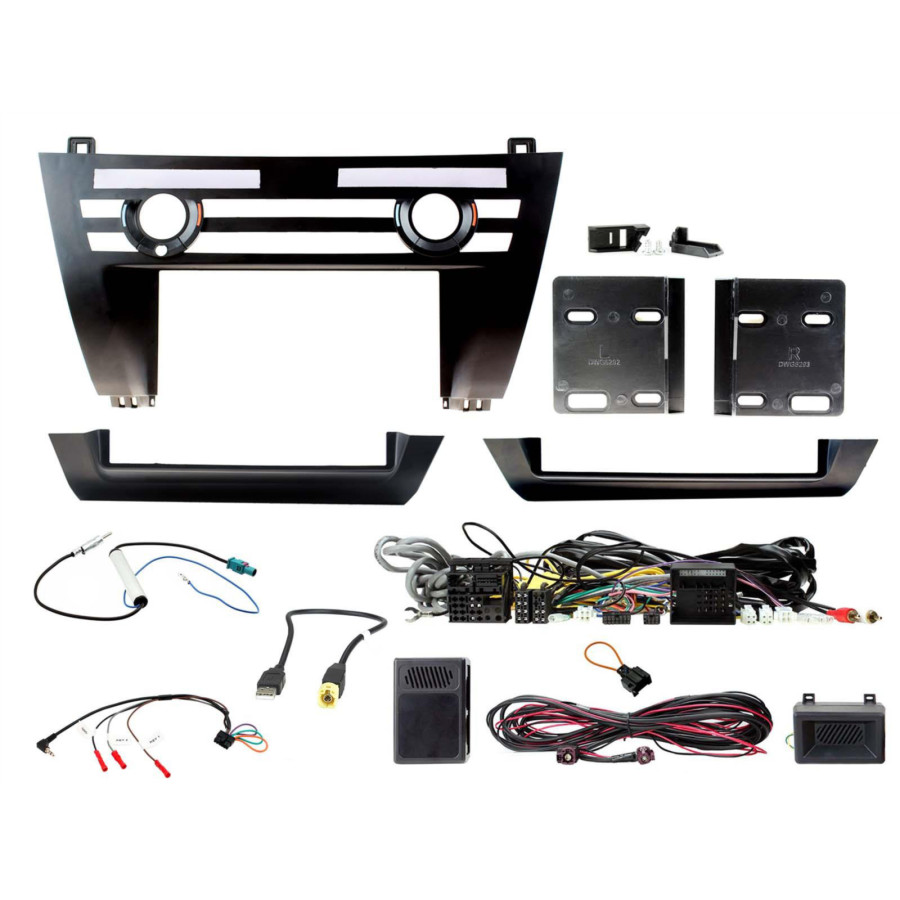

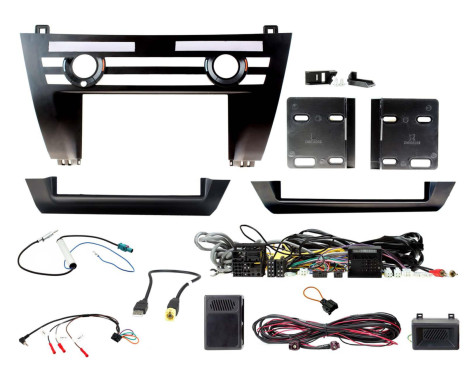

    Scope of delivery:

    2-DIN radio panel BMW X5
    SWI BMW X5
    Extensions of cables
    Fiber optic loop (f) MOST-Ring: 771000-2101
    Antenna adapter Fakra(m) > DIN(m) 12V Phantom: 1524-03
    LFB ACV cable > Multilead various devices: 42ctmultilead

    Optional:

    SWI ACV cable > Pioneer AVH/DMH/SPH 2022> plug loose: 42ctpioneerlead2
    *Extended optical cable (m) > (m) MOST ring 5m: 771000-2103

    Suitable for:
    BMW X5 2013-2018 (F1-)
    ColourBlack
    applicationReady
    format2-DIN
    Warranty2 years

  • Applicability

    BMW
    X5
    X5 (F15, F85) | 08.2013-07.2018 M - 4395ccm, 575pk, 423kw - S63 B44 B
    X5 (F15, F85) | 08.2013-07.2018 M 50 d - 2993ccm, 381pk, 280kw - N57 D30 C
    X5 (F15, F85) | 08.2013-07.2018 sDrive 25 d - 1995ccm, 231pk, 170kw - B47 D20 B
    X5 (F15, F85) | 08.2013-07.2018 sDrive 25 d - 1995ccm, 218pk, 160kw - N47 D20 D
    X5 (F15, F85) | 08.2013-07.2018 sDrive 25 d - 1995ccm, 211pk, 155kw - N47 D20 D, B47 D20 B
    X5 (F15, F85) | 08.2013-07.2018 xDrive 25 d - 1995ccm, 231pk, 170kw - B47 D20 B
    X5 (F15, F85) | 08.2013-07.2018 xDrive 25 d - 1995ccm, 218pk, 160kw - N47 D20 D
    X5 (F15, F85) | 08.2013-07.2018 xDrive 25 d - 1995ccm, 211pk, 155kw - N47 D20 D, B47 D20 B
    X5 (F15, F85) | 08.2013-07.2018 xDrive 25 d - 2993ccm, 218pk, 160kw - N57 D30 A
    X5 (F15, F85) | 08.2013-07.2018 xDrive 28 i - 1997ccm, 245pk, 180kw - N20 B20 A
    X5 (F15, F85) | 08.2013-07.2018 xDrive 30 d - 2993ccm, 249pk, 183kw - N57 D30 A
    X5 (F15, F85) | 08.2013-07.2018 xDrive 30 d - 2993ccm, 258pk, 190kw - N57 D30 A
    X5 (F15, F85) | 08.2013-07.2018 xDrive 30 d - 2993ccm, 277pk, 204kw - N57 D30 A
    X5 (F15, F85) | 08.2013-07.2018 xDrive 30 d - 2993ccm, 286pk, 210kw - N57 D30 A
    X5 (F15, F85) | 08.2013-07.2018 xDrive 35 i - 2979ccm, 306pk, 225kw - N55 B30 A
    X5 (F15, F85) | 08.2013-07.2018 xDrive 35 i - 2979ccm, 326pk, 240kw - N55 B30 A
    X5 (F15, F85) | 08.2013-07.2018 xDrive 40 d - 2993ccm, 313pk, 230kw - N57 D30 B
    X5 (F15, F85) | 08.2013-07.2018 xDrive 40e - 1997ccm, 313pk, 230kw - N20 B20 A
    X5 (F15, F85) | 08.2013-07.2018 xDrive 50 i - 4395ccm, 449pk, 330kw - N63 B44 B
