2-DIN kit Citroën C1 / Peugeot 108 / Toyota Aygo - Color: piano Black

Radio panel 2-DIN with radio connection set steering wheel remote control Citroen / Peugeot / Toyota Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console.

Installation kits contain all the parts needed to replace an OEM device.
Depending on the vehicle equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included.

Please observe the installation recommendations for the individual components.

In some cases, not all vehicle functions are supported.
For example, Trailer Assist, E Call or other driver assistance systems.
Before installation, please check the OEM device and the vehicle menu for various settings.
Depending on the vehicle equipment and the range of functions and software of the retrofit device, individual operating functions may be omitted or replaced by other functions.
Compare the adapter plugs shown with those in your vehicle and make sure they match visually and technically.
Also check to see if one of the specified original factory radios was installed in your vehicle.

Before final installation, check that the vehicle functions, vehicle settings and steering wheel remote control are working properly.

Remark:
Analog
Connection: 10 pin / 6 pin / 20 pin Toyota connector
Connection: OEM steering wheel remote control > 3.5mm jack / loose cable
Connection: OEM antenna GT13(f) > DIN(m)
Connection: OEM AUX > Cinch(m) red/black

2-DIN devices with a maximum mounting depth of 70mm/80mm including connector at the bottom

L-devices with 1-DIN housing on top with a maximum installation depth of 100mm/150mm including plug

To avoid malfunction or failure of the vehicle or retrofit device, check the pin assignment by measuring before connecting the device.

AUX > check correct assignment before installation
Dip switch settings for the retrofit device manufacturer (see BDA)

Suitable for the following vehicles:
Citroën C1 (P) 07/2014 - 09/2021
Peugeot 108 (P) 07/2014 - 03/2021
Toyota Aygo (AB1) 07/2014 - 06/2018
Toyota Aygo (AB1) 06/2018 - 03/2022
Color: Piano lacquer black
Radio display recess: 172mm x 97mm

The following signals are provided:
Re-imported vehicles or vehicles with different software may be incompatible in functions.
Steering wheel remote control

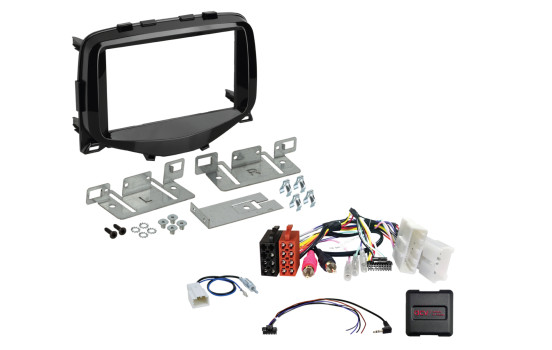

Scope of delivery:
2-DIN radio frame Citroën C1/Peugeot 108/Toyota Aygo(AB1) > Item: 381040-15
LFB Citroën/Peugeot/Toyota 10Pin/28Pin Multilead USB loose > Part: 42xty006
Antenna adapter GT13(f)>DIN(m) Toyota/Lexus/Subaru loose > Part: 1513-01

General installation instructions:
Check:
1: Check all operating functions and vehicle setting functions of the OEM device.
2: De-energize and remove the OEM device.
3: Turn off the power and check all interface connections for correctness and continuity.

Connection and connection sequence:
1: Disable the interface settings and hardware configuration.
2: Check the configuration of the radio connection cable.
3: Connect the radio connection cable according to the instructions for the device to be connected later.
4: Connect all other connections according to the manual of the expansion device.
5: Connect the complete installation to the vehicle using the live connection cable.
6: Software configuration of the interface according to the instructions in the article text and in the BDA.
7: Configuration of the retrofit device according to the operating instructions for the retrofit device steering wheel remote control/camera/FSE/antenna phantom power and others
8: Steering wheel remote control and vehicle function test

Changes to the hardware configuration of the interface and the radio connection cable:
1: Disable changes
2: Connection after change see above 5 to 8
If the interface or vehicle is not working properly:
1: Reset to OEM device
2: Operate OEM device
3: Restore CAN bus status
4: Check the hardware configuration of the interface
5: Connection after CAN bus rest see above 5 to 8

Connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables mentioned in the information text or in the operating instructions are only intended as guidance and information for trained specialist personnel.

Additional connections, changes to the wiring harness cable configuration or the use of alternative connections or connection extensions:
1: Connections and modifications may only be carried out by trained personnel
2: Connections and modifications must be checked before connection for any manufacturer's approvals or manufacturer's warranty conditions that may be affected by the modifications.
3: Connections and modifications must be checked for operation and correctness by measuring and calibrating using the vehicle's wiring mapping diagram before connection.
4: Connections and changes are carried out under your own responsibility without any guarantee of operation.
5: Connections and modifications are carried out under your own responsibility, without any guarantee for damage to the vehicle, the retrofit device or the interface.
6: Modifications to the pre-assembled wiring harness may void the product warranty.

Suitable for:
Peugeot 108 2014-2021
Citroën C1 2014-2021
Toyota Aygo 2014-2022

---

Colour	Piano black
application	Ready
Dimensions	2-DIN
Warranty	2 years
