2-DIN Kit Ford Custom 2012-2016 Euro 5 Silver

2-DIN Kit Ford Custom 2012-2016 Euro 5 Silver

Many vehicle manufacturers install their own vehicle-specific radios, which are visually adapted to the center console. Installation kits contain all the parts required to replace an OEM device. Depending on the vehicle's equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included. Please observe the installation recommendations for the individual components. In some cases, not all vehicle functions are supported. For example, Trailer Assist, E Call or other driver assistance systems. Before installation, check the OEM device and the vehicle menu for various settings. Depending on the vehicle equipment and the range of functions and software of the retrofit device, individual control functions may be omitted or replaced by other functions. Compare the adapter plugs shown with those in your vehicle and ensure that they correspond visually and technically. Also check whether one of the specified original factory radios was installed in your vehicle. Before final installation, check whether the vehicle functions, vehicle settings and steering wheel remote control are working properly.

Remark:

CAN bus

Connection: 24-pin Ford connector
Connection: AMP display connector
Connection: OEM AUX > Cinch(m) red/white

Vehicles with steering wheel OK and/or voice function button
Vehicles with OEM display
Vehicles with Euro5 emission standard
Vehicles with SYNC > SYNC function not supported
Vehicles with OEM navigation > Interface function partially not compatible

Accessories for radio frames depending on OEM device:
Ford hazard warning light switch/central locking switch > Article: 261114-02
Ford airbag indicator light > Article: 261114-03
Ford card holder > Article: 261114-04

Disable SYNC functions and BT before installation
SYNC emergency call function is deactivated with BT function

Avoid interference with the vehicle settings on the display:

Turn off the retrofit device
Press the language selection button for a maximum of 2 seconds to access the settings menu.
Only perform settings as described in the BDA

In case of malfunctions in the setting mode:

Reset after CAN bus standstill

Suitable for the following vehicles:

Ford Transit Custom (FAC/FDA) 08/2012 - 06/2016
Ford Transit Tourneo Custom (FAC/FAD) 08/2012 - 06/2016

Color: Phoenix silver

Radio display recess: 172mm x 98.5mm

The following signals are available:

Vehicles that are re-imported or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse gear signal
pink: speed signal
green: ground GND handbrake signal

Total output load: 100 mA max.

Current requirement greater than 100 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel remote control

PDC rear supported
Supported alert tones
Vehicle settings supported

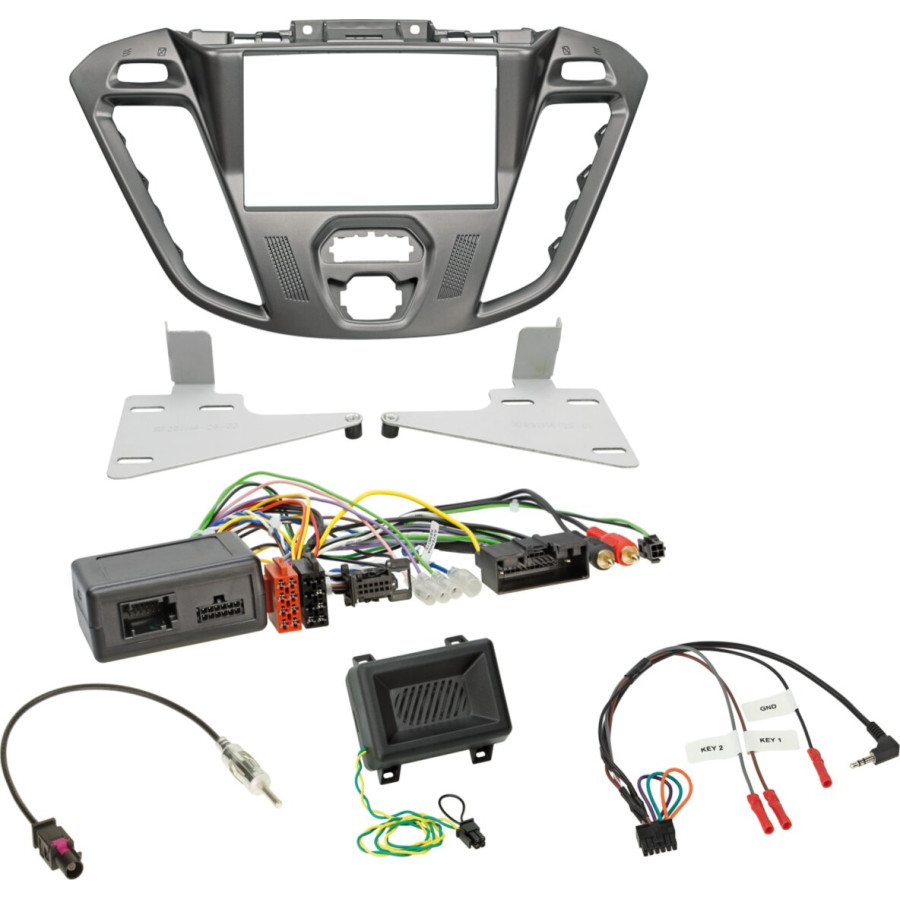

Scope of delivery:

2-DIN radio panel Ford Custom 2012-2018 phoenix silver > Article: 381114-26-1
LFB Ford various vehicles 24pin/display connector > Part: 42sfo008
LFB cable 42s/acv > Multilead various devices > Article: 42ctmultilead
Antenna adapter Fakra A(m)>DIN(m) passive > Article: 1520-01
