2-DIN Kit Mercedes Benz CLK-Class (209) 2004 - 2010

2-DIN Kit Mercedes Benz CLK-Class (209) 2004 - 2010

Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console. Therefore, you need a suitable radio cover to replace a standard DIN or double DIN radio. In addition, there are often also vehicle-specific radio connection cables, antenna adapters, steering wheel remote control adapters, camera adapters and active system adapters required.

Suitable for the following vehicles:

Mercedes CLK (C209) Facelift Coupé 04/2004 - 04/2009
Mercedes CLK (A209) Facelifted Cabriolet 04/2004 - 03/2010

Color: black

Note SWI:

CAN bus

Connection: 40 pin Quadlock Mercedes plug

For unknown Mercedes connector variant > Article: 42smc00c with ISO and 40-pin Quadlock wiring harness

Vehicles with 2-DIN Audio 20 OEM device
Vehicles with 2-DIN Audio 50 APS Comand NTG2 / NTG2.5 OEM navigation*

Mercedes vehicles without radio preparation
Mercedes vehicles without 1-DIN OEM device

Vehicles with Audio 50 APS Comand NTG2/ NTG2.5 OEM navigation:
Time setting not supported > Encode vehicles to Audio 20 OEM device if possible

The following signals are provided:

Re-importing vehicles or vehicles with different software may be incompatible in features.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
green: ground GND handbrake signal

Total output load: 100 mA max.

Current requirement greater than 100 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel controls

Connection cable for the following radio manufacturers:

Alpine jacket: 42ctalpinelead
Parrot 4 pin: 42ctasteroidlead
Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
Clarion connection: 42ctclarionlead
Garmin Vieo� RV52 Stereo Dock 3 cable: 42ctgarminlead
JVC 1 cable/jack: 42ctjvclead
Kenwood 1 cable: 42ctkenwoodlead
Multilead various devices: 42ctmultilead
Multilead various devices/Pioneer 2022>: 42ctmultilead3
Multilead various devices/Pioneer 2022>: 42ctmultilead5
Panasonic 1 cable: 42ctpanasoniclead
Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
Pioneer AVH/DMH/SPH 2022> Loose connection: 42ctpioneerlead2
Devices with SWI tune-in function: 42ctsmartlead
Blaupunkt/Kenwood/Sony connection: 42ctsonylead
XZent/Zenec 1 cable: 42ctzeneclead

Scope of delivery:

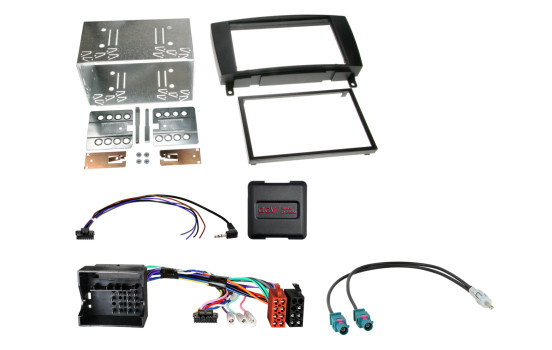

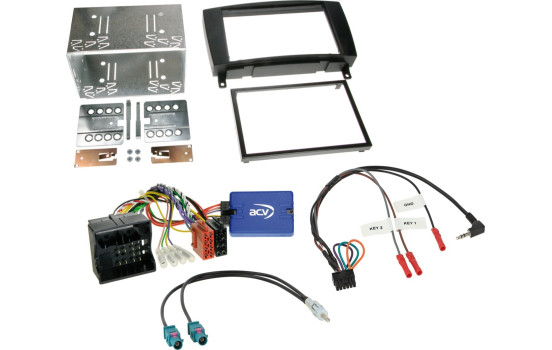

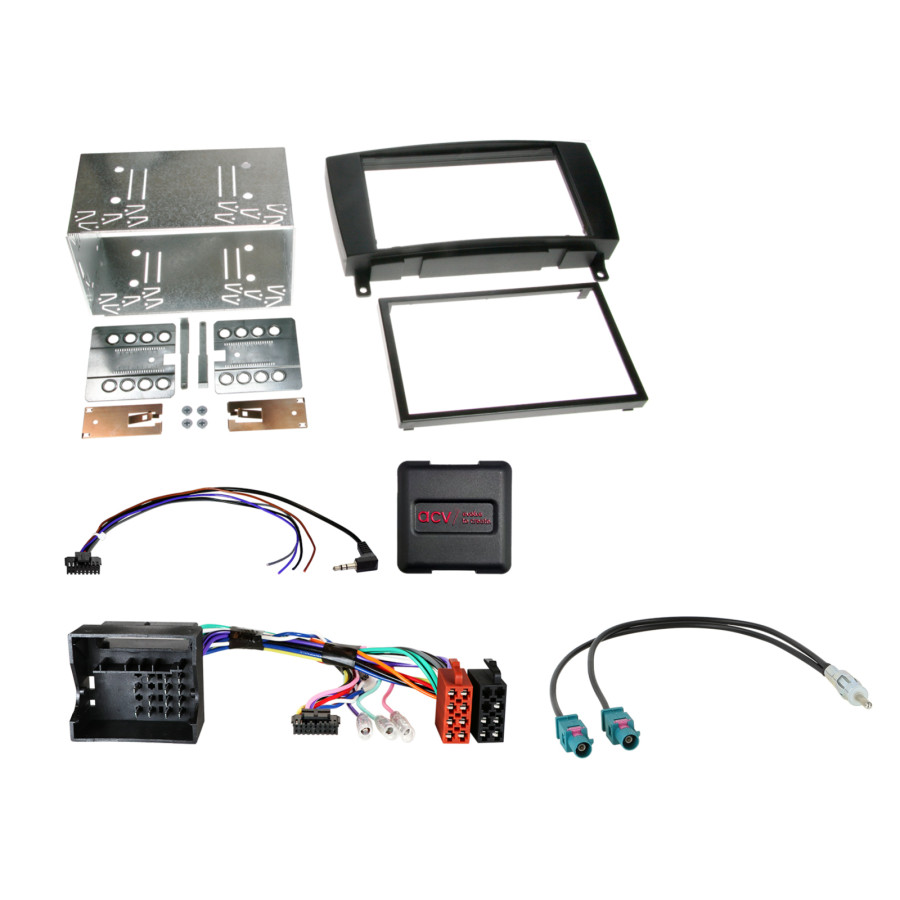

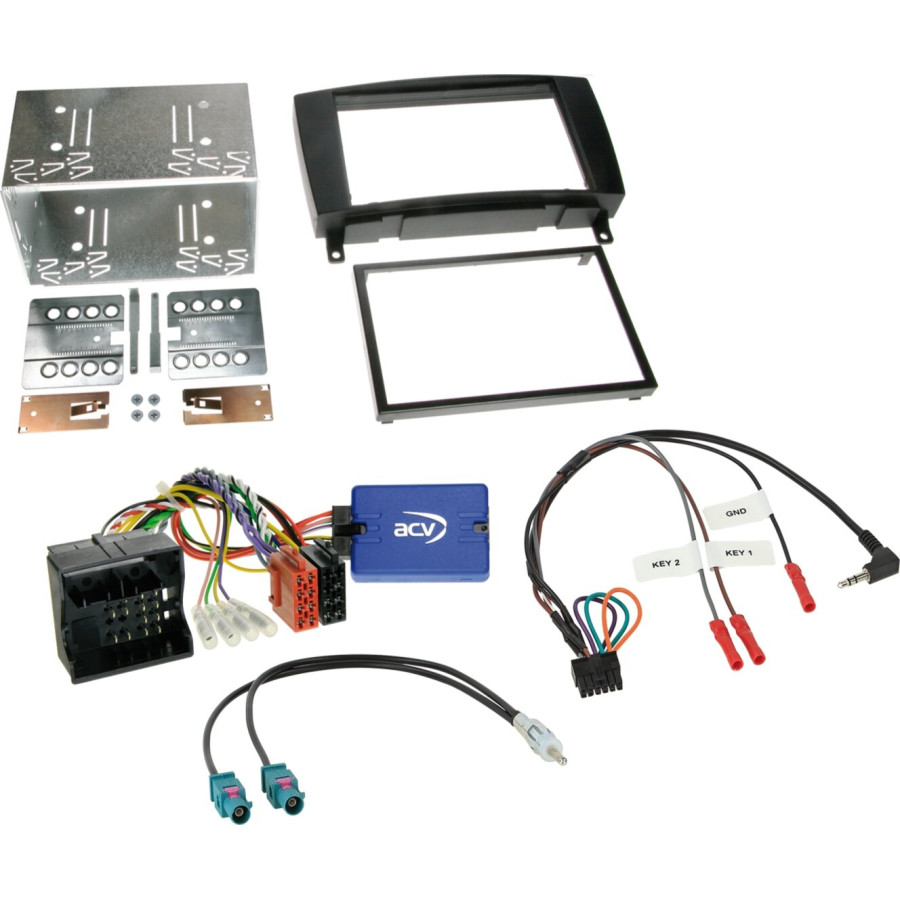

2-DIN RB Mercedes CLK 07/2004 > black > Item: 381190-23
SWI Mercedes various vehicles/Smart 40Pin Quadlock > Part: 42smc001-0
SWI cable 42s/acv > Multilead various devices > Part: 42ctmultilead-0
Adapter antenna Fakra(m)(2x)>DIN(m) > Article: 1524-19-0
