2-DIN Kit Mercedes various vehicles

Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console.

Therefore, you will need a suitable radio cover to replace a standard DIN or double DIN radio.

In addition, vehicle-specific radio connection cables, antenna adapters, steering wheel control adapters, camera adapters and active system adapters are often also required.

Remark:

Radio panel with 2-DIN installation kit

Device installation without metal basket without decorative strip

*Vehicles with 1-DIN Audio 5 OEM device OEM conversion panel 2-DIN > OEM Mercedes article number: A 169 680 32 39 7 / Note vehicle equipment **Vehicles with 1-DIN Audio 5 OEM device OEM conversion panel 2-DIN > OEM Mercedes article number: A 639 680 04 07 / Note vehicle equipment **Vehicles with radio preparation device carrier > OEM Mercedes article number: A 639 689 1031

Color: black

Radio display recess: 173 mm x 98 mm

Optional:

Storage compartment for 2-DIN radio housings/1-DIN radio housings > Item: 271000-05 INBAY® storage compartment for 2-DIN radio panels/1-DIN radio panel > Item: 241000-05-1

Remark:

CAN bus

Connection: 40-pin Quadlock Mercedes plug

For unknown Mercedes connector variant > Article: 42smc00c with ISO and 40-pin Quadlock wiring harness

Vehicles with 2-DIN Audio 20 OEM device Vehicles with 2-DIN Audio 50 APS Comand NTG2 / NTG2.5 OEM navigation*

Mercedes vehicles without radio preparation Mercedes vehicles without 1-DIN OEM device

Vehicles with Audio 50 APS Comand NTG2/ NTG2.5 OEM navigation: Time setting not supported > Encode vehicles to Audio 20 OEM device if possible

Mercedes vehicles with Harman Kardon OEM sound system*/**

The following signals are given:

Re-imported vehicles or vehicles with different software may be incompatible in terms of functions.

red: +12V ignition terminal 15 orange: +12V lighting terminal 58 purple/white: +12V reversing signal green: ground GND handbrake signal

Total output load: 100 mA max.

Current requirement greater than 100 mA: 1 relay Coil resistance 75 Ohm min. 2 relay Coil resistance 150 Ohm min.

Steering wheel controls

*Vehicles with Harman Kardon OEM sound system > Item: 13-1190-53 **Vehicles with Harman Kardon OEM sound system > Item: 13-1190-52

Connection cable for the following radio manufacturers:

Alpine jacket: 42ctalpinelead
Parrot 4 pin: 42ctasteroidlead
Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
Clarion connection: 42ctclarionlead
Garmin Vieo� RV52 Stereo Dock 3 cable: 42ctgarminlead
JVC 1 cable/jack: 42ctjvclead
Kenwood 1 cable: 42ctkenwoodlead
Multilead various devices: 42ctmultilead
Multilead various devices/Pioneer 2022>: 42ctmultilead3
Multilead various devices/Pioneer 2022>: 42ctmultilead5
Panasonic 1 cable: 42ctpanasoniclead Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
Pioneer AVH/DMH/SPH 2022> Loose connection: 42ctpioneerlead2
Devices with SWI tune-in function: 42ctsmartlead
Blaupunkt/Kenwood/Sony connection: 42ctsonylead
XZent/Zenec 1 cable: 42ctzeneclead

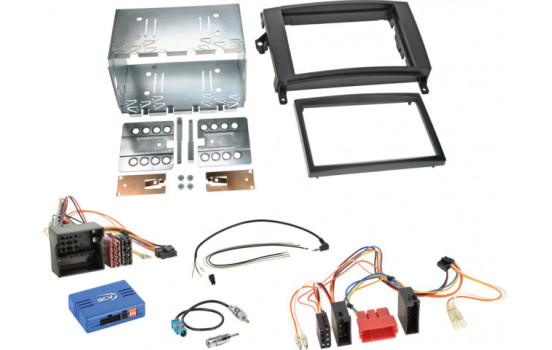

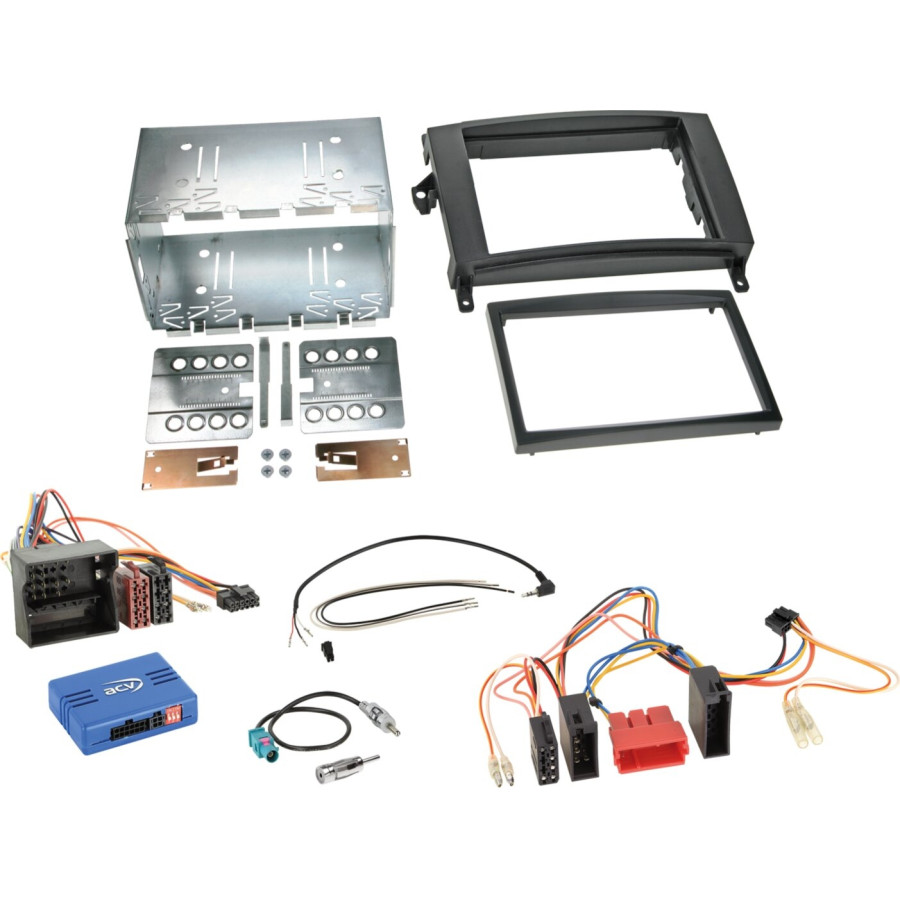

Scope of delivery:

2-DIN radio panel Mercedes various vehicles black > Article: 381190-18
SWI Mercedes various vehicles/Smart 40Pin Quadlock > Part: 42smc001-0
SWI cable 42s/acv > Multilead various devices > Article: 42ctmultilead-0
Adapter antenna Fakra(m)(2x)>DIN(m) > Article: 1524-19-0

Suitable for:
Mercedes Benz A-Class 2005-2012 (169)
Mercedes Benz B-Class 2005-2011 (245)
Mercedes Benz Vito 2006-2014 (639)
Mercedes Benz Viano 2006-2014 (639)
