2-DIN kit Volkswagen Crafter

Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console.

Therefore, you need a suitable radio cover to replace a standard DIN or double DIN radio.

In addition, vehicle-specific radio connection cables, antenna adapters, steering wheel remote control adapters, camera adapters and active system adapters are often also required.

Suitable for the following vehicles:

Volkswagen Crafter (2EC/2EK/2F) 07/2014 - 11/2016

Color: black

Note SWI:

CAN bus

Connection: 40-pin Quadlock Mercedes plug
Connection: yellow +12V continuous current terminal30 battery fused

Vehicles with RCD 3002 OEM device
Vehicles with RNS 4001 / RNS 5001 OEM navigation system

Vehicles with continuous power interruption

Vehicles without continuous power interruption > Article: 42svw012

Vehicles with RCD 2001 1-DIN OEM device > Article: 42smc002
Vehicles with radio preparation > Article: 42smc017

The following signals are provided:

Vehicles that are re-imported or vehicles with different software may be incompatible in terms of features.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed signal
green: ground GND handbrake signal

Total output load: 100 mA max.

Current requirement greater than 100 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel controls

Connection cable for the following radio manufacturers:

Alpine jacket: 42ctalpinelead
Parrot 4 pin: 42ctasteroidlead
Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
Clarion connection: 42ctclarionlead
Garmin Vieo� RV52 Stereo Dock 3 cable: 42ctgarminlead
JVC 1 cable/jack: 42ctjvclead
Kenwood 1 cable: 42ctkenwoodlead
Multilead various devices: 42ctmultilead
Multilead various devices/Pioneer 2022>: 42ctmultilead3
Multilead various devices/Pioneer 2022>: 42ctmultilead5
Panasonic 1 cable: 42ctpanasoniclead
Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
Pioneer AVH/DMH/SPH 2022> Loose connection: 42ctpioneerlead2
Devices with SWI tune-in function: 42ctsmartlead
Blaupunkt/Kenwood/Sony connection: 42ctsonylead
XZent/Zenec 1 cable: 42ctzeneclead

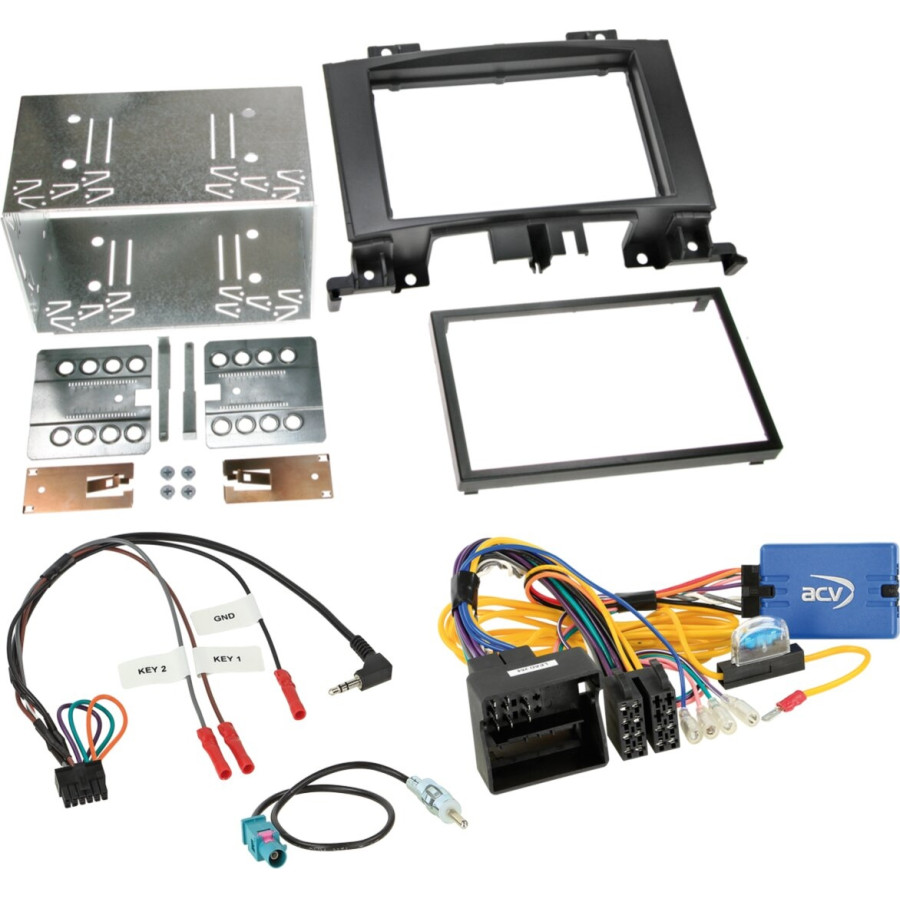

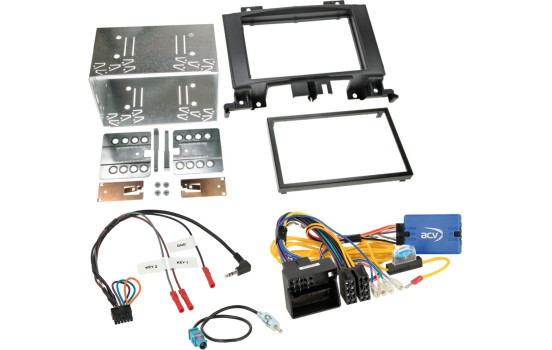

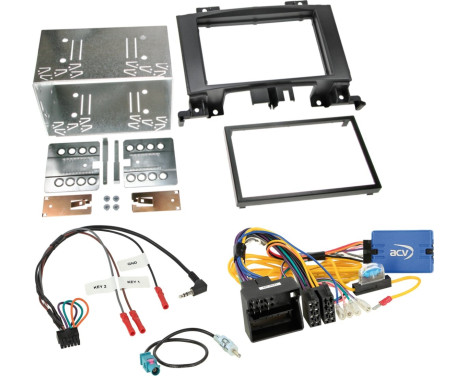

Scope of delivery:

2-DIN radio panel VW Crafter black > Article: 381190-27
SWI VW Crafter 2014-2016 40Pin Quadlock/continuous current > Part: 42svw014-0
SWI cable 42s/acv > Multilead various devices > Part: 42ctmultilead-0
Antenna adapter Fakra(m)>DIN(m) passive > Part: 1524-01-0

Suitable for:
Volkswagen Crafter 2014-2016

---

Colour	Black
application	Ready
format	2-DIN
Warranty	2 years
