2-DIN Volkswagen 10"/9"/7" Kit VW Golf 7 2012-2020 Info Adapter/Antenna

Radio panel 10" / 9" / 7" and radio connection set info adapter VW

Many car manufacturers install their own vehicle-specific radios, which are optically adapted to the center console.

Installation kits contain all the parts needed to replace an OEM device.

Depending on the vehicle's equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included.

Please observe the installation recommendations for the individual components.

Before installation, please check the OEM device and the vehicle menu for various settings.

Please note that in some cases not all features are supported.
For example, Trailer Assist, E Call or other driver assistance and comfort systems.

Compare the adapter plugs shown with those in your vehicle and make sure they match visually and technically.

Also check to see if one of the specified original factory radios was installed in your vehicle.

Check vehicle functions and vehicle settings before final installation.

Remark:

Vehicles with steering wheel remote control

CAN bus

Connection: 52-pin Quadlock VAG plug

blue: +12V antenna remote control

Before installing with OEM device, check the antenna's phantom power voltage by measuring:
Vehicles with 8.5V antenna system > Article: 1524-29-1-0
Vehicles with +12V antenna system > Article: 1524-70-1-0

10� modular devices with display and silver box
10� devices with L-body on the bottom

9� modular devices with display and Silverbox
9� devices with L-housing at the bottom
9� devices short housing

7� modular devices with display and silverbox
7� devices with L-housing at the bottom
7� devices short housing

Device mounting with custom accessories
Display with custom accessories

Vehicles with MIB II system and OEM device Composition Media

Call up menu settings > Connect purple/white reverse gear output
Display menu settings > connect cinch(m) yellow to reversing camera input and configure
Vehicle settings and vehicle information > mirrored on the rear view camera input of the retrofit monitor

Menu settings:
Press the mouse button or voice key 5 times

Depending on OEM vehicle equipment and software:
Not all vehicle settings are supported
Not all vehicle functions are supported
Not all vehicle information is visualized

E-Call not supported

Vehicles with E-Call:
E-Call maintenance MAN/Seat/Skoda/VW 52 Pin Quadlock > Item: 1424-28

Not for vehicles with:
with MOST OEM sound system
with radio preparation
without factory pre-installation > Steering wheel remote control / loudspeaker / radio

Vehicles with parking assistance and front PDC > The front PDC is displayed after starting the vehicle
Exit display > Confirm via PDC vehicle button

Suitable for the following vehicles:

VW Golf VII (AU) 11/2012 - 12/2016
VW Golf VII (AU) 03/2017 - 05/2020

Color: Piano lacquer black

Recessed recess 10� radio display: 242.5 x 147 mm
Installation opening 9� radio display: 218.50 mm x 130 mm
Installation cutout 7� radio display: 178mm/173mm x 102mm/98mm

The following signals are available:

Vehicles that are re-imported or vehicles with different software may be incompatible in terms of features.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed signal
green: ground GND handbrake signal

Total output load: 100 mA max.

Current requirement greater than 100 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel remote control

Climate control visualization
Visualization of optical PDC
CAR Menu Supported Vehicle Settings

Optional:

Adapter reversing camera VW MIB II PQ MQS > Article: 771324-1037
E-Call maintenance MAN/Seat/Skoda/VW 52Pin Quadlock > Article: 1424-28

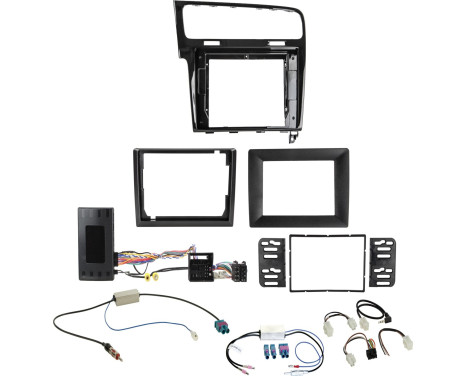

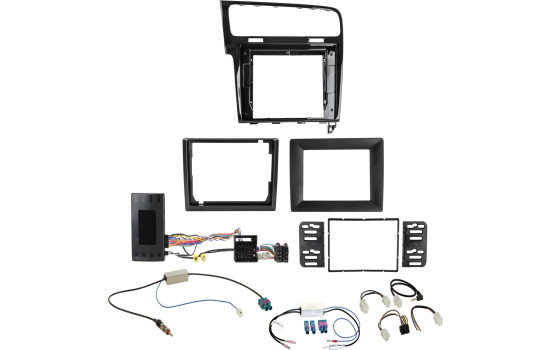

Scope of delivery:

10" radio panel VW Golf VII(AU) 2012-2020 Kit 9"/7" devices > Article: 381320-38-3
Info adapter MAN TGE/Seat/Skoda/VW 52Pin Quadlock LFB > Article: 43uvw04
LFB cable 42s/acv > Multilead various devices/Pioneer loose > Article: 42ctmultilead3-0
Antenna adapter Fakra(m)(Set)>DIN(m) 12V Phantom LEONI loose > Article: 1524-70-1-0
Antenna adapter Fakra(m)(double)>DIN(m) 8.5V LEONI loose > Article: 1524-29-1-0

Suitable for:
Volkswagen Golf 7 2012-2020

---

Colour	Piano black
application	Ready
Type	2-DIN
Warranty	2 years
