9"/7" Kit VW Polo 04/2014-07/2017 black i-dapter/antenna

2 DIN Installation Kit Volkswagen Polo

With the info adapter, when the original radio is replaced, the visual display of vehicle functions, such as parking sensors, air conditioning, and seat heating.

The vehicle's steering wheel remote control is also supported and is essential to configure the adapter!

Note that in some cases not all functions are supported. For example, Trailer Assist, E Call, or other driver assistance systems.

Check the vehicle menu in advance for various settings!

Ensure that the original factory radio specified by us and the shown adapter plug match the vehicle's equipment.

Remark:

CAN Bus

connector: 52-pin Quadlock VAG
connector: OEM SWC > 3.5 mm connection / loose wire
connector OEM antenna Fakra(v) > DIN(m)
connector: OEM rear-view camera > RCA(f) ochre
connector: OEM USB > USB-A

blue: +12V antenna remote control

Before installation, check the phantom power voltage of the antenna by measuring it with an OEM device:
vehicles with 8.5V antenna system > article: 1524-28-1-0
vehicles with +12V antenna system > article: 1524-70-1-0

vehicle settings only possible with extra interface

vehicles with MIB-II systems

7"/9" HU
7"/9" HU with short housing
7"/9" modular HU with display and silverbox

7" HU assembly without metal basket without HU finishing frame

HU assembly with customized accessories
Display assembly with custom accessories

i-adapter connection:
purple/white: +12V reverse signal
RCA(m) ochre: reversing camera input HU retrofit

visualization i-adapter settings > retrofit HU reversing camera input
OPS visualization > HU reversing camera input retrofit
Klinatronik visualization > HU reversing camera input retrofit

vehicles with SWC i-adapter settings:
Press and hold the SWC button upwards
alternative with item: 43x-remote control

vehicles without SWC i-adapter settings required accessories:
i-dapter-accessories remote control > interface-settings: item: 43x-remote-control

camera image or i-dapter settings and visualization not available:
Connect an additional GND signal to the RCA outer conductor of the camera and HU connector.

vehicles with parking assistance for PDC > front PDC is displayed on the screen after starting
leaves the display > via vehicle PDC switch

The +12V reverse signal is switched off from 3 km/h.

camera image or i-dapter settings and visualization not available:
Connect an additional GND signal to the RCA outer conductor of the camera and HU connector.

vehicles without reinforced system

Not for vehicles:
with OEM reinforced system
with open dashboard
without OEM preparation > SWC / speakers / HU

DIP switch settings for the manufacturer of the retrofit device (see the manual)

Application in vehicles:

VW Polo V (6R) 04/2014 - 07/2017
Color: black

Installation opening 9" HU display: 230 mm/220 mm x 130 mm
Installation opening 7" HU display: 178 mm/173 mm x 102 mm/98 mm

The following signals are available:

Imported vehicles or vehicles with different software may not be compatible with certain functions.

red: +12V contact terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed pulse signal
green: GND parking brake signal

Output load capacity: max. 250 mA

current requirement more than 250 mA:
1 relay coil resistor 75 Ohm min.
2 relay coil resistor 150 Ohm min.

SWC

climate control visualization
OPS visualization
CAR vehicle settings supported

adapter plate with workshop tools

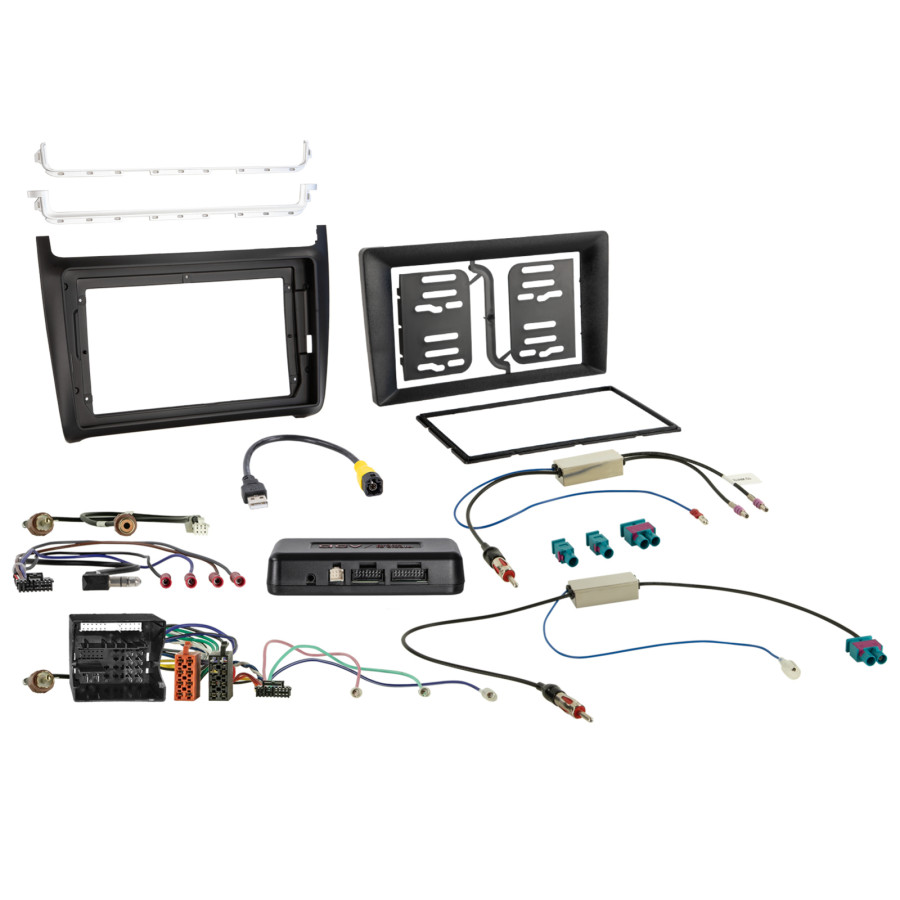

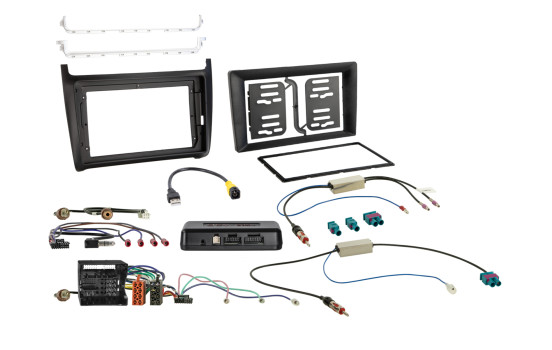

Scope of delivery:

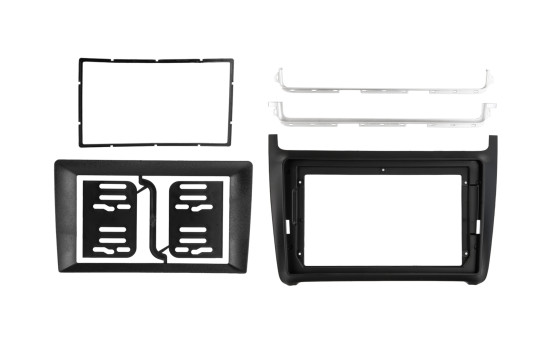

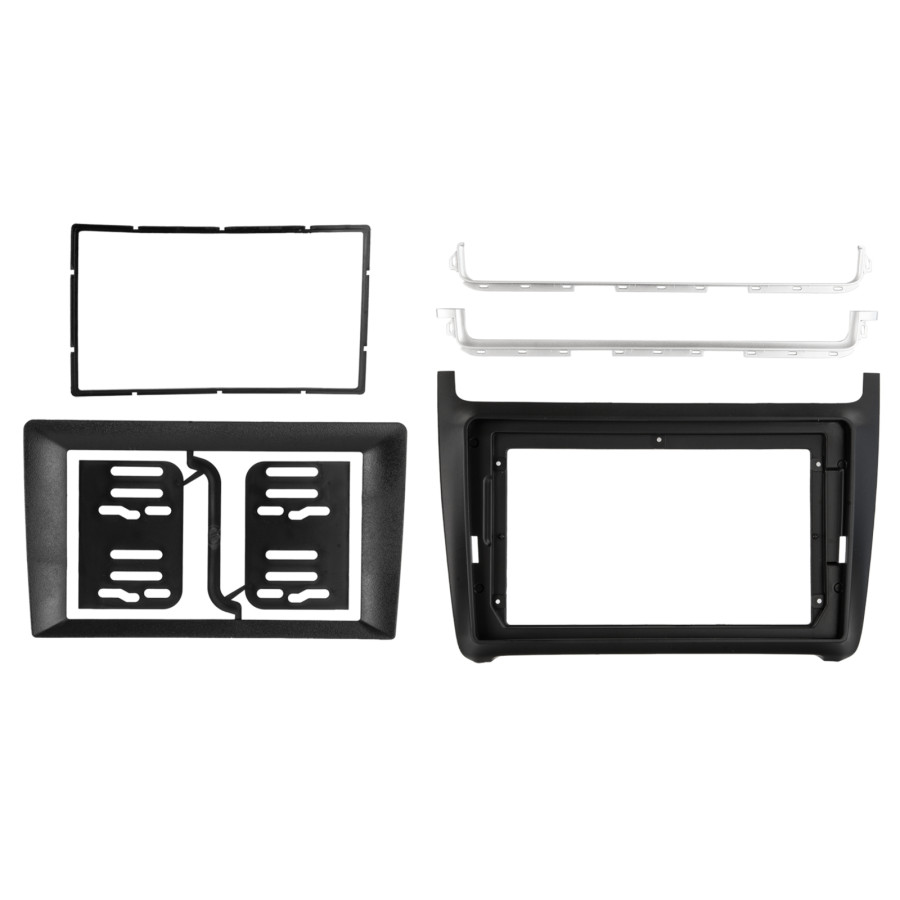

9" dashboard panel VW Polo(6R) 04/2014-07/2017 black > item: 381320-90-1
9" dashboard panel accessory 9">7 display reduction > item: 271000-46

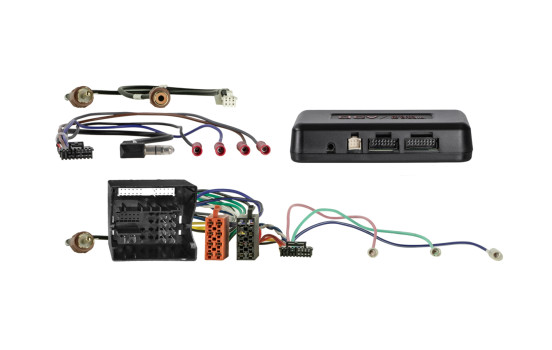

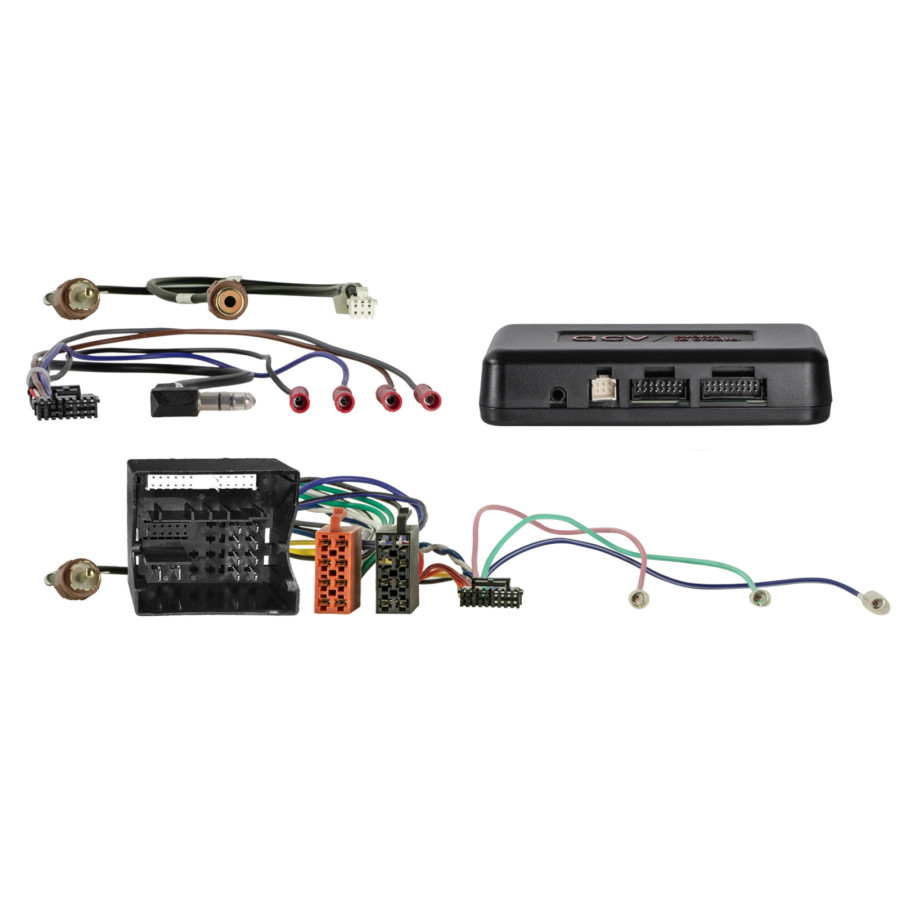

i-dapter MAN TGE/Seat/Skoda/VW 52-pin Quadlock Multilead > article: 43xvw04

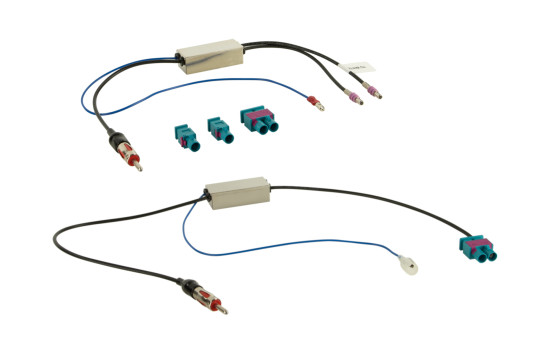

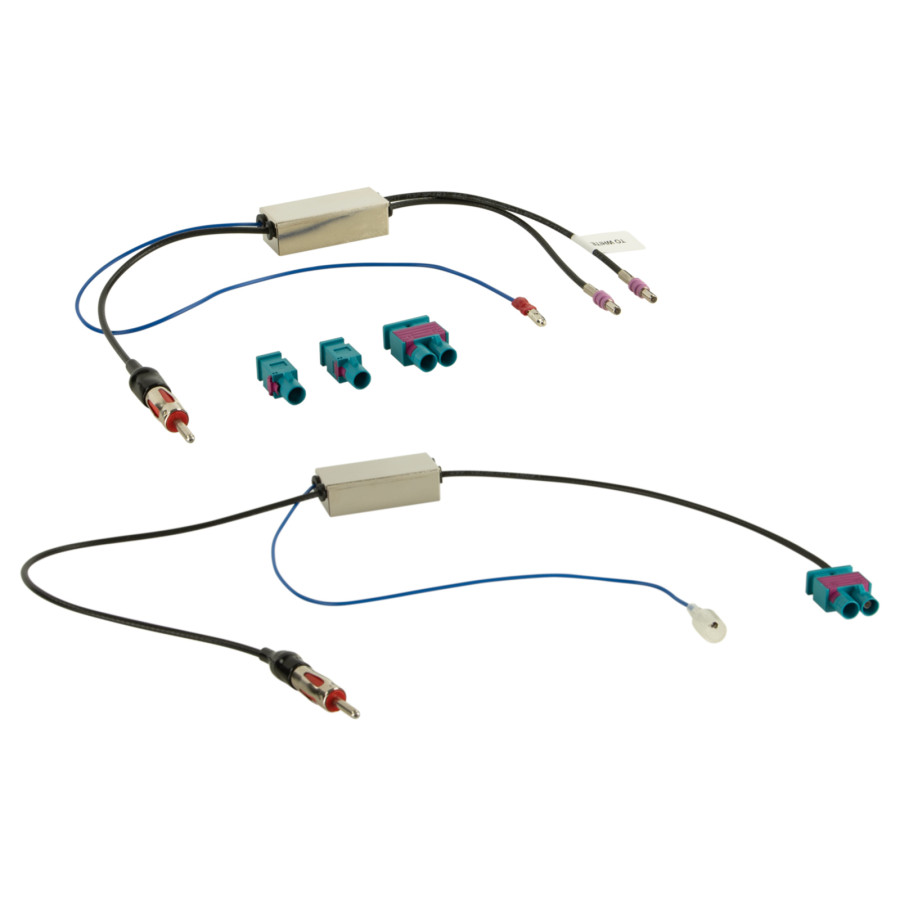

Antenna adapter Fakra(m)(set)>DIN(m) 12V phantom LEONI bulk > article: 1524-70-1-0
Antenna adapter Fakra(m)(double)>DIN(m) 8.5V LEONI bulk > item: 1524-28-1-0

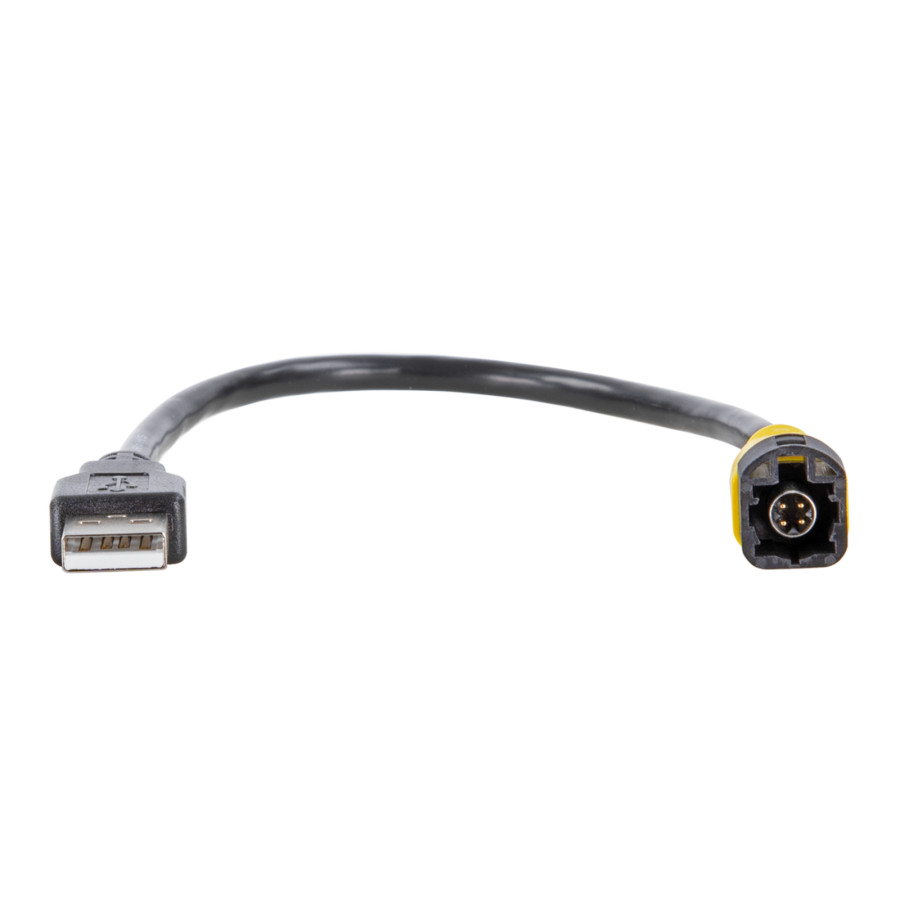

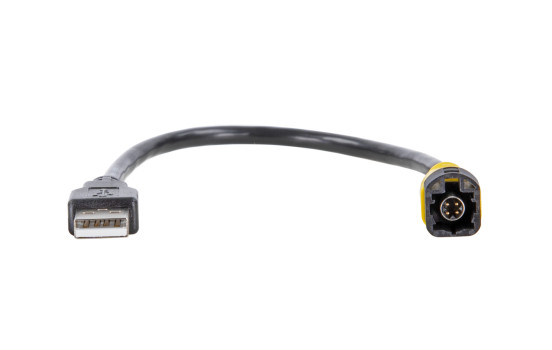

USB adapter VW various vehicles LVDS yellow>USB-A > item: 44-1324-006

Suitable for:
Volkswagen Polo 2014-2017

---

Colour	Black
application	Ready
Type	2-DIN
Warranty	2 years
