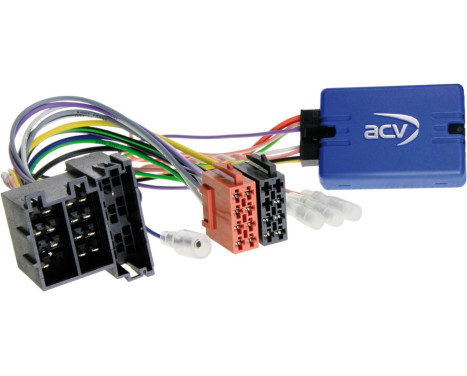

SWI Alfa Romeo 159/ Brera/ Spider - Fiat Stilo - Lancia Musa/ Ypsilon

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the illustrated connector of the adapter with
that in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Notes:
CAN bus

Connection: ISO / Mini ISO

Vehicles with CAN Bus power ISO connector
Vehicles with OEM sound system


Vehicles with Blue&Me > Blue&Me module must remain installed

blue/white: +12V Amp amplifier remote control*

Suitable for the following vehicles:

Alfa Romeo
Alfa Romeo 159 (939) 09/2005 - 11/2011
Alfa Romeo Brera (939) 01/2006 - 10/2010
Alfa Romeo Spider (939) 01/2007 - 10/2010

Fiat
Fiat Stilo (ZAF 192 Facelift) 02/2003 - 01/2008**
(Stilo from October 2004 and without Visteon Oem radio)

Lancia
Lancia Musa (ZAL 350) 11/2004 - 12/2010
Lancia Ypsilon (UAL 843) 10/2006 - 08/2010

The following signals are given:

Handbrake signal
Reverse signal
Contact voltage +15
Speed

Steering wheel controls

*Active system adapter Alfa Romeo/Lancia ISO>ISO > Article: 13-1001-50
*Active system adapter various vehicles ISO>ISO > Article: 13-1190-50
**Vehicles without Visteon OEM unit

Connection cable for the following radio manufacturers:

LFB ACV cable > Alpine connection: 42ctalpinelead
LFB ACV cable > Parrot 4 pin: 42ctasteroidlead
LFB ACV cable > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
LFB ACV cable > Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
LFB ACV cable > Clarion connection: 42ctclarionlead
LFB ACV cable > JVC 1 cable/jack: 42ctjvclead
LFB ACV cable > Kenwood 1 cable: 42ctkenwoodlead
LFB ACV cable > Multilead various devices: 42ctmultilead
LFB ACV cable > Multilead various devices/Pioneer 2022>: 42ctmultilead3
LFB ACV cable > Multilead various devices/Pioneer 2022>: 42ctmultilead5
LFB ACV cable > Panasonic 1 cable: 42ctpanasoniclead
LFB ACV cable > Blaupunkt/Kenwood/Pioneer connection: 42ctpioneerlead
LFB ACV cable > Pioneer AVH/DMH/SPH 2022> connection: 42ctpioneerlead2
LFB ACV cable > Blaupunkt/Kenwood/Sony Jack: 42ctsonylead
LFB ACV cable > XZent/Zenec 1 cable: 42ctzeneclead


Suitable for:
Universal
Alfa Romeo 159 2005-2012
Alfa Romeo Brera 2006-2011
Alfa romeo Spider 2006-2011
Fiat Stilo 2001-2007
Lancia Musa 2004-2012
Lancia Ypsilon 2003-2011

---

Warranty

2 years
