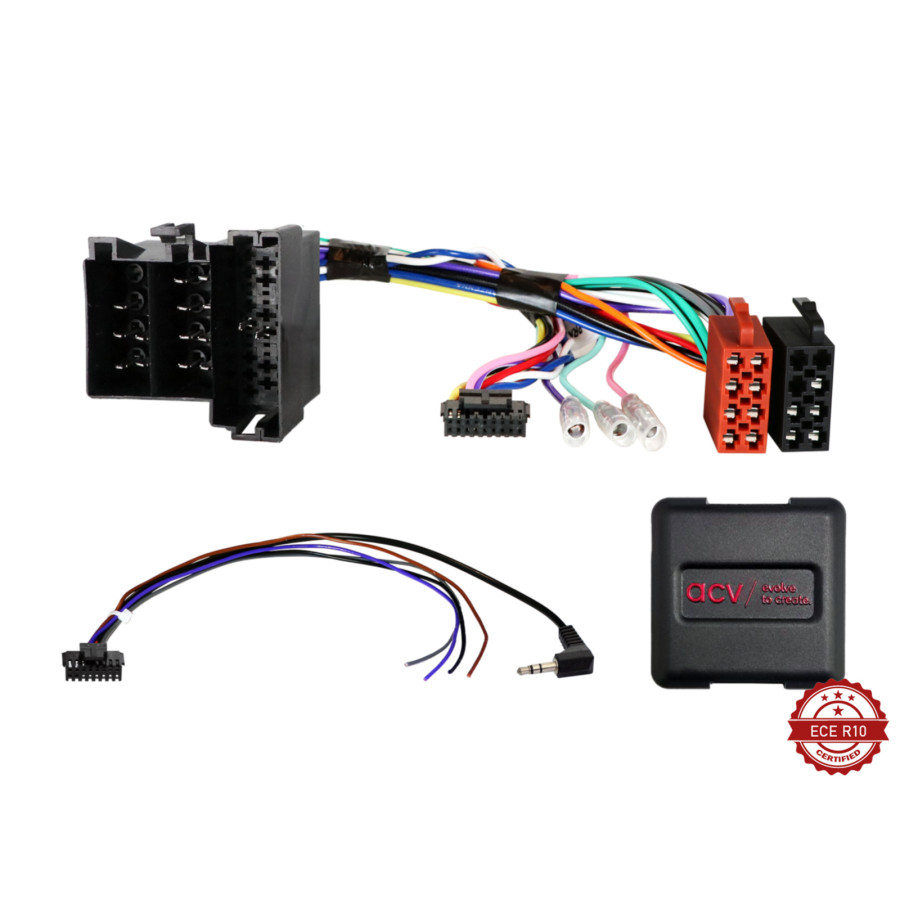

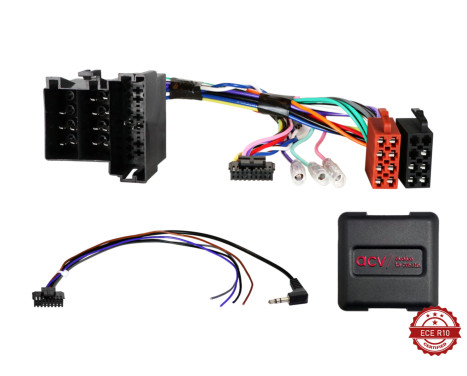

SWI Alfa Romeo/Citroen/Fiat ISO/Mini ISO Multilead (42sct00 5)

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the illustrated connector of the adapter with
which in your car to ensure that you have the right one.

Also check if one of the
The specified original factory radio is installed in your vehicle!

Remark:

analog SWC
CAN bus

connector: ISO / Mini-ISO
connector: OEM SWC > 3.5 mm connection / loose wire

vehicles with CAN bus ISO power connector
vehicles with analog SWC RC-A/GND/RC-B Mini-ISO connector, pins 10/11/12
vehicles with Blue&Me > module must remain installed

vehicles without +12V ignition terminal 15

Alfa Romeo vehicles with BOSE OEM amplified system:
+12V Amp amplified system remote control > connector C1 Pin 6

Active system adapter Alfa Romeo/Lancia ISO>ISO > item: 13-1001-50
Active system adapter various vehicles ISO>ISO > item: 13-1190-50

Citroën / Fiat / Peugeot vehicles:
vehicles with 6 SWC buttons / functions

dip switch settings for the manufacturer of the retrofit device (consult the manual)

Application per vehicle:

Alfa Romeo
Alfa Romeo 147 (973) 09/2007 - 04/2010
Alfa Romeo GT (937) 02/2004 - 10/2010

Lemon
Citroën Jumper (250) 10/2006 - 11/2011
Citroën Relay (250) 2006 - 2011*

Fiat
Fiat Ducato (ZAF 250) 06/2006 - 06/2011**

Peugeot
Peugeot Boxer (Y) 02/2007 - 07/2011**

The following signals are available:

Re-imported vehicles or vehicles with different software may be incompatible in terms of functions.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed pulse signal
green: GND parking brake signal

Output load capacity: max. 250 mA

current consumption more than 250 mA:
1 relay coil resistor min. 75 Ohm
2 relay coil resistance min. 150 Ohm

SWC

vehicles with open dashboard
vehicles with OEM HU

Suitable for:
Alfa Romeo 147 2007-2010
Citroën Jumper 2006-2011
Citroën Relay 2006-2011
Fiat Ducato 2006-2011
Peugeot Boxer 2007-2011
Peugeot RCZ 2010-2015
Alfa Romeo GT 2004-2010

---

Warranty	2 years
for brand	CAN-bus
