ACV

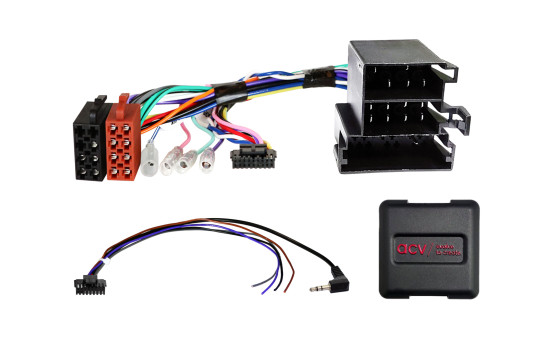

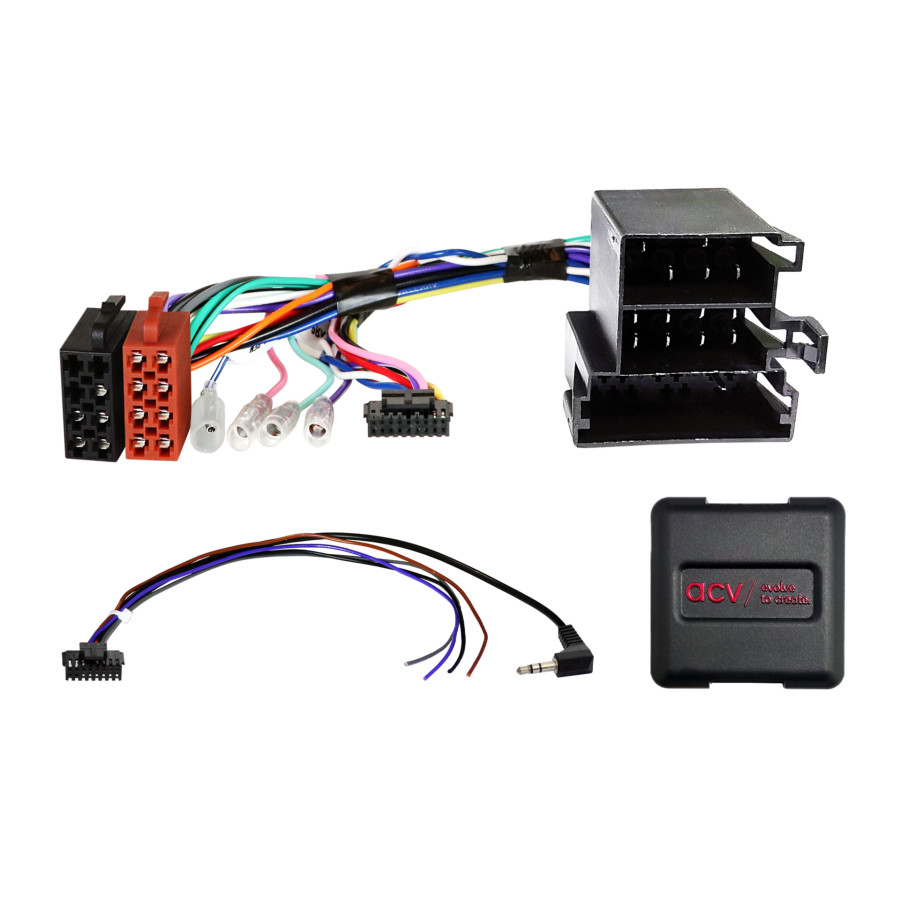

SWI Alfa Romeo/Fiat/Lancia Iso/Mini Iso Multilead (42sar002)

SWI Alfa Romeo/Fiat/Lancia Iso/Mini Iso Multilead (42sar002)

Product number: 2003620

Manufacturer number: 42xar002

EAN: 4026724674279

£ 70.36

Incl. VAT
View product specifications
In stock
Delivery 27-12-2025

Free Shipping

Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Steering wheel control interface

    Retain the original steering wheel remote control functions,
    if you trade in your factory radio for an aftermarket radio.
    Compare the adapter's illustrated connector with
    the one in your car to make sure you have the right one.

    Also check if any of the
    specified original factory radio is installed in your vehicle!

    Remark:

    CAN bus

    Connection: ISO / Mini ISO
    Connection: OEM steering wheel remote control > 3.5mm jack / loose cable

    Vehicles with CAN bus power ISO connector
    Vehicles with Blue&Me > Module must remain installed

    Vehicles with/without OEM sound system

    blue/white: +12V amplifier remote control*

    DIP switch settings for the aftermarket device manufacturer (see BDA)

    Suitable for the following vehicles:

    Alfa Romeo
    Alfa Romeo 159 (939) 09/2005 - 11/2011
    Alfa Romeo Brera (939) 01/2006 - 10/2010
    Alfa Romeo Spider (939) 01/2007 - 10/2010

    Fiat
    Fiat Stilo (ZAF 192) 02/2003 - 01/2008**

    Lancia
    Lancia Musa (ZAL 350) 11/2004 - 12/2010
    Lancia Ypsilon (UAL 843) 10/2006 - 08/2010

    The following signals are available:

    Vehicles that are re-imported or vehicles with different software may be functionally incompatible.

    red: +12V ignition terminal 15
    orange: +12V lighting terminal 58
    purple/white: +12V reversing signal
    pink: speed signal
    green: ground GND handbrake signal

    Output load capacity: 250 mA max.

    Current requirement greater than 250 mA:
    1 relay Coil resistance 75 Ohm min.
    2 relays Coil resistance 150 Ohm min.

    Steering wheel remote control

    *Adapter active system Alfa Romeo/Lancia ISO>ISO > Article: 13-1001-50
    *Adapter active system various vehicles ISO>ISO > Article: 13-1190-50
    **Vehicles without OEM device from Visteon

    Suitable for:
    Universal
    Lancia Delta 2008-2014
    Alfa Romeo 159 2005-2012
    Alfa Romeo Brera 2006-2011
    Alfa Romeo Spider 2006-2011
    Fiat Stilo 2001-2008
    Lancia Musa 2004-2010
    Lancia Ypsilon 2006-2010
    Warranty2 years

  • Applicability

    Universally applicable

  • Manufacturer

    ACV

  • Delivery time

    Expected delivery date:

    27-12-2025

  • Questions?

    • 2003620. SWI Alfa Romeo/Fiat/Lancia Iso/Mini Iso Multilead (42sar002)

    • In order to help you with your request, we require extra information about your vehicle. We would like to know: brand / model / type, year of manufacture, coach work, fuel, automatic transmission or manual, number of doors, VIN.
