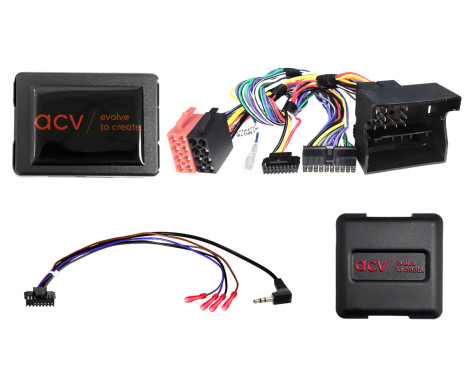

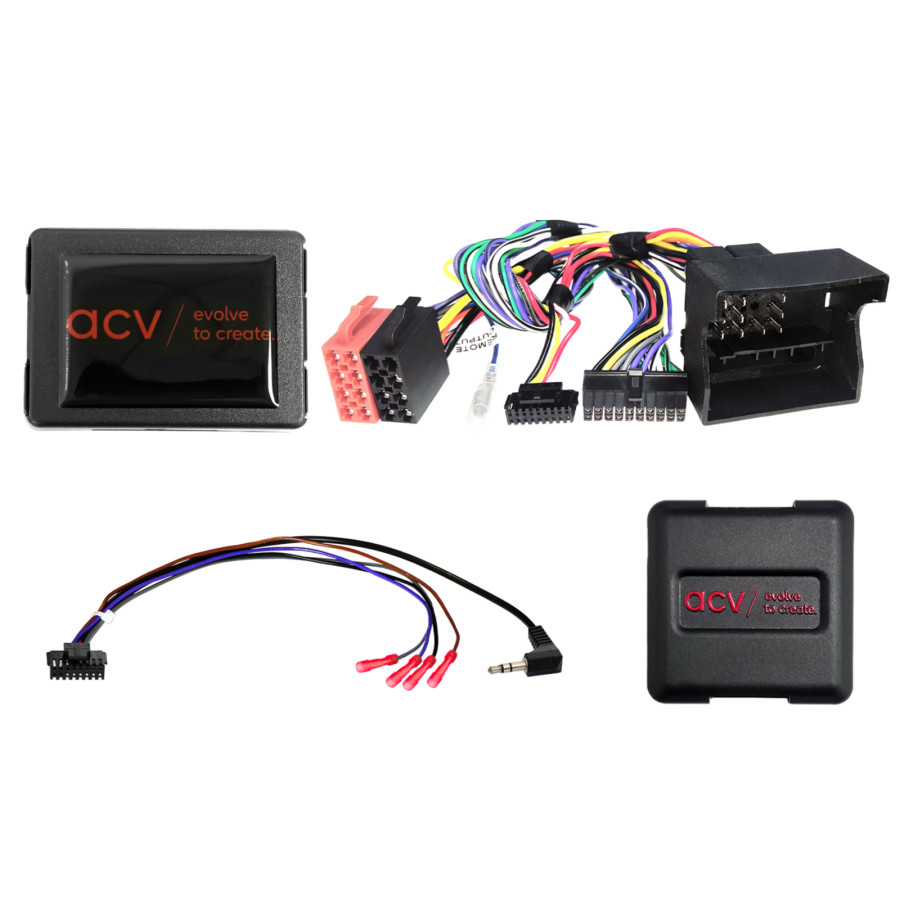

SWI BMW 3-Series / 5-Series / X3/ X5 / Z4 - Mini Cooper IBus/ Amp with multilead (42sbm007)

Ensure that the original controls on the steering wheel are retained when you the
Replaces factory radio with an aftermarket HU.
Depending on the vehicle equipment and the features and software available of the retrofit-
car radio certain control functions may be missing or replaced by other functions
replace
Compare the depicted wiring harness connectors with the connectors in your car and check whether
they fit both visually and technically.
Check if one of the listed OEM car radios was originally installed.
Also check the vehicle functionality, vehicle settings, and SWC functionality beforehand.
the final assembly.
Remark:
I-Bus
connector: 40-pin Quadlock BMW
connector: OEM SWC > 3.5 mm connection / loose wire
connector: OEM amplified system 4-channel > speaker output front/rear*
vehicles with Business OEM head unit
vehicles with OEM reinforced system
vehicles with Professional OEM navigation system:
BMW extension cable Quadlock(f) > Quadlock(m)/antenna 6.5 m > item: 1020-21-6500-0
vehicles without Harman Kadon DSP OEM amplification system
OEM devices must be disconnected:
CD changer / TV tuner / telephone module
dip switch settings for the manufacturer of the retrofit device (consult the manual)
Application per vehicle:
BMW 3 Series (E46) 07/1998 - 02/2007
BMW 5 Series (E39) 09/2000 - 05/2004
BMW X3 (E83) 02/2004 - 08/2010
BMW X5 (E53) 03/2000 - 11/2006
BMW Z4 (E85) 03/2002 - 08/2008**
BMW Mini (R50/R53) 06/2001 - 11/2006
BMW Mini (R52) 07/2004 - 08/2008
The following signals are provided:
Re-imported vehicles or vehicles with different software may differ in terms of functions
be incompatible.
SWC
OEM reinforced system
level regulation
vehicles with soft top
General installation instructions:
Control:
1: Check all control functions and vehicle settings of the OEM HU.
2: Disconnect the OEM HU while de-energizing.
3: Check all interface connections for correctness, de-energized.
Connection and connection sequence:
1: Check the settings and hardware configuration of the interface, with the power off.
2: Check the configuration of the HU connection cable, with the power off.
3: Connect the HU connection cable according to the retro's operating instructions.
4: Connect all other connections according to the instructions for use of the aftermarket.
built-in HU.
5: Connect the entire installation to the vehicle and connect the main connection last.
6: Configure the interface via the software according to the instructions in the product description and in
the manual.
7: Configure the retrofitted HU according to the user manual of the retrofit
built-in device (steering wheel remote control/camera/hands-free kit/phantom power for
the antenna and other parts).
8: Function test of the steering wheel remote control and the vehicle
Changes to the configuration of the interface and the HU connection cable:
1: Change the configuration when de-energized
2: Reconnect, see points 5 through 8 above.
In the event of a malfunction of the interface or the vehicle:
1: Reinstall the OEM HU
2: Operate the OEM HU
3: Disable CAN bus
4: Check the hardware configuration of the interface
5: Reconnection after disabling the CAN bus, see 5 and 6 above.
More connections, changes to connections, alternative connections, connections
of loose cables or connection extensions of loose cables that in the information text or the
The information mentioned in the manual serves solely for guidance and information for the
trained specialized installer.
More connections, changes to the cable configuration of the wiring harness or the use of
alternative connections or connection extensions:
1: Connections and modifications may only be carried out by a trained person.
specialized installer.
2: Connections and modifications must be checked for any before connection.
manufacturer's approvals or manufacturer's warranty conditions affected by the changes
can be influenced.
3: Connections and modifications must be checked for operation and correctness before connection.
checked by measuring them and comparing them with the cable allocation scheme of the
vehicle.

4: Connections and modifications are at the user's own responsibility
carried out, without guarantee of functionality.

5: Connections and modifications are carried out at your own responsibility, without
any warranty regarding damage to the vehicle, the aftermarket device or
the interface

6: Modifications to the pre-assembled wiring harness may void the product warranty.
invalidate

Suitable for:
BMW 3 Series 1998-2007 (E4-)
BMW 5 Series 2000-2004 (E3-)
BMW X5 2000-2006 (E5-)
Mini Cooper 2001-2006
BMW X3 2004-2010 (E8-)
BMW Z4 2002-2008 (E8-)

---

Warranty	2 years
for brand	Most / Quadlock
