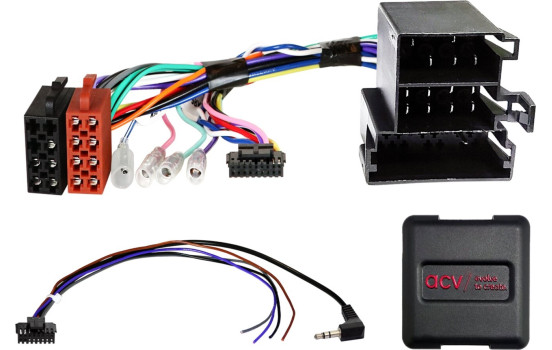

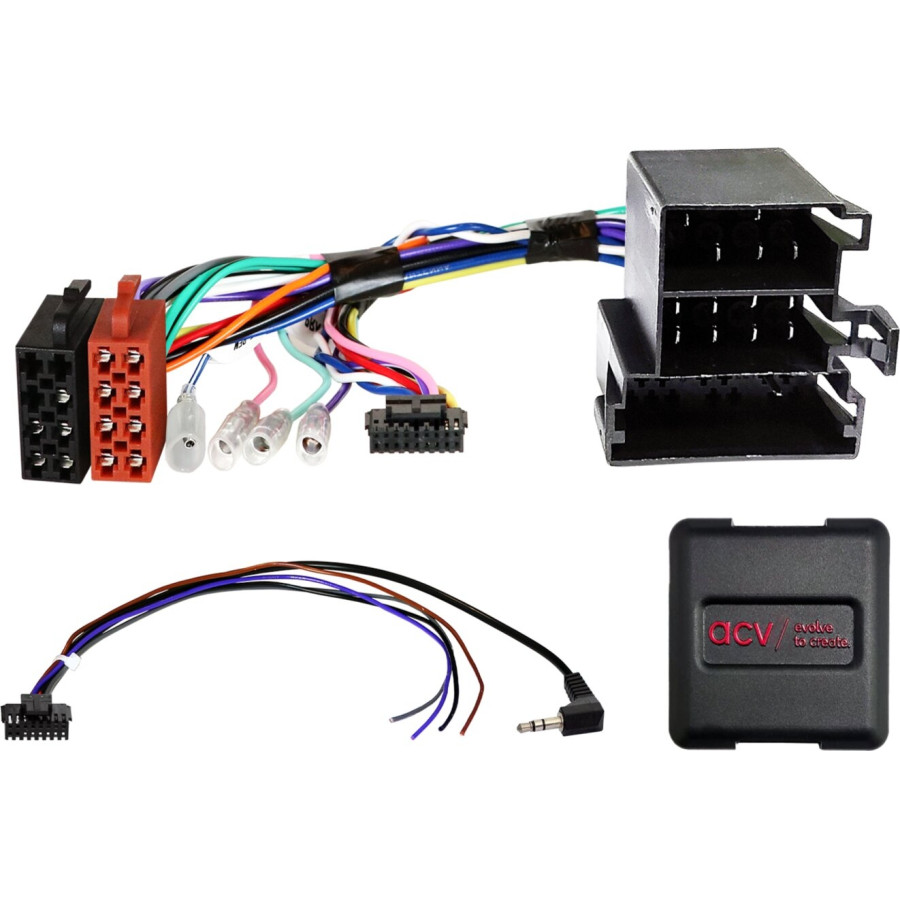

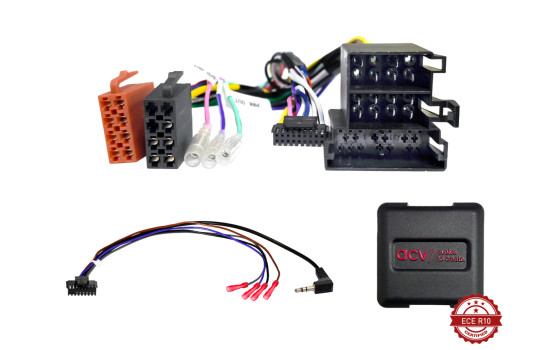

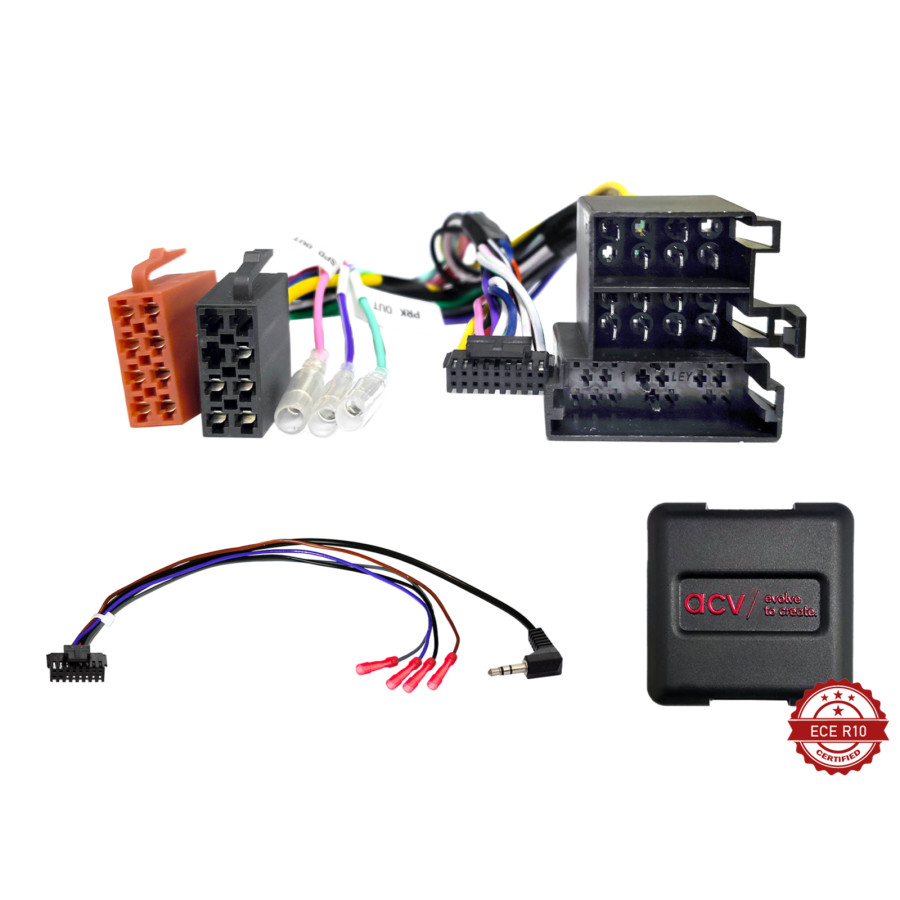

SWI Citroen/Fiat/Opel/Peugeot ISO/Mini ISO Multilead (42sfa004)

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the adapter's illustrated connector with
the one in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Remark:

CAN bus

Connection: ISO / Mini ISO
Connection: OEM steering wheel remote control > 3.5mm jack / loose cable

blue: +12V Amp Remote Control

Vehicles with Blaupunkt / Bosch / Delphi / VDO OEM device
Vehicles with CAN bus in ISO power connector

Vehicles without analogue steering wheel remote control in mini ISO connector C-2
Vehicles without a Visteon/Daiichi/UConnect OEM device
Vehicles without Magneti Marelli OEM navigation

Vehicles with Blue&Me > Blue&Me module must remain installed

Vehicles with OEM sound system:
Adapter active system Alfa Romeo/Lancia ISO>ISO > Article: 13-1001-50
Adapter active system different vehicles ISO>ISO > Article: 13-1190-50

DIP switch settings for the retrofit device manufacturer (see BDA)

Suitable for the following vehicles:

Alfa Romeo
Alfa Romeo Giulietta (940) 05/2010 - 10/2013**
Alfa Romeo MiTo (955) 09/2008 - 10/2013***

Lemon
Citroën Jumper (250) 11/2011 - 05/2014*
Citroën Nemo (A.) 08/2008 - 12/2015
Citroën Relay (250) 2011 - 2014

Fiat
Fiat 500 (ZAF 312) 10/2007 - 07/2015
Fiat Doblo (ZAF 263) 02/2010 - 01/2015
Fiat Ducato (ZAF 250) 06/2011 - 05/2014*
Fiat Fiorino (ZAF 225) 04/2008 - 07/2016
Fiat Grande Punto (ZAF 199) 10/2005 - 05/2010
Fiat Idea (ZAF 350) 11/2005 - 01/2008
Fiat Punto (ZAF 199) 05/2010 - 12/2010
Fiat Punto (ZAF 199) 01/2011 - 01/2012
Fiat Punto Evo (ZAF 199) 09/2009 - 01/2011
Fiat Qubo (ZAF 225) 09/2008 - 07/2016

Ford
Ford Ka (RU8) 02/2009 - 05/2017

Opel
Opel Combo D (Combo D) 01/2012 - 08/2018

Peugeot
Peugeot Bipper (A) 12/2007 - 12/2015
Peugeot Boxer (Y) 07/2011 - 05/2014*

The following signals are provided:

Vehicles that are re-imported or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reversing signal
pink: speed signal
green: ground GND handbrake signal

Output load capacity: 250 mA max.

Current requirement greater than 250 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel remote control

*Vehicles with 8 buttons/functions for steering wheel remote control
*Vehicles with Delphi 2-DIN OEM device piano lacquer with central control button
**Vehicles with Bosch OEM device
***Vehicles with OEM Blaupunkt device

Suitable for:
Fiat 500 2007-2015
Fiat Punto 2004-2018
Fiat Grande Punto 2005-2009
Fiat Punto EVO 2009-2011
Fiat Ducato 2012-2015
Fiat Doblo 2009-2015
Fiat Idea 2006-2012
Fiat Qubo 2008-2016
Fiat Fiorino 2008-2016
Citroën Nemo 2008-2015
Peugeot Bipper 2007-2015
Opel Combo 2012-2018
Alfa Romeo MiTo 2008-2013
Alfa Romeo Giulietta 2010-2013
Ford Ka 2009-2017

---

Warranty

2 years
