SWI Fiat Ducato (250) 2006-2011 Mini ISO

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.

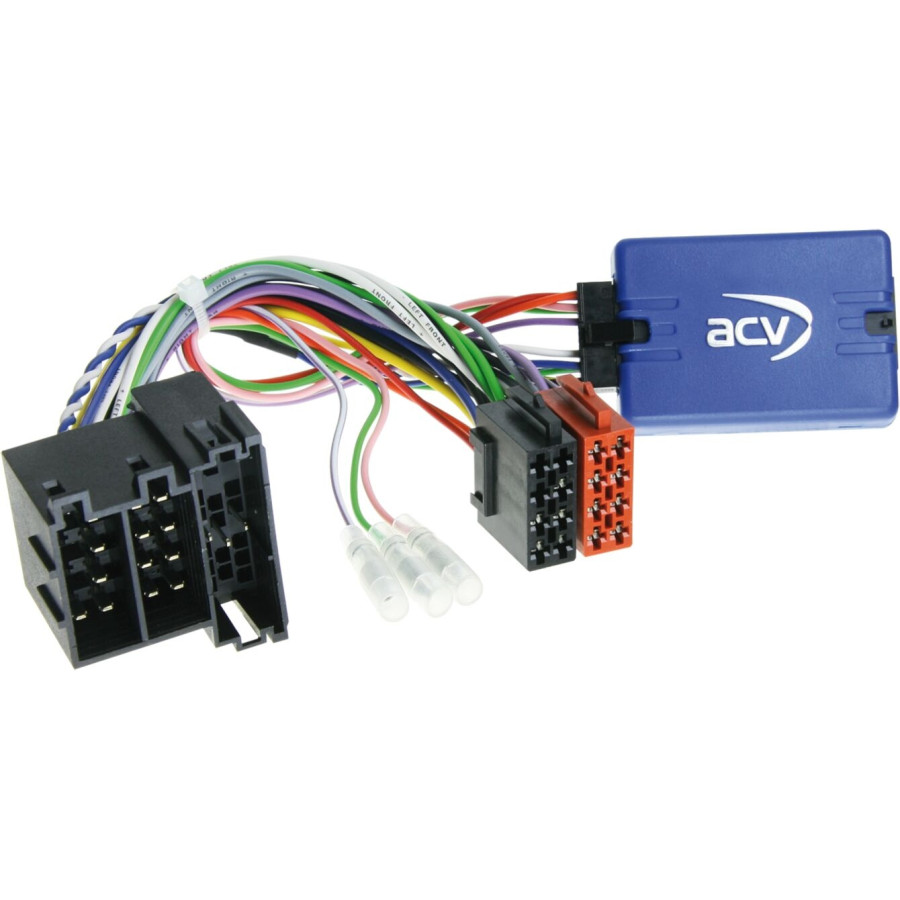

Compare the illustrated connector of the adapter with
that in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Steering wheel control adapter

Remark:

analog
CAN bus

Connection: ISO / Mini ISO

Vehicles with OEM unit
Vehicles with 6 steering wheel remote control buttons/functions
Vehicles with CAN bus and analog LFB in mini-ISO connector C2 pin 10/11/12

Vehicles with Blue&Me > Silverbox module must remain installed

Suitable for the following vehicles:

Fiat Ducato (ZAF 250) 06/2006 - 06/2011

The following signals are provided:

Imported vehicles or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
green: ground GND handbrake signal

Load capacity of total outputs: 100 mA max.

Current requirement greater than 100 mA:
1 relay coil resistance 75 Ohm min.
2 relay coil resistance 150 Ohm min.

Steering wheel remote control

Connection cable for the following radio manufacturers:

LFB cable 42s/acv > Alpine connection: 42ctalpinelead
LFB cable 42s/acv > Parrot 4 Pin: 42ctasteroidlead
LFB cable 42s/acv > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
LFB cable 42s/acv > Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
LFB cable 42s/acv > Clarion connection: 42ctclarionlead
LFB cable 42s/acv > JVC 1 cable/jack: 42ctjvclead
LFB cable 42s/acv > Kenwood 1 cable: 42ctkenwoodlead
LFB cable 42s/acv > Multilead various devices: 42ctmultilead
LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead3
LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead5
LFB cable 42s/acv > Panasonic 1 cable: 42ctpanasoniclead
LFB cable 42s/acv > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
LFB cable 42s/acv > Pioneer AVH/DMH/SPH 2022> connection loose: 42ctpioneerlead2
LFB cable 42s/acv > Devices with LFB learning function: 42ctsmartlead
LFB cable 42s/acv > Blaupunkt/Kenwood/Sony connection: 42ctsonylead
LFB cable 42s/acv > XZent/Zenec 1 cable: 42ctzeneclead

Suitable for:
Universal
Fiat Ducato 2006-2011

---

Warranty

2 years
