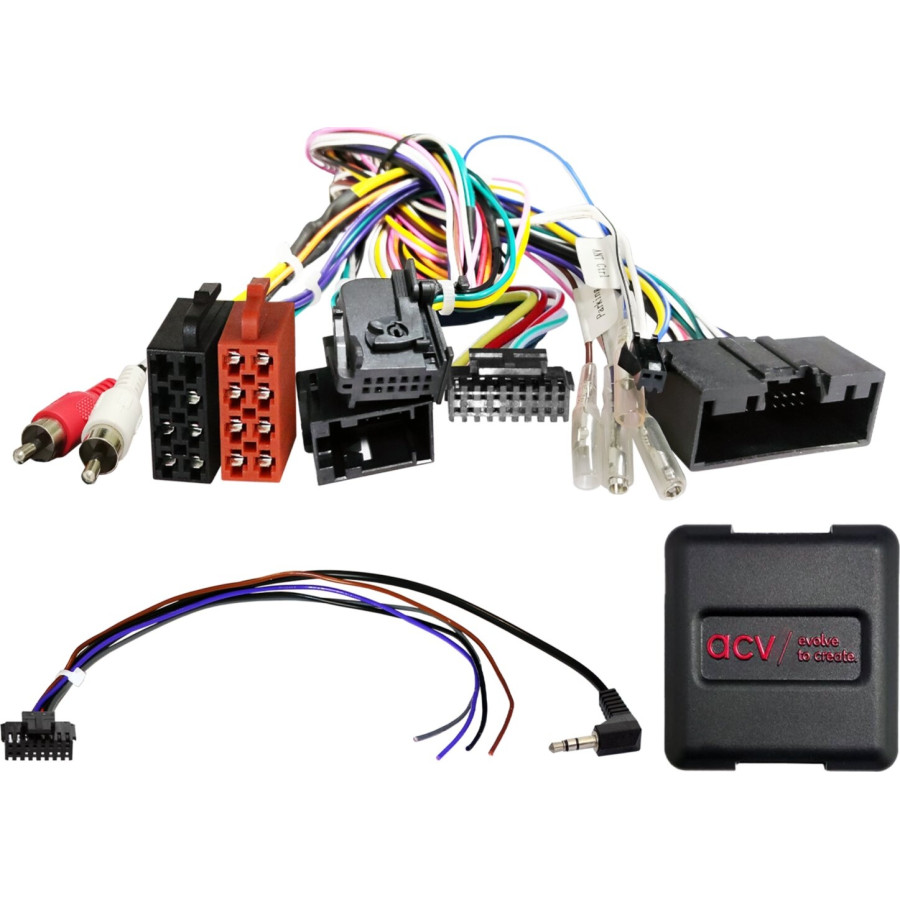

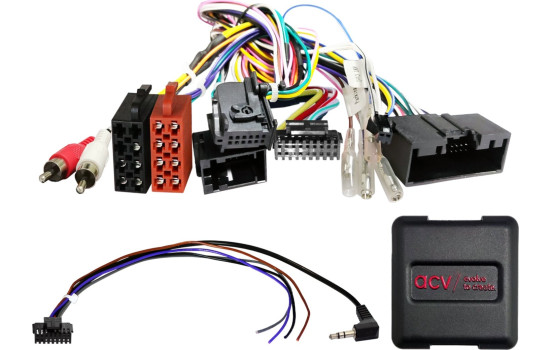

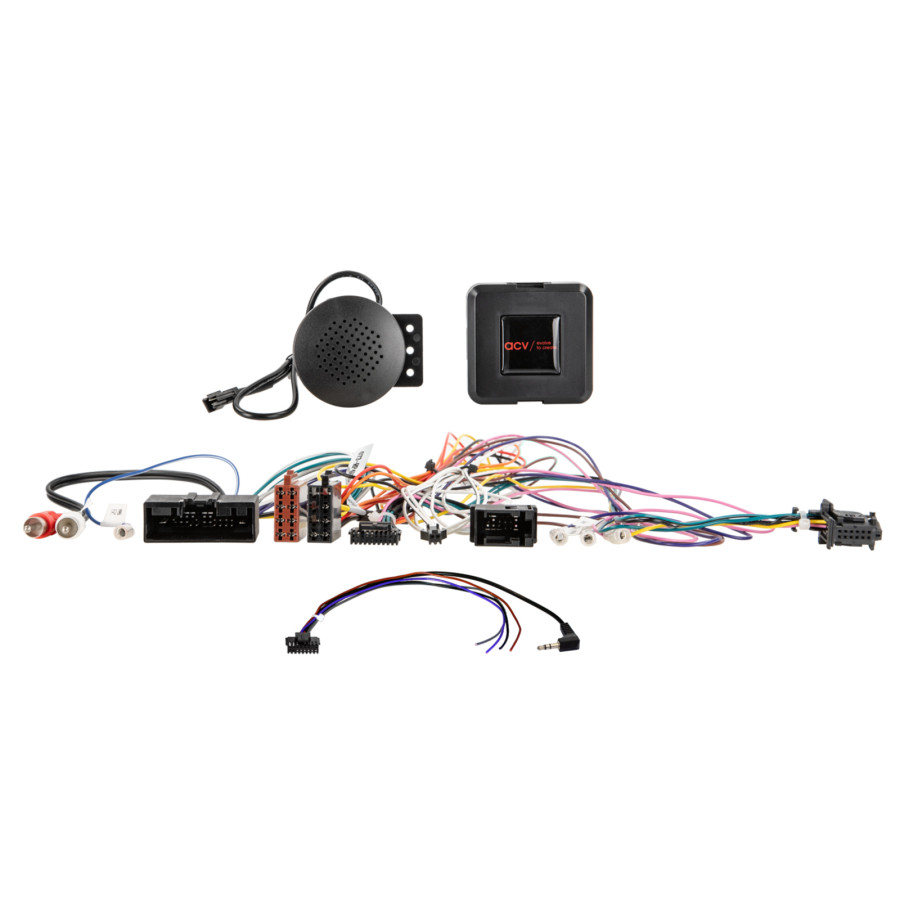

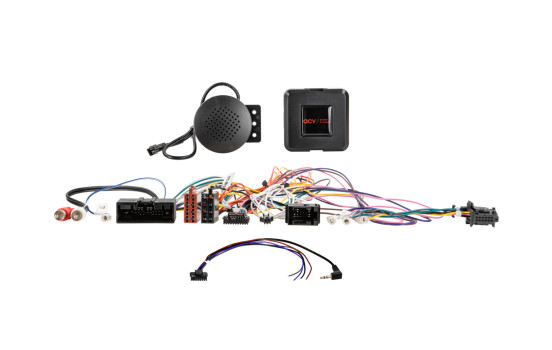

SWI Ford Various Vehicles 24Pin/Display Multilead

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the adapter's illustrated connector with
the one in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Remark:

CAN bus

Connection: 24-pin Ford connector
Connection: OEM steering wheel remote control > 3.5mm jack / loose cable
Connection: AMP display connector > OEM display
Connection: OEM display connector > interface
Connection: OEM AUX > Cinch(m) red/white

Vehicles with steering wheel OK and/or voice function button
Vehicles with OEM display*
Vehicles with CD player under the monitor
Vehicles with SYNC > SYNC function not supported
Vehicles with OEM navigation > Interface function not compatible in some cases

Disable SYNC features and BT before installation
SYNC emergency call function is deactivated with BT function

Avoid interference with the vehicle settings on the display:

Turn off the retrofit device
Press the voice dialing button for up to 2 seconds to access the settings menu
Only perform settings as described in the BDA

In case of malfunctions in the setting mode:

Reset after CAN bus standstill

Display connection may need to be extended

Supported vehicle settings
Vehicles with small display and 2 setting buttons on the right > Date setting not supported

DIP switch settings for the retrofit device manufacturer (see BDA)

Suitable for the following vehicles:
Ford B-MAX (JK8) 10/2012 - 09/2017
Ford C-MAX (DXA) 11/2010 - 05/2015*****
Ford C-MAX (DXA) 06/2015 - 12/2019*****
Ford Ecosport (JK8) 02/2014 - 10/2017
Ford Fiesta (JA8/JR8) 01/2013 - 06/2017
Ford Focus (DYB) 09/2011 - 09/2014
Ford Focus (DBY) 10/2014 - 08/2018
Ford Kuga (DM2) 03/2013 - 01/2017****/*****
Ford Kuga (DM2) 01/2017 - 12/2019****/*****
Ford Ranger (2AB) 12/2011 - 12/2015
Ford Transit Connect (PJ2) 12/2013 - 05/2018***
Ford Transit Custom (FAC/FDA) 08/2012 - 06/2016**
Ford Transit Tourneo Connect (PJ2) 12/2013 - 05/2018***
Ford Transit Tourneo Custom (FAC/FAD) 08/2012 - 06/2016**
Ford Transit (V363) (FCA/FAD) 08/2014 - 06/2016**
Ford Taurus 2008 - 2012

The following signals are given:

Vehicles that are re-imported or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reversing signal
pink: speed signal
green: ground GND handbrake signal

Output load capacity: 250 mA max.

Current requirement greater than 250 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel remote control

PDC rear supported
Supported alert tones
Vehicle settings supported

*Vehicles without OEM display LFB Ford various vehicles 24pin without display > Item: 42xfo015 in preparation
**Vehicles with Euro5 emission standard
**Vehicles with Euro6 emission standard LFB Ford various vehicles 24Pin USB/AUX > Article: 42xfo018 in preparation
***Vehicles with small screen
****Vehicles without OEM touchscreen
*****Display connection may need to be extended
*****Vehicles with small display and 2 setting buttons on the right: Date setting not supported

Replacement for the 42fo008

Suitable for:
Ford Ranger 2012-2015
Ford B-Max 2012-2017
Ford Kuga 2013-2019
Ford Fiesta 2012-2017
Ford C-Max 2010-2019
Ford Focus 2011-2018
Ford Transit Custom 2012-2016
Ford Escape 2013-2020
Ford Ecosport 2014-2017
Ford Transit Connect 2013-2018
Ford Taurus 2008-2012

---

Warranty

2 years
