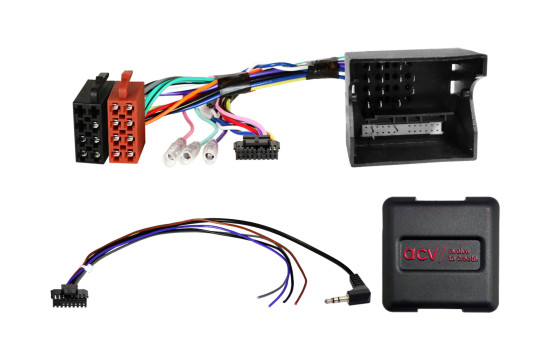

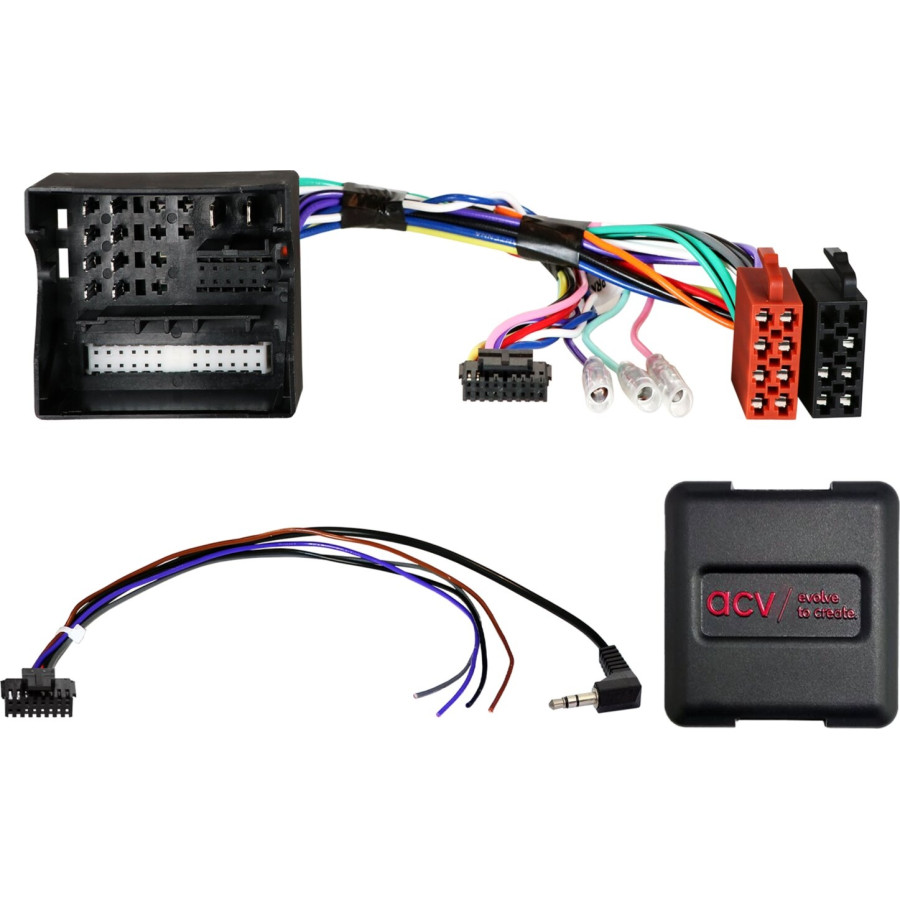

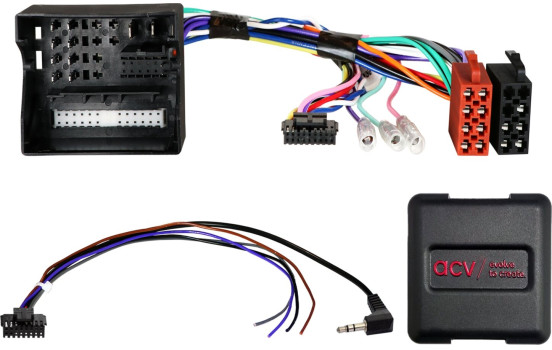

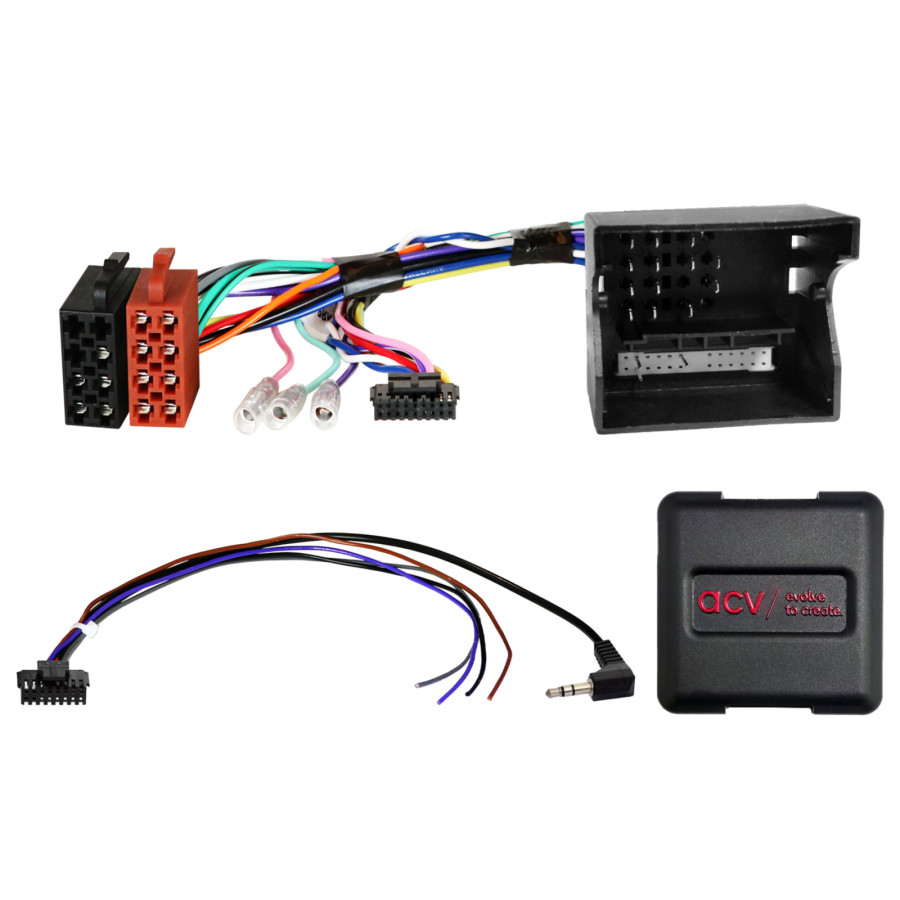

SWI Ford Vehicles 40Pin Quadlock Multilead CAN Bus (42sfo003)

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the adapter's illustrated connector with
the one in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Remark:

CAN bus
analog steering wheel remote control

Connection: 40-pin Quadlock Ford connector
Connection: OEM steering wheel remote control > 3.5mm jack / loose cable

Vehicles with 5000C / 6000CD / 6006CD / Sony OEM device
Vehicles with Audio Systems OEM navigation with front map slot

Vehicles with CAN bus

Current room A:
Pin 16 +12V ignition current Terminal 15 not assigned
Pin 9 CAN-High blue/white (colors may vary)
Pin 10 CAN-Low purple (colors may vary)
MQS room B:
Pin 6 Gray/Yellow Analogue Steering Wheel Remote Control (colours may vary)
Pin 8 Blue Analog Steering Wheel Remote Control GND (colors may vary)
Pin 11 Reversing signal +12V (if present)
Pin 12 Speed pulse signal (if assigned)

Vehicles without 7� OEM color navigation with integrated climate control
Vehicles without CAN bus-supported PDC*

DIP switch settings for the retrofit device manufacturer (see BDA)

Suitable for the following vehicles:

Ford C-Max (DM2) 11/2003 - 05/2007
Ford C-Max (DM2) 05/2007 - 09/2010
Ford Fiesta (JH1/JD3) 10/2005 - 09/2008
Ford Focus (DA3) 11/2004 - 03/2008
Ford Focus (DA3) 02/2008 - 03/2011
Ford Fusion (JU2) 10/2005 - 07/2012
Ford Galaxy II (WA6) 03/2006 - 04/2010
Ford Galaxy II (WA6)05/2010 - 05/2015
Ford Kuga (DM2) 06/2008 - 12/2012
Ford Mondeo III (B4Y/B5Y/BWY) 06/2003 - 04/2005*
Ford Mondeo III (B4Y/B5Y/BWY)05/2005 - 06/2007*
Ford Mondeo IV (BA7) 06/2007 - 10/2010*
Ford Mondeo IV (BA7) 11/2010 - 08/2014*
Ford S-Max (WA6) 06/2006 - 04/2010
Ford S-Max (WA6) 05/2010 - 05/2015
Ford Transit (F**6) 07/2006 - 03/2014
Ford Transit Connect (P*2) 06/2006 - 07/2013

The following signals are given:

Vehicles that are re-imported or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reversing signal
pink: speed signal
green: ground GND handbrake signal

Output load capacity: 250 mA max.

Current requirement greater than 250 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel remote control

*Vehicles with PDC > function test without OEM device
*Vehicles with PDC without function > Article: 42sfo011

Suitable for:
Ford C-Max 2003-2010
Ford Fiesta 2005-2008
Ford Focus 2004-2011
Ford Fusion 2005-2012
Ford Galaxy 2006-2014
Ford Mondeo 2007-2014
Ford S-Max 2006-2014
Ford Transit 2006-2013
Ford Kuga 2008-2012
Ford Transit Connect 2004-2013

---

Warranty

2 years
