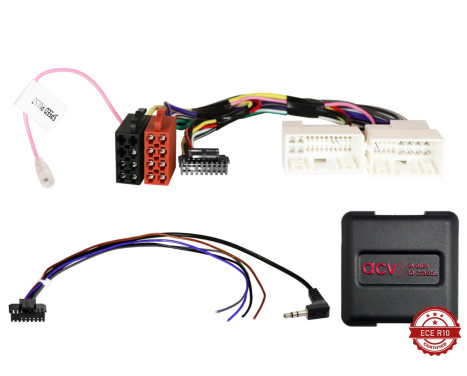

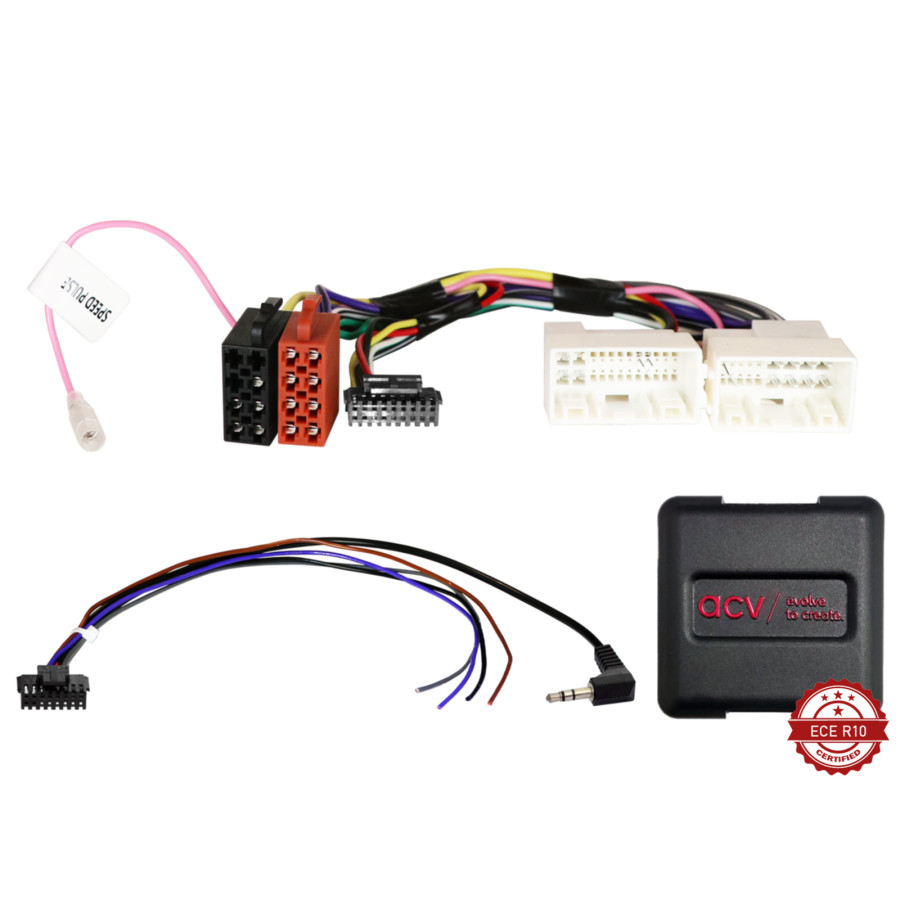

SWI Hyundai/Kia vehicles 24Pin/18Pin Multilead analog (42shy008)

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the illustrated connector of the adapter with
which in your car to ensure that you have the right one.

Also check if one of the
The specified original factory radio is installed in your vehicle!

Remark:

Analog

connection: 24-pin / 18-pin Hyundai connector
Connection: OEM steering wheel remote control > 3.5 mm jack / separate cable

Vehicles without OEM sound system

Vehicles with a different connector pin configuration and vehicles with OEM navigation:

Check the connector pin assignment before connection to prevent malfunctions or defects in the vehicle or the aftermarket unit.

Vehicles 2016> +12V ignition current Connection 15 Fuse box fused if necessary

DIP switch settings for the manufacturer of the aftermarket unit (see user manual)

Suitable for the following vehicles:

Hyundai
Hyundai Azera 2011 - 2017
Hyundai Elantra 2011 - 2015
Hyundai H1 (TQ) 03/2011 - 08/2018*
Hyundai H1 (TQ) 08/2018 - 07/2020*
Hyundai H350 06/2015 -12/2019*
Hyundai i10 (IA) 11/2013 - 12/2016
Hyundai i10 (IA) 01/2017 - 12/2019*
Hyundai i20 (GB) 12/2014 - 06/2018*
Hyundai i20 (GB) 07/2018 -09/2020*
Hyundai i30 (GD/GDH) 03/2012 - 05/2015
Hyundai i30 (GD/GDH) 05/2015 - 05/2017
Hyundai i40 (VF) 09/2011 - 05/2015**
Hyundai i40 (VF) 05/2015 - 08/2018**
Hyundai i40 (VF) 08/2018 - 07/2019**
Hyundai i45 2009 - 2014
Hyundai i800 2007 - 2021*
Hyundai ix35 (EL) 03/2010 - 09/2013
Hyundai ix35 (EL) 09/2013 - 07/2015
Hyundai ix45 2013 - 2018*
Hyundai Santa Fe (DM) 10/2012 - 11/2015
Hyundai Santa-Fe (DM) 12/2015 - 08/2018*
Hyundai Sonata (YF) 2009 - 2014
Hyundai Tucson (TL) 04/2010 - 06/2015
Hyundai Tucson (TL) 07/2015 - 07/2018**
Hyundai Tucson (TL) 07/2018 - 12/2020**

Kia
Cee'd (JD) 06/2012 - 09/2015
Kia Optima (TF) 10/2013 - 10/2015
Kia ProCee'd (JD) 07/2013 - 09/2015
Kia Sorento (XM) 10/2012 - 03/2015

The following warnings are issued:

Imported vehicles or vehicles with other software may be incompatible in terms of functions.

Remote control on the steering wheel

Vehicles from 2016 without OEM navigation
Vehicles with Continental OEM navigation

Suitable for:
Hyundai I10 2013-2019
Hyundai I20 2014-2020
Hyundai I30 2012-2017
Hyundai I40 2011-2019
Hyundai IX35 2010-2015
Hyundai IX45 2009-2021
Hyundai Santa Fe 2012-2018
Hyundai Tucson 2010-2020
Kia Cee'd 2012-2015
Kia Proceed 2013-2015
Kia Sorento 2012-2015
Kia Optima 2013-2015

---

Warranty	2 years
for brand	CAN-bus
