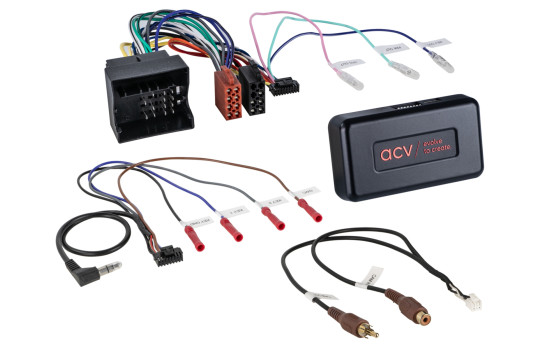

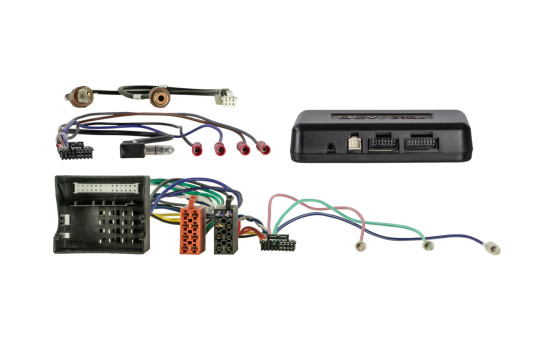

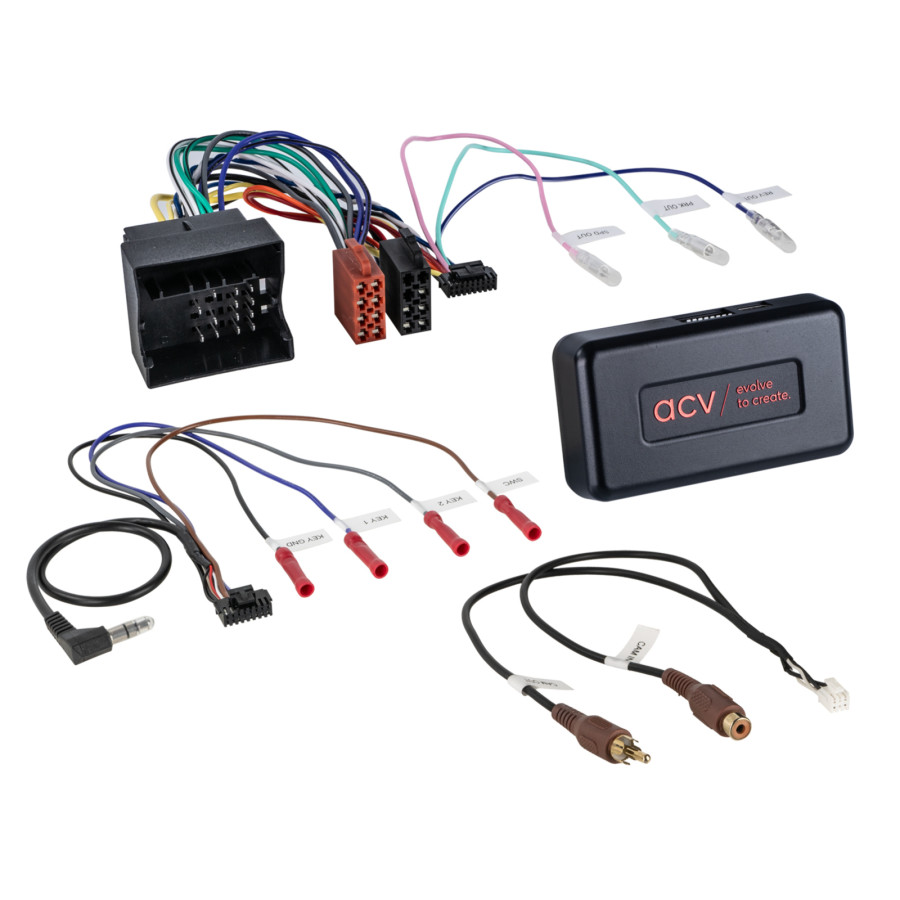

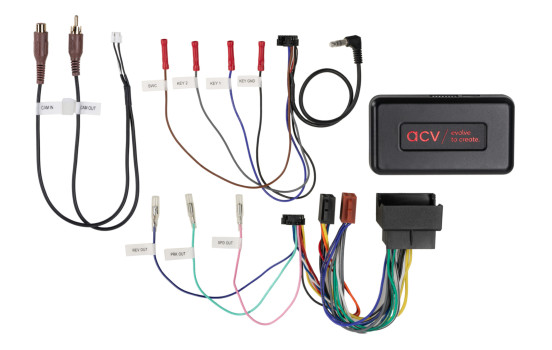

SWI + Info adapter Skoda/Volkswagen Vehicles 40Pin Quadlock Multilead (43uvw01)

i-adapter Skoda / VW

With the Infodapter, the visual display of vehicle functions such as parking sensors, climate control and seat heating is retained when replacing the original radio unit.

Vehicle-specific settings are supported and displayed on the post-installation device.

The vehicle's steering wheel controls function is also supported and is mandatory for the adapter configuration.

Depending on the vehicle equipment, functionality and software of the retrofit device, some controls may be omitted or replaced by other functions.

Please check whether the original factory radios and adapter plugs shown match the vehicle's equipment.

Please note that in some cases, not all features are supported. For example, Trailer Assist, E Call, or other driver assistance and comfort systems.

Before installation, check the vehicle menu for various settings.

Check the operation of the settings and the vehicle system before final installation.

Remark:

CAN bus

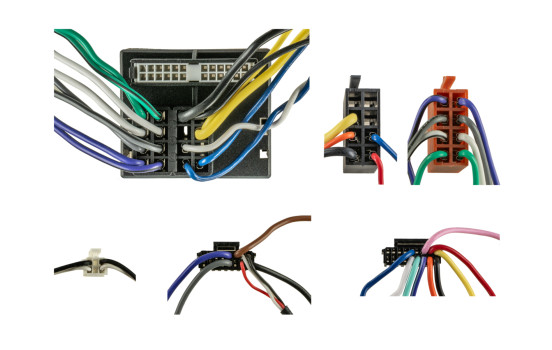

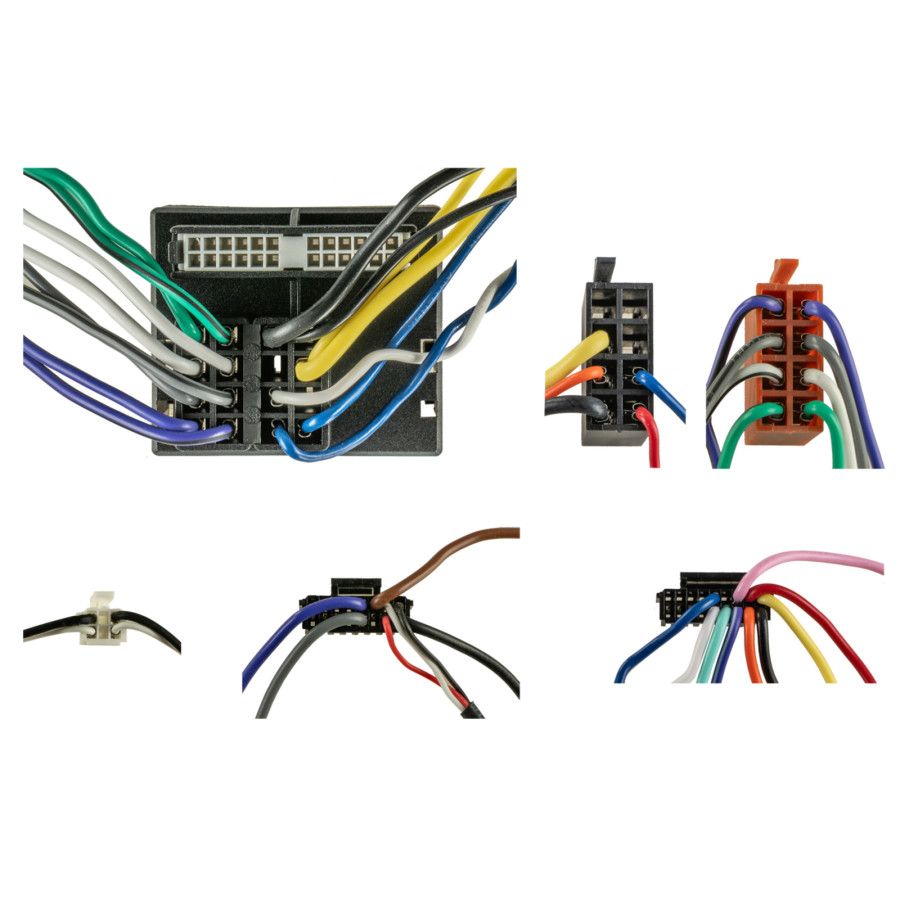

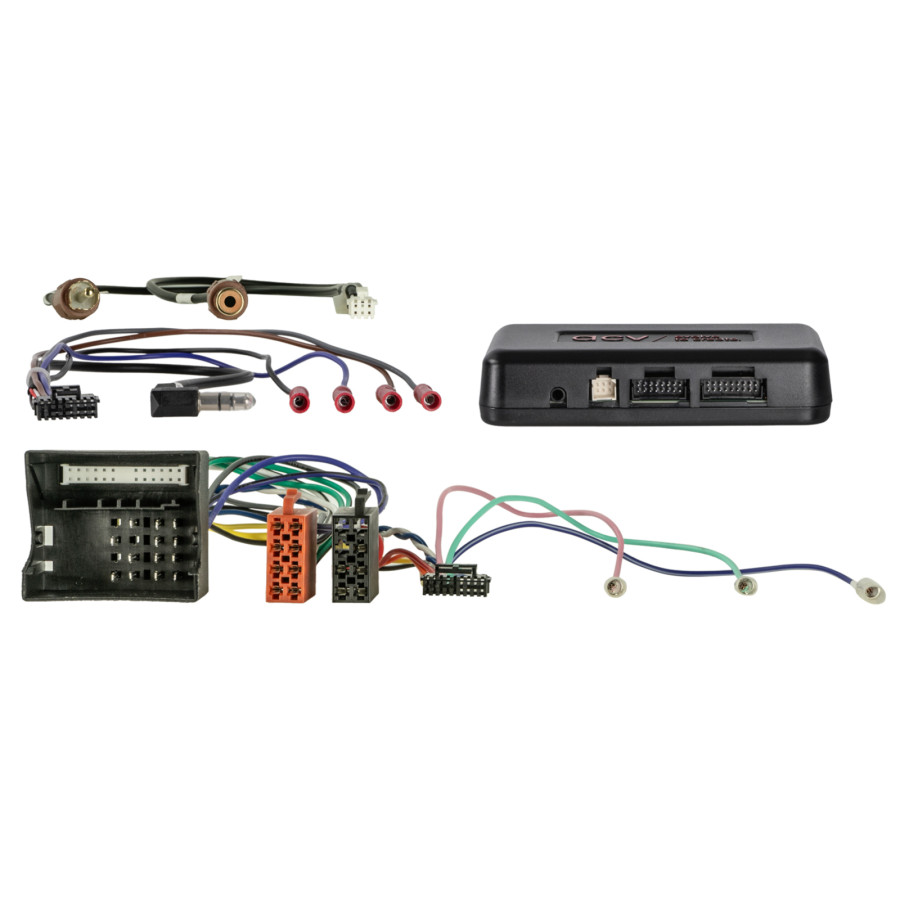

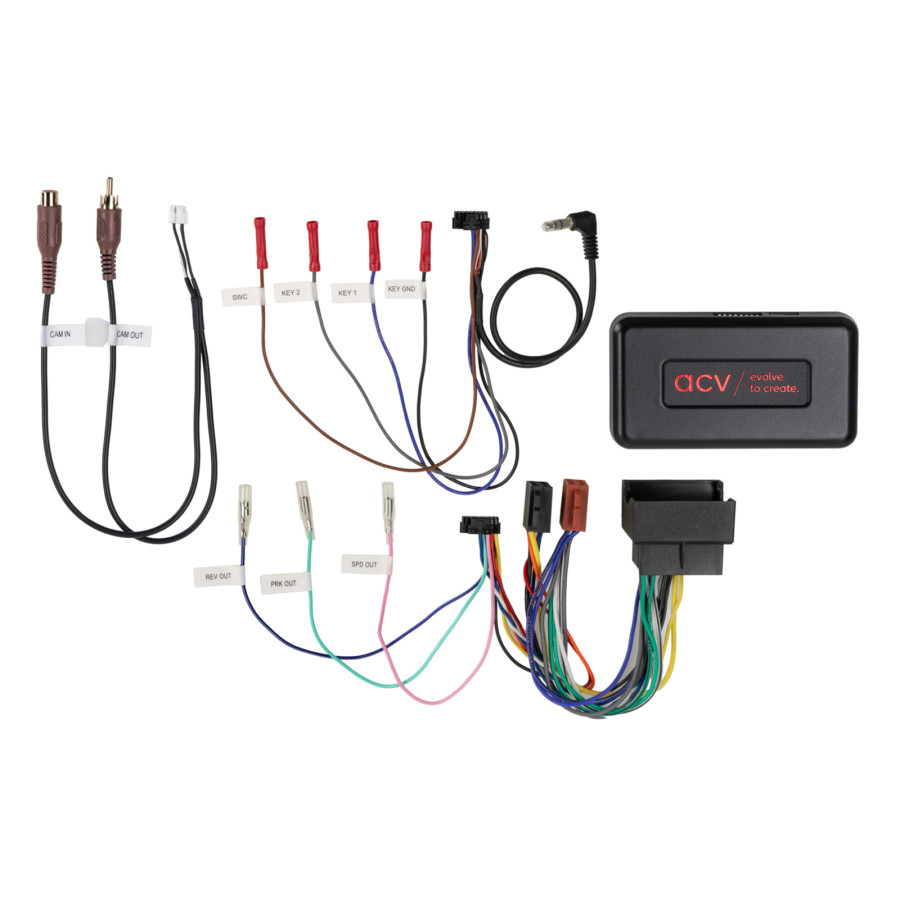

Connection: 40-pin Quadlock VW plug
Connection: OEM steering wheel controls > 3.5 mm jack / loose cable

Activate and configure the reversing camera input in the menu of the retrofit device.

i-adapter connection:

purple/white: +12V reversing signal

Cinch (m) ochre: rear view camera input retrofit device

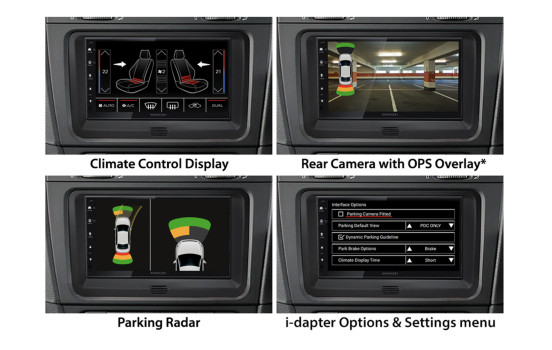

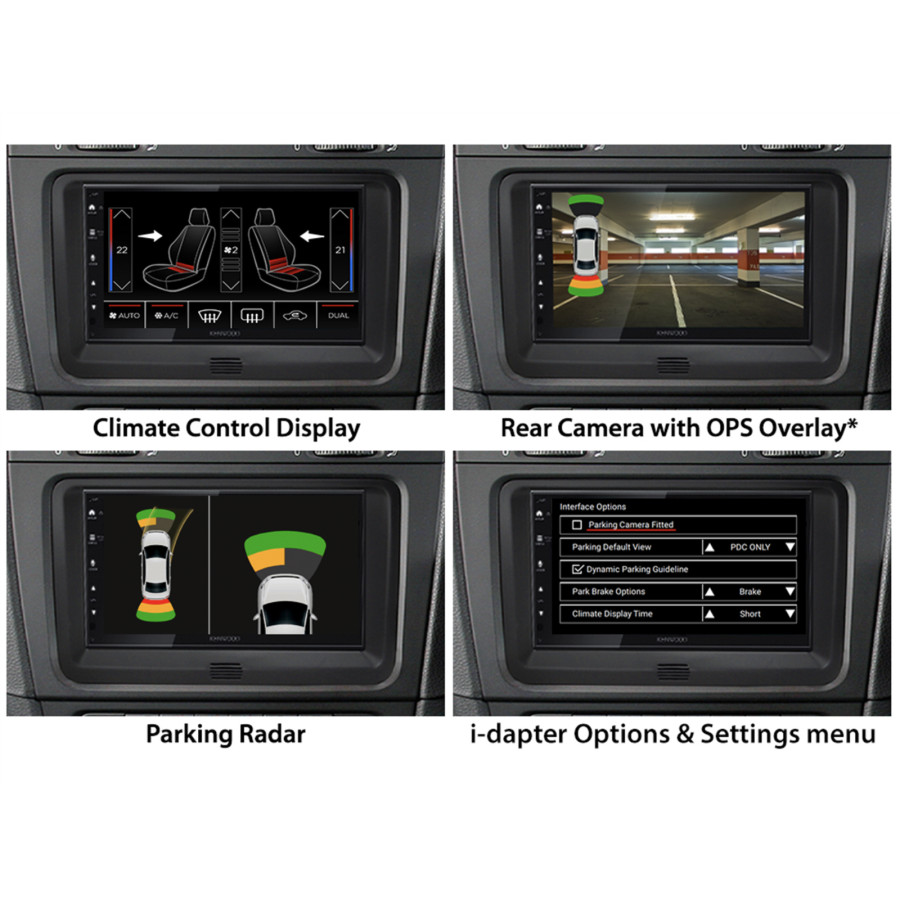

Visualization i-adapter settings > Rear view camera input post-installation device
Visualization OPS > Rear-view camera input installation device
Visualization Klimatronik > Reversing camera input retrofit device

Vehicles with steering wheel controls – i-dapter settings:
Steering wheel controls: Press and hold Track forward
Alternative with article: 43x-remote

Vehicles without steering wheel controls – i-adapter settings, required accessory:
i-dapter accessory remote control > Interface setting > Item: 43x-remote

Vehicles with white OEM FIS menu display on the instrument panel
Vehicles with/without OEM sound system

Vehicles with OEM rear view camera:

Rear View Camera Interface Seat/Skoda/VW OEM HIGH: 771324-1032

Rear View Camera Interface Seat/Skoda/VW OEM LOW: 771324-1036

Vehicles with parking assistance and front PDC > after starting the vehicle, the front PDC is displayed
Exiting the display > via the vehicle PDC button

+12V reverse signal is switched off from 3 km/h

Camera image or i-dapter settings and visualization not available:
Connect an additional ground cable (Cinch external conductor) to the camera connection and the device.

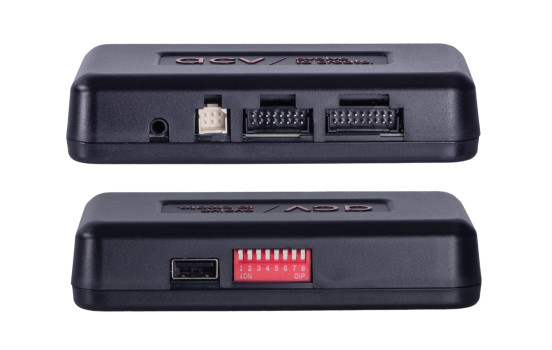

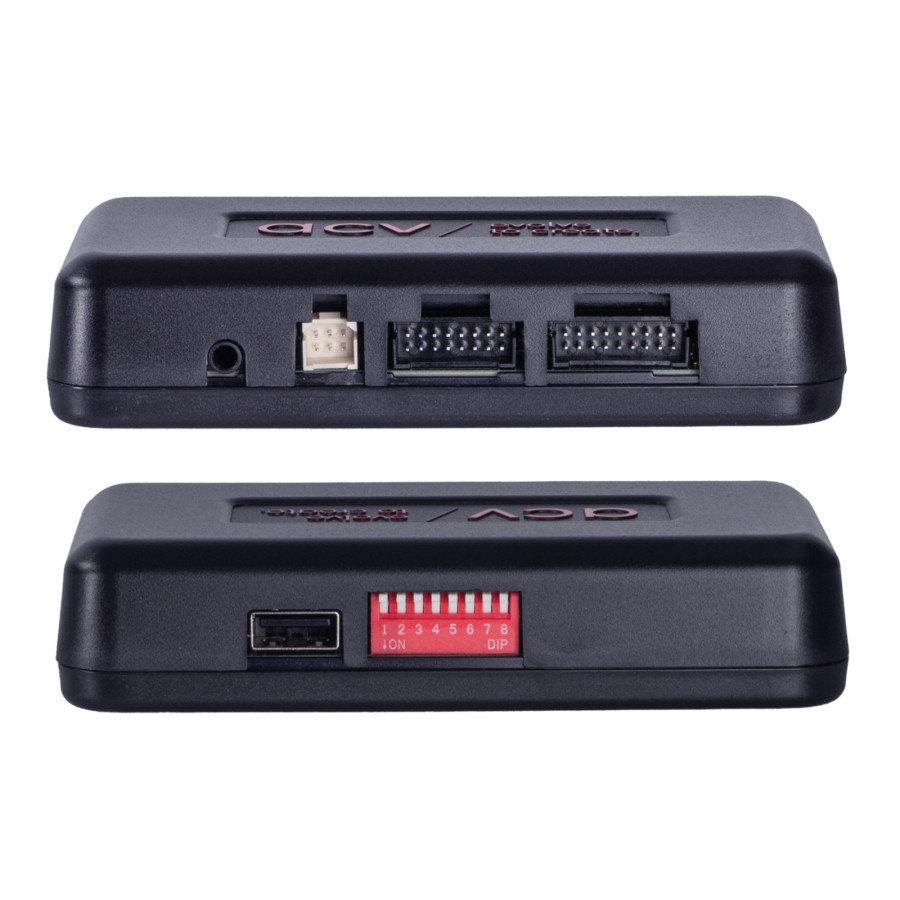

Dip switch settings for the manufacturer of the post-installation device (see manual).

Suitable for the following vehicles:

Skoda

Octavia (1Z) 01/2009 - 03/2013*
Rapid (NH) 10/2012 - 04/2015
Roomster (5Y) 06/2010 - 02/2015
Superb (3T) 07/2008 - 05/2013
Yeti (5L) 08/2009 - 10/2013
VW
Caravelle (7H) 09/2009 - 05/2015**
CC (3C/35) 02/2012 - 08/2016
Eos (1F) 10/2010 - 04/2015
Golf VI (1K) 11/2008 - 12/2012
Golf VI (1KM) 11/2009 - 04/2013
Golf VI (1K) 06/2011 - 07/2016
Golf VI Plus (1KP) 03/2009 - 01/2014
Multivan (7H) 09/2009 - 05/2015**
Passat B7 (3C/362) 11/2010 - 10/2014
Polo V (6R) 06/2009 - 01/2014***
Scirocco III (13) 08/2008 - 04/2014
Sharan II (7N) 08/2010 - 04/2015
T5 Transporter (7H) 09/2009 - 05/2015**
Tiguan I (5N) 06/2011 - 04/2016
Touran (1T) 08/2010 - 04/2015
The following signals are provided:

Re-imported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition switch terminal 15
orange: +12V lighting Terminal 58
purple/white: +12V reversing signal
pink: speed signal
green: ground GND handbrake signal

Output load capacity: max. 250 mA

Current consumption > 250 mA:
1 Relay coil resistance min. 75 Ohm
2 Relay coil resistance min. 150 Ohm

Steering wheel controls
Visualization Klimatronik
Visualization of optical PDC
OEM sound system settings

*Vehicles with Audience/Stream OEM device
**Vehicles with OEM sound system > Article active system adapter VW T5/Touareg Quadlock MQS: 13-1424-26
***Vehicles with Fender OEM sound system

Optional:

Rear View Camera Interface Seat/Skoda/VW OEM HIGH: 771324-1032

Rear View Camera Interface Seat/Skoda/VW OEM LOW: 771324-1036


Suitable for:
Volkswagen Caravelle 2009-2015
Volkswagen CC 2012-2016
Volkswagen Eos 2010-2015
Volkswagen Golf 6 2008-2016
Volkswagen T5 Multivan 2009-2015
Volkswagen Passat 2010-2014
Volkswagen Polo 2009-2014
Volkswagen Scirocco 2008-2014
Volkswagen Sharan 2010-2015
Volkswagen T5 Transporter 2009-2015
Volkswagen Tiguan 2011-2016
Volkswagen Touran 2010-2015
Skoda Octavia 2009-2013
Skoda Rapid 2012-2015
Skoda Roomster 2010-2015
Skoda Superb 2008-2013
Skoda Yeti 2009-2013

---

Warranty

2 years
