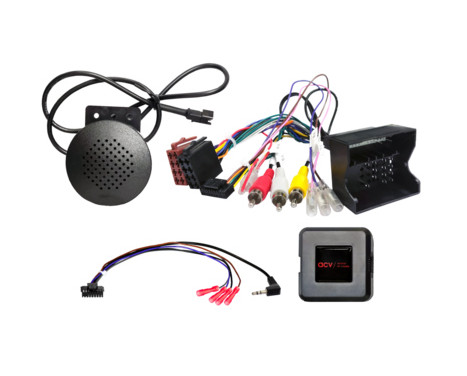

SWI LFB Toyota Proace 2016-2021 with parking sensors

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the illustrated connector of the adapter with
which in your car to ensure that you have the right one.

Also check if one of the
The specified original factory radio is installed in your vehicle!

Remark:

CAN bus

Connection: 40-pin Quadlock plug (Citroën / Peugeot)
Connection: steering wheel control > 3.5 mm jack / separate cable
Connection: OEM AUX > RCA (male) red / white
Connection: Cinch (m) yellow unused

Vehicles with Blaupunkt / Continental / Siemens VDO RD4 OEM device with volume knob
Vehicles with Clarion MQ-RD6 OEM unit with monochrome display and central rotary knob
Vehicles with rear PDC

Vehicles without Bosch OEM device
Vehicles without Continental RD45 OEM unit with volume knob
Vehicles without Magneti Marelli RT3 / RT6 / Harman Becker NG4 OEM navigation Vehicles without JBL OEM sound system

Vehicles without OEM rear speakers:
PDC display via rear speaker output
Swap front and rear speaker cables in the ISO connectors

Peugeot CC vehicles:
LFB Citroën/Fiat/Peugeot/Toyota vehicles Quadlock PDC > Article: 42a-1041-008

Vehicles with Continental RD45 OEM unit with volume control:
LFB Citroën/Fiat/Peugeot/Toyota vehicles Quadlock PDC > Article: 42a-1041-008

Vehicles with PDC switch:
PDC display must be activated

Vehicles with ECO mode:
+12V continuous current terminal 30 battery protected

Supported vehicle settings (see BDA)

DIP switch settings for the manufacturer of the retrofit equipment (see BDA)
