Steering wheel control interface
Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the adapter's illustrated connector with
the one in your car to make sure you have the right one.
Also check if any of the
specified original factory radio is installed in your vehicle!
Remark:
CAN bus steering wheel remote control

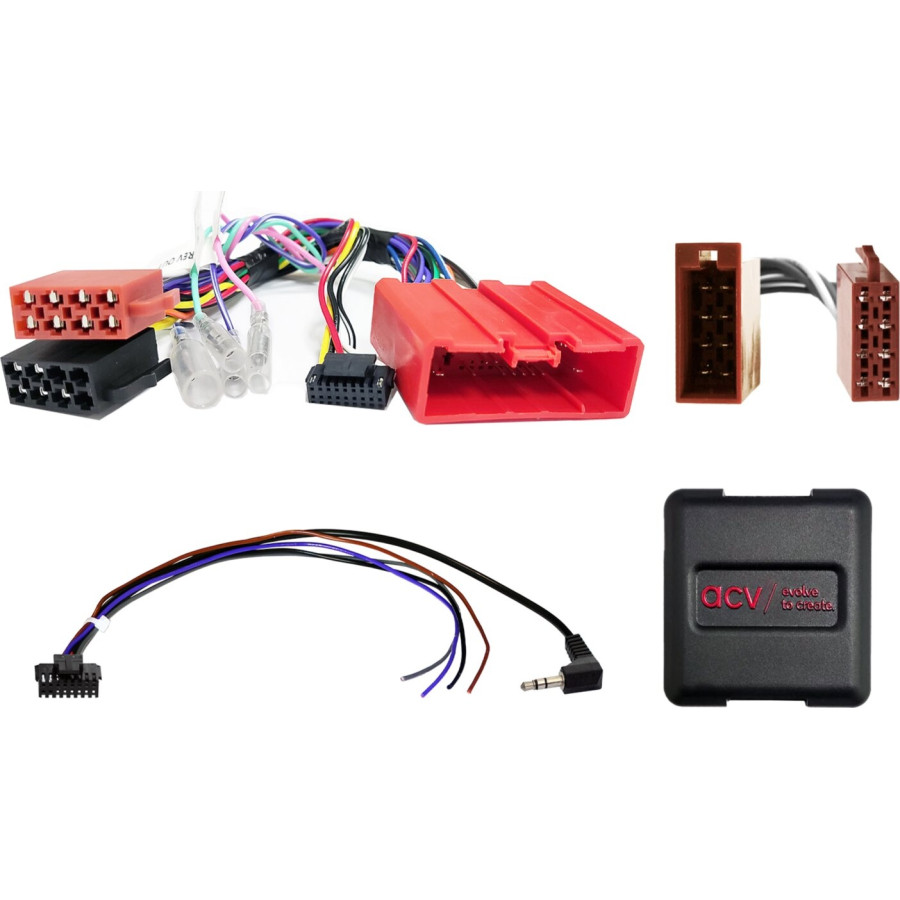

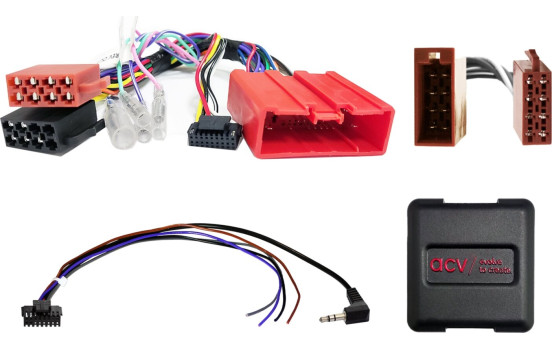

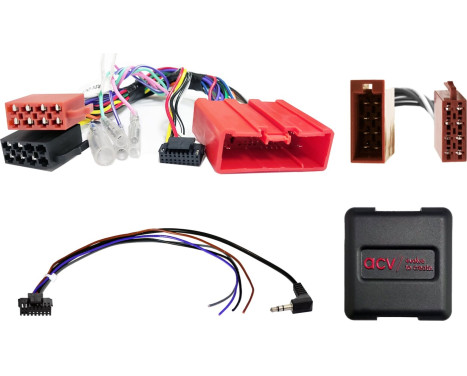

Connection: 24-pin Mazda connector
Connection: OEM steering wheel remote control > 3.5mm jack / loose cable
Connection: OEM sound system ISO(m) > ISO(f)
Vehicles with Panasonic OEM device
Vehicles with BOSE OEM sound system
Mazda 3 / Mazda 6 vehicles with Sanyo Tom Tom OEM navigation:
Adjustment > Sanyo in the axis in the outer housing
Mazda 5 vehicles with Sanyo Tom Tom OEM navigation:
Adjustment Mazda > Sanyo behind glove compartment
Vehicles without BOSE OEM sound system:
Installation without OEM sound system ISO(m) > ISO(f) connection
blue/white: +12V Amplifier Remote Control
DIP switch settings for the aftermarket device manufacturer (see BDA)
Suitable for the following vehicles:
Mazda 3 (BL) 05/2009 - 09/2011
Mazda 3 (BL) 09/2011 - 09/2013
Mazda 5 (CW) 10/2010 - 02/2013
Mazda 5 (CW) 02/2013 - 08/2015
Mazda 6 (GH) 05/2010 - 02/2013
The following signals are given:
Vehicles that are re-imported or vehicles with different software may be incompatible in terms of features.
Steering wheel remote control
Suitable for: Mazda 3 2009-2013
Mazda 5 2010-2015
Mazda 6 2010-2013
