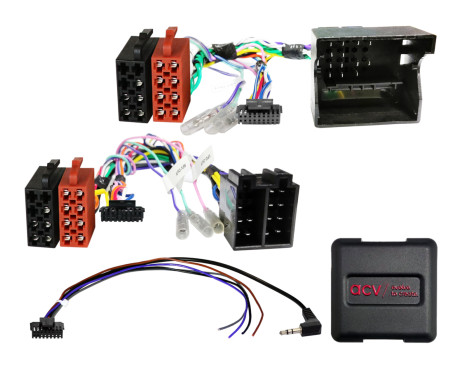

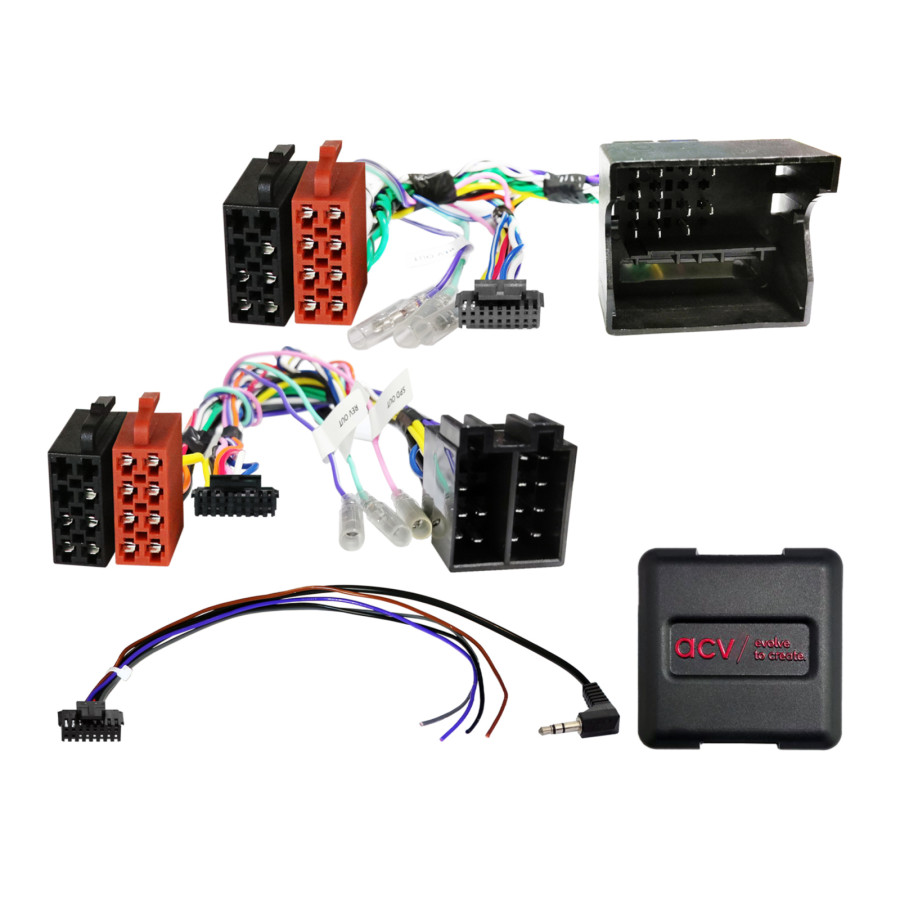

SWI Mercedes/Smart/VW ISO 40Pin Quadlock Multilead (42smc00c)

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the adapter's illustrated connector with
the one in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Remark:

CAN bus

Connection: 40-pin Quadlock Mercedes plug
Connection: ISO

Connection: OEM steering wheel remote control > 3.5 mm connection / loose cable

Mercedes vehicles with 1-DIN Audio 5 OEM device
Mercedes vehicles with 2-DIN Audio 20 OEM device
Mercedes vehicles with 2-DIN Audio 50 APS Comand NTG2 / NTG2.5 OEM Navigation

Mercedes vehicles with Audio 50 APS Comand NTG2/ NTG2.5 OEM navigation:
Time setting not supported > Code vehicles to OEM device if possible Audio 20

Smart vehicles with 2-DIN OEM CD device
Smart vehicles with Comand OEM navigation 40 pin Quadlock

Vehicles VW Crafter with RCD 2001 1-DIN OEM device
VW Crafter vehicles with RCD 3002 2-DIN OEM device
Vehicles VW Crafter with RNS 4001 / RNS 5001 OEM Navigation

Vehicles with radio preparation Before installation, check the CAN bus connection and the ISO connector assignment by measuring with the OEM device:
Incorrect connection will damage the interface

Vehicles without ISO connector assignment:
Pin 7: +12V ignition current Terminal 15
Pin 6: +12V lighting Terminal 58

CAN bus connection:
Interior CAN bus distributor in the footwell of the vehicle
CAN bus blue/CAN high <> white/CAN low alternative > air conditioning turned red/brown CAN high <> brown CAN low

Reversing signal is not always supported:
Driver's side reversing signal +12V white/blue alternative

Vehicles with radio preparation without OEM HU:
LFB Mercedes/VW Crafter ISO radio preparation loose > Article 42smc017-0

DIP switch settings for the retrofit device manufacturer (see BDA)

Compatible with all vehicles from LFB interface:

LFB Mercedes various Fahrzeuge/Smart 40Pin Quadlock loose> Item: 42xmc001-0
LFB Mercedes various Fahrzeuge/Smart(W454)/VW ISO lose > Item: 42xmc002-0

For next vehicle please:

Mercedes
Mercedes A-Class (C169/W169) 10/2004 - 04/2008
Mercedes A-Class (C169/W169) 06/2008 - 06/2012
Mercedes B-Class (T245) 07/2005 - 04/2008
Mercedes B-Class (T245) 04/2008 - 09/2011
Mercedes C-Class (CL203/S203/W203) 02/2004 - 09/2007
Mercedes CLC-Class (CL203) 06/2008 - 02/2011*
Mercedes CLK-Class (W209) 04/2005 - 01/2010
Mercedes CLS-Class (C219) 04/2008 - 09//2010
Mercedes E-Class (S211/W211) 03/2008 - 01/2009
Mercedes G-Class (W463) 04/2007 - 06/2008
Mercedes G-Class (W164) 09/2008 - 06/2012
Mercedes GL-Class (X164) 09/2006 - 05/2009
Mercedes GL-Class (X164) 05/2009 - 07/2012
Mercedes M-Class (W164) 07/2005 - 04/2008**
Mercedes M-Class (W164) 10/2008 - 07/2011**
Mercedes ML (W164) 07/2005 - 04/2008
Mercedes ML (W164) 10/2008 - 07/2011
Mercedes R-Class (W251) 09/2005 - 05/2007
Mercedes R-Class (W251) 05/2007 - 05/2010
Mercedes SLK-Class (R171) 04/2008 -03/2011
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018
Mercedes Vito/Viano (W639) 04/2006 - 08/2010
Mercedes Vito/Viano (W639) 09/2010 - 03/2014

Smart
Smart For four (W454) 01/2004 - 04/2007

VW CRAFTER
VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016

The following signals are provided:
Vehicles that are re-imported or vehicles with different software may be incompatible in terms of features.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reversing signal
green: ground GND handbrake signal

Total output current: 100 mA max.

Current requirement greater than 100 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel remote control

*Vehicles with Harman Kardon OEM sound system > Item: 13-1190-53
**Vehicles with Harman Kardon OEM sound system > Item: 13-1190-52

Compatibility

Suitable for:
Mercedes Benz A-Class 2004-2012 (169)
Mercedes Benz B-Class 2005-2011 (245)
Mercedes Benz C-Class 2000-2007 (203)
Mercedes Benz CLK-Class 2002-2010 (209)
Mercedes Benz M-Class 2005-2011 (164)
Mercedes Benz R-Class 2006-2020 (251)
Mercedes Benz SLK-Class 2008-2011 (171)
Mercedes Benz Sprinter 2006-2018 (906)
Mercedes Benz Viano 2003-2014 (639)
Mercedes Benz Vito 2003-2014 (639)
Volkswagen Crafter 2012-2014

---

Warranty

2 years
