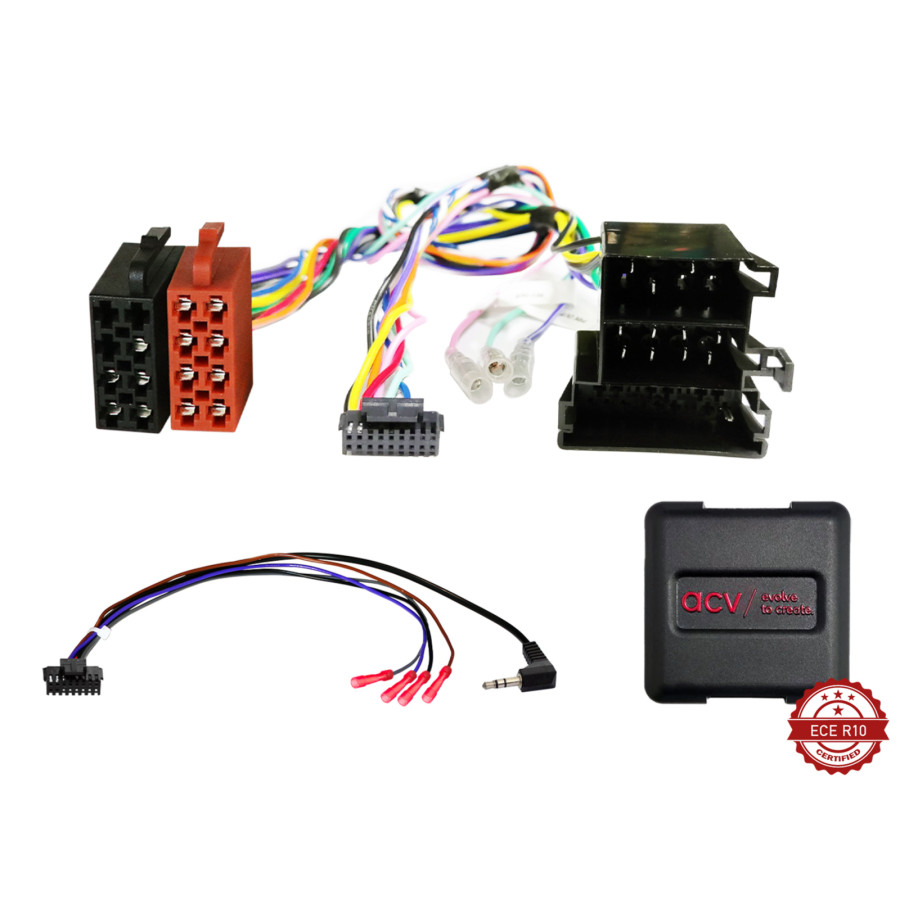

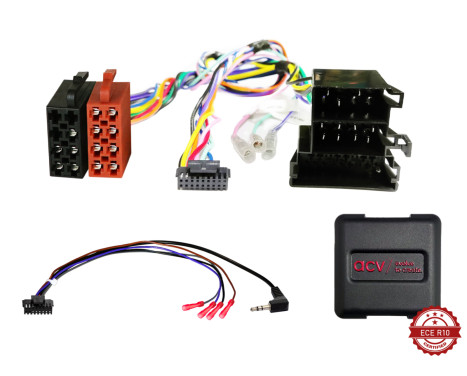

SWI Mercedes vehicles/VW ISO/Mini-ISO Multilead

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the illustrated connector of the adapter with
which in your car to ensure that you have the right one.

Also check if one of the
The specified original factory radio is installed in your vehicle!

Remark:

CAN bus connection

: ISO / Mini-ISO-
connection: OEM steering wheel remote control > 3.5 mm jack / separate cable

Vehicles with CAN bus in Mini-ISO Mini connector

Mercedes vehicles with 1-DIN Audio 5 OEM unit
VW vehicles with 1-DIN RCD 2001 OEM unit

Vehicles with radio preparation: Check the CAN bus connection and the pin assignment of the ISO connector by measuring before installation:
Incorrect connection damages the interface

Vehicles without pin assignment ISO connector:
Pin 7: +12V Ignition current Connection 15
Pin 6: +12V Lighting Connection 58

Vehicles with a different comfort interior CAN bus connection:
Brown-red rotated > Blue rotated: CAN High
Brown dialed > White dialed: CAN Low
CAN-bus to CAN-bus sill trim
CAN bus to Climatronic

Reverse signal +12V Not always supported:
Driver's side reversing signal > White/Blue Alternatively,

DIP switch settings for the manufacturer of the retrofit device (see (BDA)

Suitable for the following vehicles:

Mercedes
A-Class (C169/W169) 10/2004 - 04/2008
Mercedes A-Class (C169/W169) 06/2008 - 06/2012
Mercedes B-Class (T245) 07/2005 - 04/2008
Mercedes B-Class (T245) 04/2008 - 09/2011
Mercedes C-Class (CL203/S203/W203) 02/2004 - 09/2007
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018
Mercedes Vito/Viano (W639) 04/2006 - 08/2010
Mercedes Vito/Viano (W639) 09/2010 - 03/2014

VW
Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016

The following signals are displayed:

Imported vehicles or vehicles with other software may be functionally incompatible.

Red: +12V Ignition terminal 15
Orange: +12V lighting connection 58;
Purple/White: +12V reverse signal;
Pink: speed signal;
Green: mass (GND); Handbrake signal;

Output load capacity: max. 250 mA.

Current requirement higher than 250 mA:
1 relay coil resistance minimum 75 ohms;
2 relay coil resistance minimum 150 ohms;

Suitable for:
Mercedes Benz A-Class 2004-2012 (169)
Mercedes Benz B-Class 2005-2011 (245)
Mercedes Benz C-Class 2004-2007 (203)
Mercedes Benz Sprinter 2006-2018 (906)
Volkswagen Crafter 2006-2018
Mercedes Benz Vito 2006-2014 (639)
Mercedes Benz Viano 2006-2014 (639)

---

Warranty

2 years
