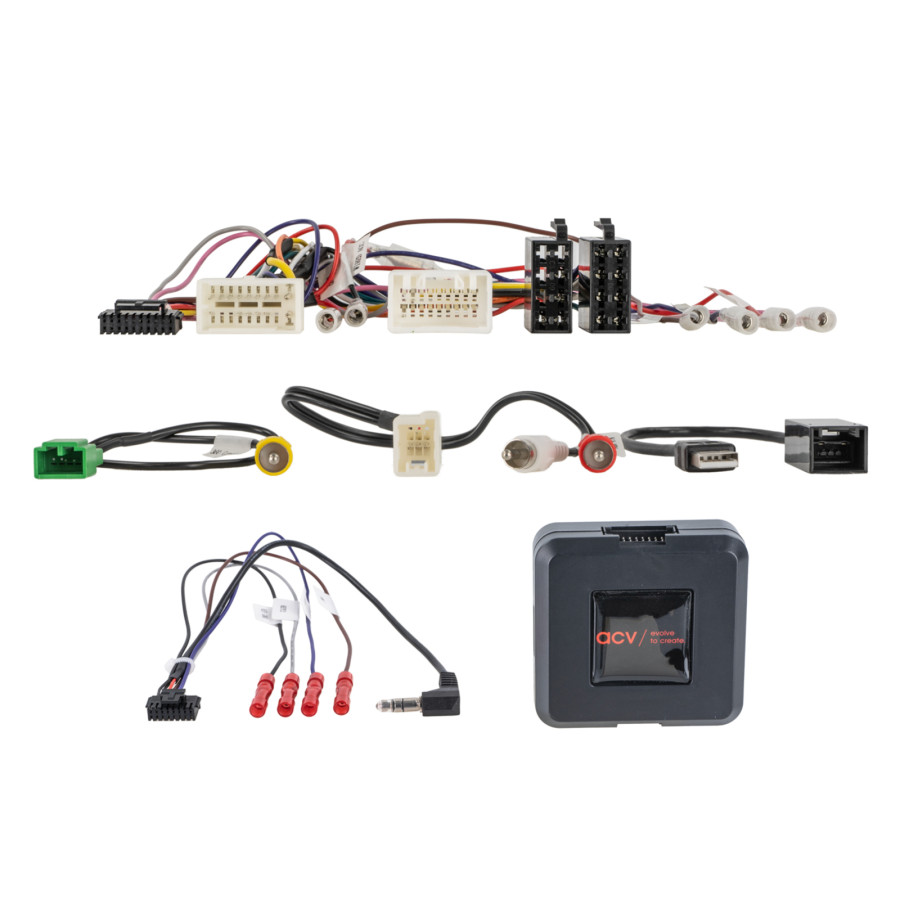

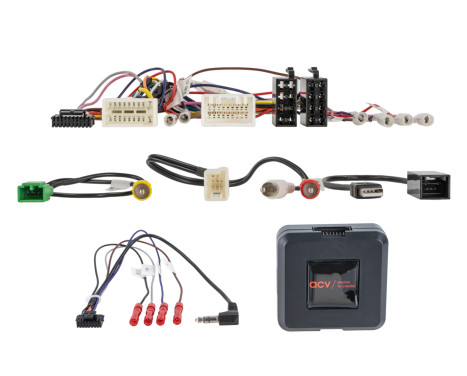

SWI Mitsubishi Pajero Sport (QE) Multilead Camera/Amp (42xmt010)

Name: SWI Mitsubishi Pajero Sport (QE) Multilead Camera/Amp (42xmt010) | Winparts.co.uk - Steering wheel control
Brand: ACV
SKU: 2106468
Price: 281.71 GBP
Availability: InStock

Product number: 2106468

Manufacturer number: 42xmt010

EAN: 4026724675849

£ 281.⁷¹

Incl. VAT

View product specifications

Not available

Free Shipping

Free 30 days exchanges
Any part, any car
Shipment within 9 days
Expert support

UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Enter your number plate or select your vehicle.

Specifications

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the adapter's illustrated connector with
the one in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Remark:

CAN bus

connector: 18 pin / 20 pin / 8 pin Mitsubishi
Connector: OEM SWC > 3.5mm Jack / Loose Wire
connector: OEM AUX > RCA(m) red/white
connector: OEM USB > USB-A Note:

CAN bus

connector: 18-pin / 20-pin
connector: OEM 360° camera system > RCA(m) yellow

vehicles with OEM reinforced system

fader not supported

dip switch settings for the retrofit device manufacturer (see manual)

Vehicle application:

Mitsubishi Montero Sport (QE) 2016 - 06/2019
Mitsubishi Pajero Sport IV (QE) 07/2015 - 06/2019
Mitsubishi Shogun Sport (QE) 2016 - 06/2019

The following signals are provided:

Re-imported vehicles or vehicles with different software may not be compatible in terms of features.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reversing signal
pink: speed pulse signal
green: GND parking brake signal

Output capacity: max. 250 mA

current requirement more than 250 mA:
1 relay coil resistance min. 75 Ohm
2 relay coil resistance min. 150 Ohm

SWC

OEM reinforced system supported
360° OEM camera system supported

Suitable for:
Mitsubishi Montero Sport 2016-2019
Mitsubishi Pajero 2015-2019
Mitsubishi Shogun Sport 2016-2019

Warranty	2 years

Applicability

MITSUBISHI

	CHALLENGER /
	CHALLENGER / SHOGUN SPORT I (K7_, K9_) \| 09.1996-06.2008 2.5 TD (K94W) - 2477ccm, 115pk, 85kw - 4D56-T/C (SOHC 8V)
	CHALLENGER / SHOGUN SPORT I (K7_, K9_) \| 09.1996-06.2008 2.5 TD (K94W) - 2477ccm, 133pk, 98kw - 4D56-T/C (SOHC 8V)
	CHALLENGER / SHOGUN SPORT I (K7_, K9_) \| 09.1996-06.2008 2.5 TD 4WD (K94W) - 2477ccm, 112pk, 83kw - 4D56-T
	CHALLENGER / SHOGUN SPORT I (K7_, K9_) \| 09.1996-06.2008 2.5 TDiC (K94W) - 2477ccm, 99pk, 73kw - 4D56-T/C (SOHC 8V)
	CHALLENGER / SHOGUN SPORT I (K7_, K9_) \| 09.1996-06.2008 2.8 TDi (K77T) - 2835ccm, 125pk, 92kw - 4M40-T
	CHALLENGER / SHOGUN SPORT I (K7_, K9_) \| 09.1996-06.2008 3.0 4WD - 2972ccm, 175pk, 129kw - 6G72 (SOHC 24V)
	CHALLENGER / SHOGUN SPORT I (K7_, K9_) \| 09.1996-06.2008 3.0 V6 (K96W) - 2972ccm, 170pk, 125kw - 6G72 (SOHC 24V)
	CHALLENGER / SHOGUN SPORT I (K7_, K9_) \| 09.1996-06.2008 3.0 V6 (K96W) - 2972ccm, 177pk, 130kw - 6G72 (SOHC 24V)
	CHALLENGER / SHOGUN SPORT I (K7_, K9_) \| 09.1996-06.2008 3.0 V6 4WD (K96W) - 2972ccm, 167pk, 123kw - 6G72 (SOHC 24V)
	CHALLENGER / SHOGUN SPORT I (K7_, K9_) \| 09.1996-06.2008 3.5 4WD (K99W) - 3497ccm, 203pk, 149kw - 6G74 (DOHC 24V)
	PAJERO SPORT
	PAJERO SPORT II (KH_, KG_) \| 07.2008-??? 2.5 DI-D 4WD (KH4W) - 2477ccm, 178pk, 131kw - 4D56 (16V)
	PAJERO SPORT II (KH_, KG_) \| 07.2008-??? 3.2 DI-D 4WD - 3200ccm, 165pk, 121kw - 4M41
	PAJERO SPORT II (KH_, KG_) \| 07.2008-??? 3.5 V6 24V - 3497ccm, 208pk, 153kw - 6G74 (SOHC 24V)
	PAJERO/SHOGUN CLASSIC
	PAJERO/SHOGUN CLASSIC (V2_W, V6_W, V7_W) \| 07.2001-??? 2.5 TD (V24W) - 2477ccm, 115pk, 85kw - 4D56-T/C (SOHC 8V)
	PAJERO/SHOGUN CLASSIC (V2_W, V6_W, V7_W) \| 07.2001-??? 3.2 DI-D (V68W, V78W) - 3200ccm, 170pk, 125kw - 4M41
	PAJERO/SHOGUN CLASSIC (V2_W, V6_W, V7_W) \| 07.2001-??? 3.8 All-wheel Drive (V67W) - 3828ccm, 250pk, 184kw - 6G75
	PAJERO/SHOGUN IV
	PAJERO/SHOGUN IV (V8_W, V9_W) \| 10.2006-??? 3.0 4WD - 2972ccm, 174pk, 128kw - 6G72 (SOHC 24V)
	PAJERO/SHOGUN IV (V8_W, V9_W) \| 10.2006-??? 3.0 4WD (V83W, V93W) - 2972ccm, 178pk, 131kw - 6G72 (SOHC 24V)
	PAJERO/SHOGUN IV (V8_W, V9_W) \| 10.2006-??? 3.2 4WD (V98W) - 3200ccm, 192pk, 141kw - 4M41
	PAJERO/SHOGUN IV (V8_W, V9_W) \| 10.2006-??? 3.2 DI-D - 3200ccm, 167pk, 123kw - 4M41
	PAJERO/SHOGUN IV (V8_W, V9_W) \| 10.2006-??? 3.2 DI-D (V88W, V98W) - 3200ccm, 160pk, 118kw - 4M41
	PAJERO/SHOGUN IV (V8_W, V9_W) \| 10.2006-??? 3.2 DI-D (V88W, V98W) - 3200ccm, 170pk, 125kw - 4M41
	PAJERO/SHOGUN IV (V8_W, V9_W) \| 10.2006-??? 3.2 DI-D 4WD (V98W, V88W) - 3200ccm, 190pk, 140kw - 4M41
	PAJERO/SHOGUN IV (V8_W, V9_W) \| 10.2006-??? 3.2 DI-D 4WD (V98W, V88W) - 3200ccm, 200pk, 147kw - 4M41
	PAJERO/SHOGUN IV (V8_W, V9_W) \| 10.2006-??? 3.5 V6 4WD - 3497ccm, 189pk, 139kw -
	PAJERO/SHOGUN IV (V8_W, V9_W) \| 10.2006-??? 3.8 V6 (V87W) - 3828ccm, 248pk, 182kw - 6G75 (SOHC 24V)
	PAJERO/SHOGUN IV (V8_W, V9_W) \| 10.2006-??? 3.8 V6 (V87W, V97W) - 3828ccm, 250pk, 184kw - 6G75 (SOHC 24V)
	PAJERO/SHOGUN IV Van (V9_, V8_, V8_V) \| 11.2006-??? 3.2 DI-D - 3200ccm, 160pk, 118kw - 4M41
	PAJERO/SHOGUN IV Van (V9_, V8_, V8_V) \| 11.2006-??? 3.2 DI-D 4WD (V88W, V98W) - 3200ccm, 190pk, 140kw - 4M41
	PAJERO/SHOGUN IV Van (V9_, V8_, V8_V) \| 11.2006-??? 3.2 TD 4WD (V88V, V98V) - 3200ccm, 200pk, 147kw - 4M41
	SHOGUN SPORT
	SHOGUN SPORT III (KS_) \| 08.2015-??? 2.4 DI-D 4x4 (KS1W) - 2442ccm, 181pk, 133kw - 4N15
