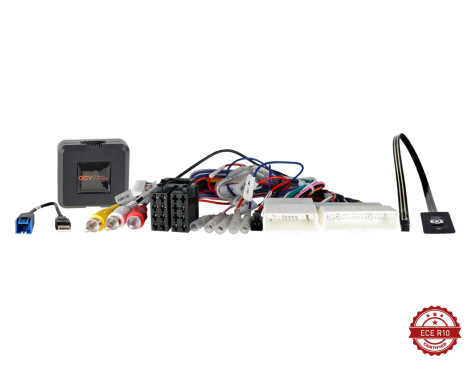

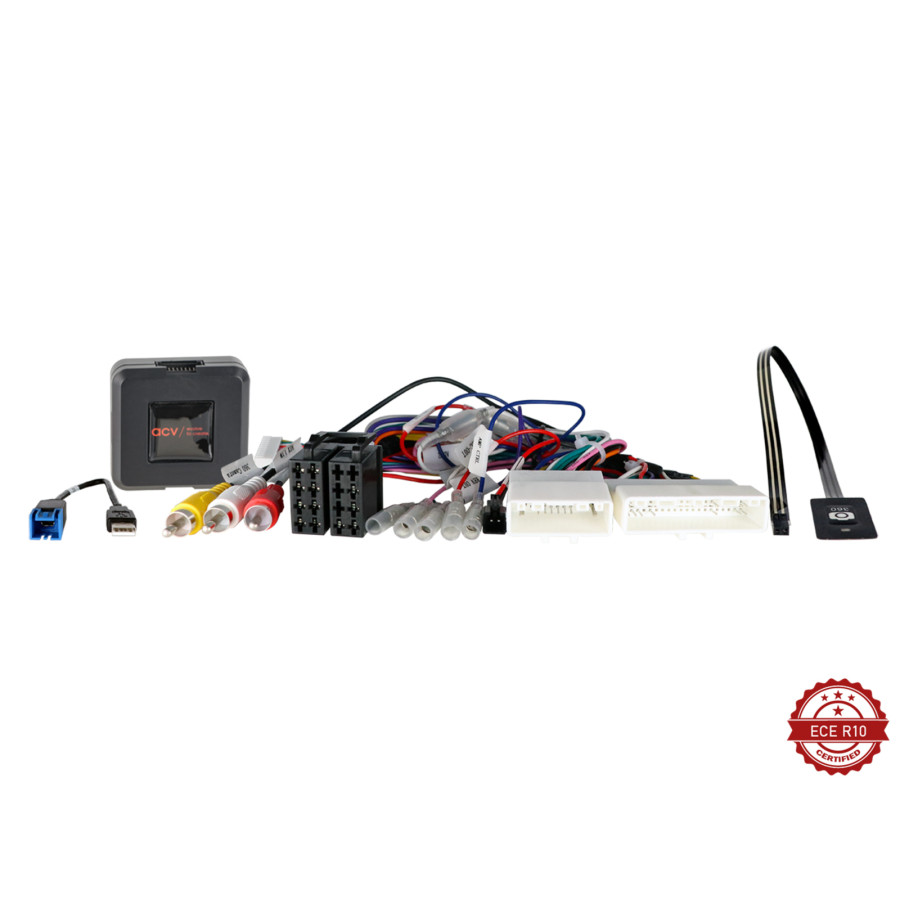

SWI Nissan Altima/Qashqai 20Pin/40Pin Multilead camera

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the illustrated connector of the adapter with
which in your car to ensure that you have the right one.

Also check if one of the
The specified original factory radio is installed in your vehicle!

Remark:

CAN bus connection

: 20 pin / 40 pin Nissan connector
Connection: OEM steering wheel remote control > 3.5 mm jack / separate cable
Connection: OEM antenna > DIN (male) / blue +12V antenna
-remote control Connection: OEM AUX > RCA (male) red/white
Connection: OEM USB > USB-A
Connection: OEM 360° camera system > RCA (male) yellow

Vehicles with/without 360° camera system
Vehicles with OEM navigation
Vehicles with Visia equipment
Vehicles with Acenta-
equipment Vehicles with N-Way equipment
Vehicles with N-Connecta equipment

Vehicles with N-Connecta / N-Tec / Tekna / Tekna+ equipment > Nissan Safety Shield not supported
Motion detection
Parking assistance
Driver fatigue detection
Blind spot assistance

Date/time settings > FIS in AUX position
Factory settings and reconfiguration required if the AUX menu item is missing

Number forward / Number backward > Function can The

DIP switch settings for the manufacturer of the aftermarket equipment can be reversed (see the user manual).

Suitable for the following vehicles:

Nissan Altima (L34) 09/2018 - 06/2022
Nissan Qashqai (J11) 10/2018 - 06/2021

The following signals are provided:

Imported vehicles or vehicles with other software may be incompatible in terms of functionality.

Red: +12V ignition terminal 15
Orange: +12V lighting connection 58
Purple/white: +12V reverse signal
Pink: speed signal
Green: Mass (GND) Handbrake signal

Nominal output current: max. 250 mA.

Current requirement higher than 250 mA:
1 relay coil resistor 75 ohm min.
2 relay coil resistance 150 ohm min.

Remote control on the steering wheel

Date/time settings supported
360° OEM camera system supported

Suitable for:
Nissan Altima 2018-2022
Nissan Qashqai 2018-2021

---

Warranty

2 years
