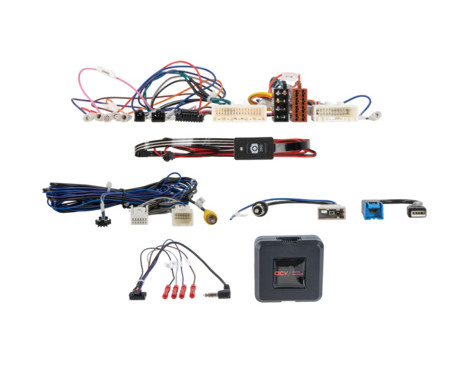

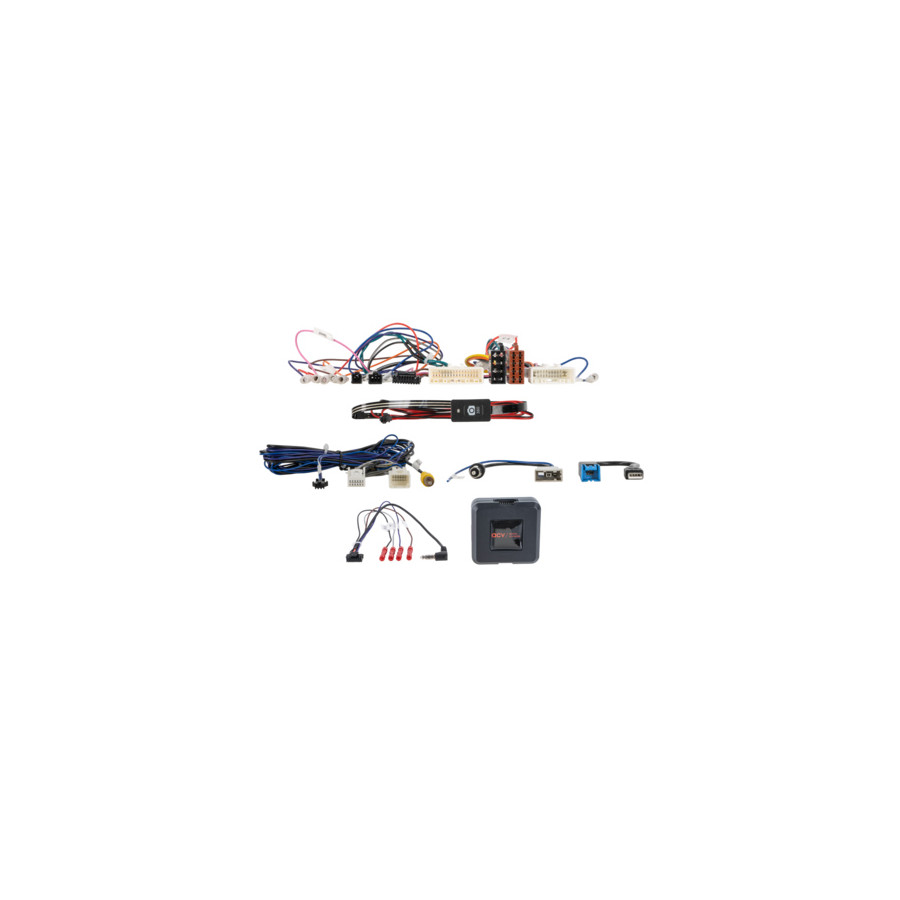

SWI Nissan Navara 20Pin/32Pin Multilead 360 camera (42sns026)
Product number: 2106471
Manufacturer number: 42xns026
EAN: 4026724675924
-
Free 30 days exchanges
-
Any part, any car
-
Shipment within 10 days
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Steering wheel control interface
Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the adapter's illustrated connector with
the one in your car to make sure you have the right one.
Also check if any of the
specified original factory radio is installed in your vehicle!
Remark:
CAN bus
connector: 20 pin / 32 pin Nissan
Connector: OEM SWC > 3.5mm Jack / Loose Wire
connector: OEM AUX > RCA(m) red/white
connector: OEM USB > USB-A
connector: OEM mirror camera > T-harness
connector: OEM 360° mirror camera system > RCA(m) yellow
Connecting the camera system to the rear-view mirror
vehicles with model equipment N-connecta with mirror camera
Voert uigen met modelapparatuur Tekna met 360 mittor camerasysteem
vehicles without camera display in the OEM HU
BC factory reset and reconfiguration required if AUX menu is missing:
track forward / track back > function can be switched
dip switch settings for the manufacturer of the retrofit device (see manual)
Application in vehicles:
Nissan Navara (D231) 01/2016 - 07/2019
Nissan Terra 04/2018 - 2022
The following signals are provided:
Re-imported vehicles or vehicles with different software may be functionally incompatible.
red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reversing signal
pink: speed pulse signal
green: GND parking brake signal
Output capacity: max. 250 mA
Current consumption more than 250 mA:
1 relay coil resistance min. 75 Ohm
2 relay coil resistance 150 Ohm min.
SWC
date/time settings supported
360° OEM camera system supported
Suitable for:
Nissan Navarra 2016-2019
Nissan Terra 2018-2022
Warranty 2 years -
Applicability
Universally applicable
-
