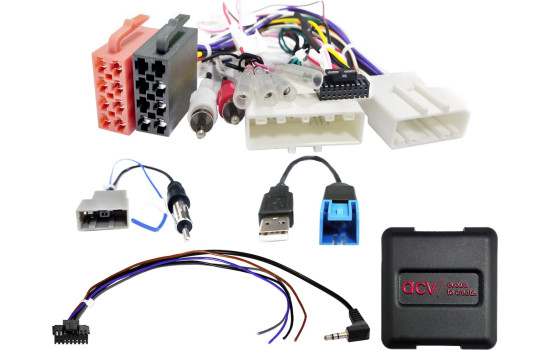

SWI Nissan Pulsar/Qashqai/X-Trail 20Pin/32Pin Multilead (42sns009)

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the adapter's illustrated connector with
the one in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Remark:

CAN bus

Connection: 20-pin / 32-pin Nissan connector
Connection: OEM steering wheel remote control > 3.5mm jack / loose cable
Connection: OEM antenna GT13(f) > DIN(m)
Connection: OEM AUX > Cinch(m) red/white
Connection: OEM USB > USB-A

blue: +12V antenna remote control

Vehicles with Visia equipment

Vehicles without OEM navigation
Vehicles without 360° OEM camera system

Supported date/time settings

OEM AUX: Check for correct assignment by measuring before installation

DIP switch settings for the retrofit device manufacturer (see BDA)

Suitable for the following vehicles:

Nissan Pulsar (C13) 10/2014 - 06/2018
Nissan Qashqai (J11) 03/2014 - 07/2017*
Nissan X-Trail (T32) 07/2014 - 07/2017*

The following signals are provided:

Re-imported vehicles or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reversing signal
pink: speed signal
green: ground GND handbrake signal

Output load capacity: 250 mA max.

Current requirement greater than 250 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel remote control

Supported date/time settings

*Vehicles with 360° OEM camera system Article in preparation:
LFB Nissan Qashqai/Rogue/X-Trail 20Pin/32Pin camera > Item: 42xns025
Remark:
CAN Bus

Connection: 20 pin / 32 pin Nissan plug
Connection: OEM AUX > Cinch(m) red/white
Connection: OEM USB > USB-A

Vehicles with Visia equipment

Vehicles without OEM Navigation
Vehicles without 360° OEM camera system*

Supported date/time settings

Suitable for the following vehicles:

Nissan Pulsar (C13) 10/2014 - 06/2018
Nissan Qashqai (J11) 03/2014 - 07/2017**
Nissan X-Trail (T32) 07/2014 - 07/2017**/***

Only for the basic model "Visia" without OEM navigation.

The following signals are provided:

Handbrake signal
Reversing signal
Inflammation
Speed

Steering wheel remote control

Supported date/time settings

*Vehicles with 360° OEM camera system:
**LFB Nissan Qashqai/Rogue/X-Trail 20Pin/32Pin camera > Item: 42sns025
***LFB Nissan Altima/Murano/X-Trail 20Pin/40Pin camera > Item: 42sns024

Connection cable for the following radio manufacturers:

LFB cable 42s/acv > Alpine connection: 42calpinelead
LFB cable 42s/acv > Parrot 4 pin: 42ctasteroidlead
LFB cable 42s/acv > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
LFB cable 42s/acv > Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
LFB cable 42s/acv > Clarion connection: 42ctclarionlead
LFB cable 42s/acv > JVC 1 cable/jack: 42ctjvclead
LFB cable 42s/acv > Kenwood 1 cable: 42ctkenwoodlead
LFB cable 42s/acv > Multilead various devices: 42ct multilead
LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead3
LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead5
LFB cable 42s/acv > Panasonic 1 cable: 42ctpanasoniclead
LFB cable 42s/acv > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
LFB cable 42s/acv > Pioneer AVH/DMH/SPH 2022 > connection loose: 42ctpioneerlead2
LFB cable 42s/acv > Devices with LFB learning function: 42ctsmartlead
LFB cable 42s/acv > Blaupunkt/Kenwood/Sony connection: 42ctsonylead
LFB cable 42s/acv > XZent/Zenec 1 cable: 42ctzeneclead

Replacement for the 42sns009

Suitable for:
Nissan Qashqai 2014-2017
Nissan X-Trail 2014-2017
Nissan Pulsar 2014-2018

---

Warranty

2 years
