ACV

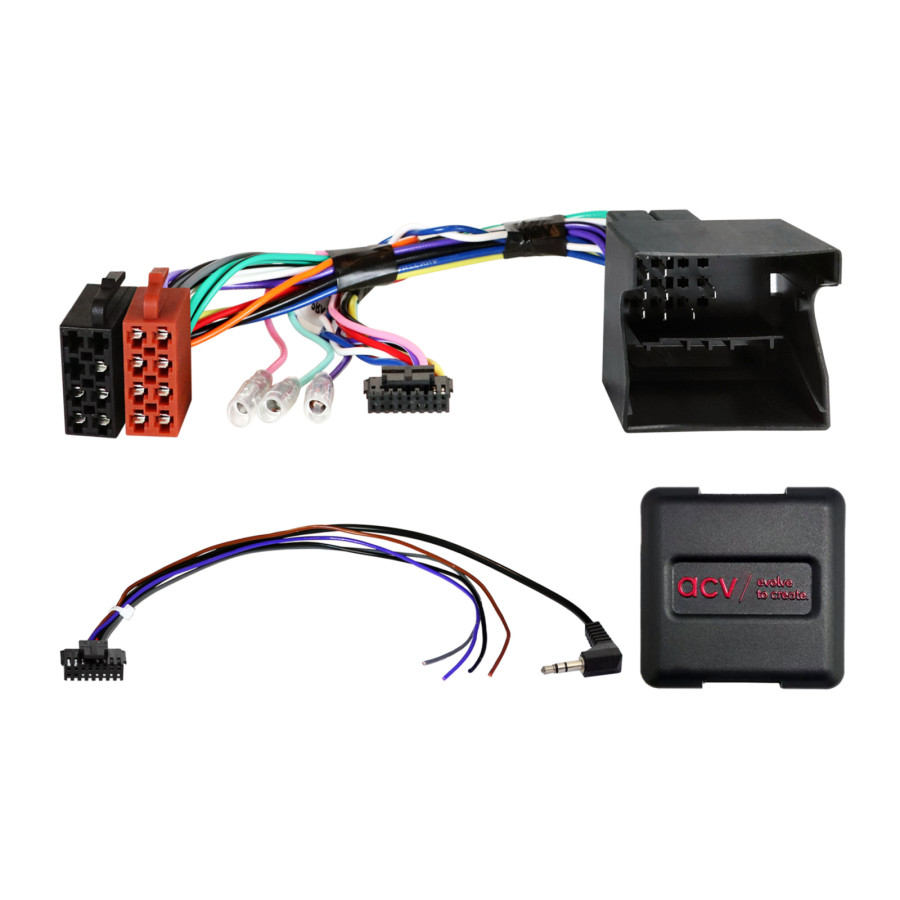

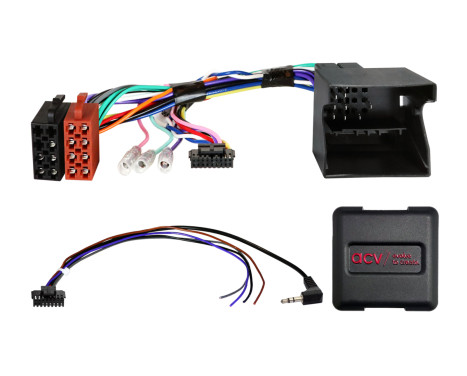

SWI Opel/Renault 40Pin Quadlock Multilead (42srn006)

SWI Opel/Renault 40Pin Quadlock Multilead (42srn006)

Product number: 2003635

Manufacturer number: 42xrn006

EAN: 4026724674552

£ 69.60

Incl. VAT
View product specifications
In stock
Delivery 26-06-2026

Free Shipping

Secure payment
  • checkmark Free 30 days exchanges
  • checkmark Any part, any car
  • checkmark Fast shipping: 2 days
  • checkmark Expert support

Ecommerce Europe Trustmark UPS

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.
Ask your question at our product specialists.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Steering wheel control interface

    Retain the original steering wheel remote control functions,
    if you trade in your factory radio for an aftermarket radio.
    Compare the adapter's illustrated connector with
    the one in your car to make sure you have the right one.

    Also check if any of the
    specified original factory radio is installed in your vehicle!

    Remark:

    CAN bus

    Connection: 40-pin Quadlock Renault connector
    Connection: OEM steering wheel remote control > 3.5mm plug / loose cable

    Opel vehicles with CD30/CD30MP3/CDC40/CD50/CD70 OEM device

    Renault vehicles without OEM sound system Arkamys DSP
    Renault vehicles without Radiosat Classic OEM device*

    Vehicles with TomTom OEM navigation functionality not supported

    LFB function only possible when engine is running

    Date/time setting not supported

    DIP switch settings for the aftermarket device manufacturer (see BDA)

    Suitable for the following vehicles:

    Opel
    Opel Vivaro (X83) 01/2011 - 05/2014

    Renault
    Renault Clio III (R) 05/2009 - 07/2014
    Renault Mégane III (B/BZ) 11/2009 - 02/2012
    Renault Scenic III (JZ) 06/2009 - 02/2012
    Renault Twingo II (N) 09/2009 - 12/2011**
    Renault Wind (N) 08/2010 - 08/2013**

    The following signals are given:

    Vehicles that are re-imported or vehicles with different software may be functionally incompatible.

    red: +12V ignition terminal 15
    orange: +12V lighting terminal 58
    purple/white: +12V reversing signal
    pink: speed signal
    green: ground GND handbrake signal

    Output load capacity: 250 mA max.

    Current requirement greater than 250 mA:
    1 relay Coil resistance 75 Ohm min.
    2 relays Coil resistance 150 Ohm min.

    Steering wheel remote control

    *Contact Support
    **Vehicles with tuner list OEM device without display

    Suitable for:
    Opel Vivaro 2011-2014
    Renault Clio 2009-2014
    Renault Megane 2008-2012
    Renault Scenic 2009-2012
    Renault Twingo 2009-2011
    Renault Wind 2010-2013
    Warranty2 years

  • Applicability

    Universally applicable

  • Manufacturer

    ACV

  • Delivery time

    Expected delivery date:

    26-06-2026
