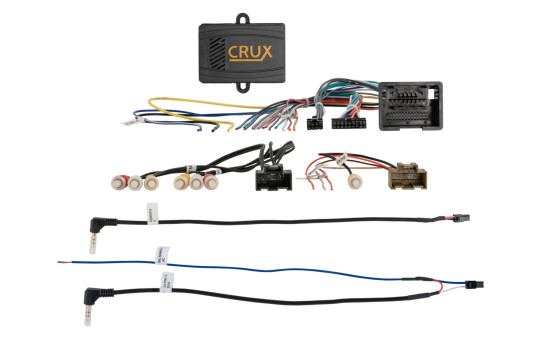

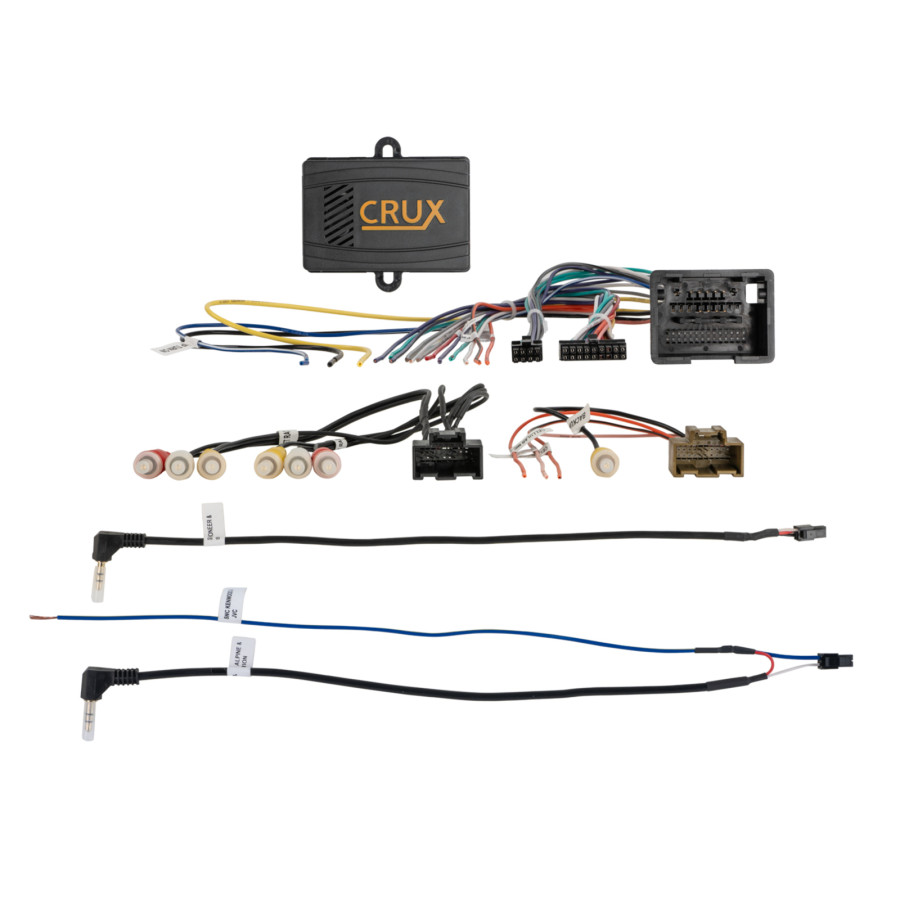

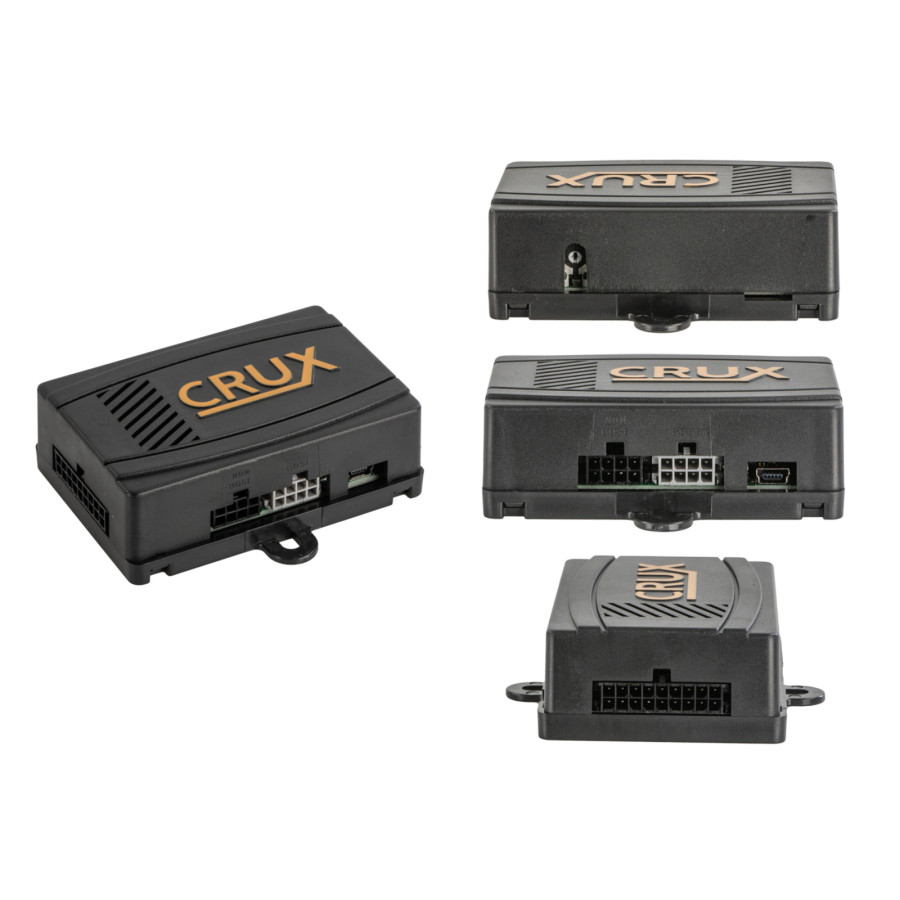

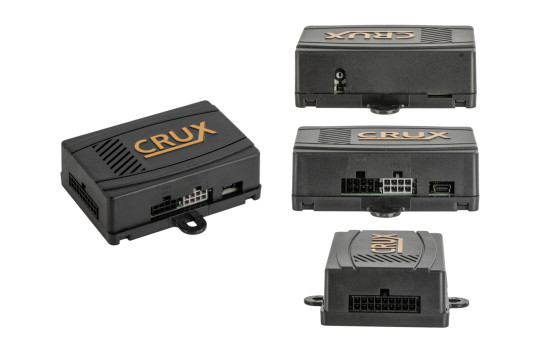

SWI Various Chevrolet - GM models 48-pin OEM navigation incl. Multilead

Steering wheel control adapter – Chevrolet / GMC adapter

SWRGM-49A

Retain the original steering wheel controls when replacing the factory radio.
by an aftermarket radio.

Depending on the vehicle's equipment and the functionality and software of the aftermarket
built-in device certain control functions may be missing or due to other functions
be replaced.

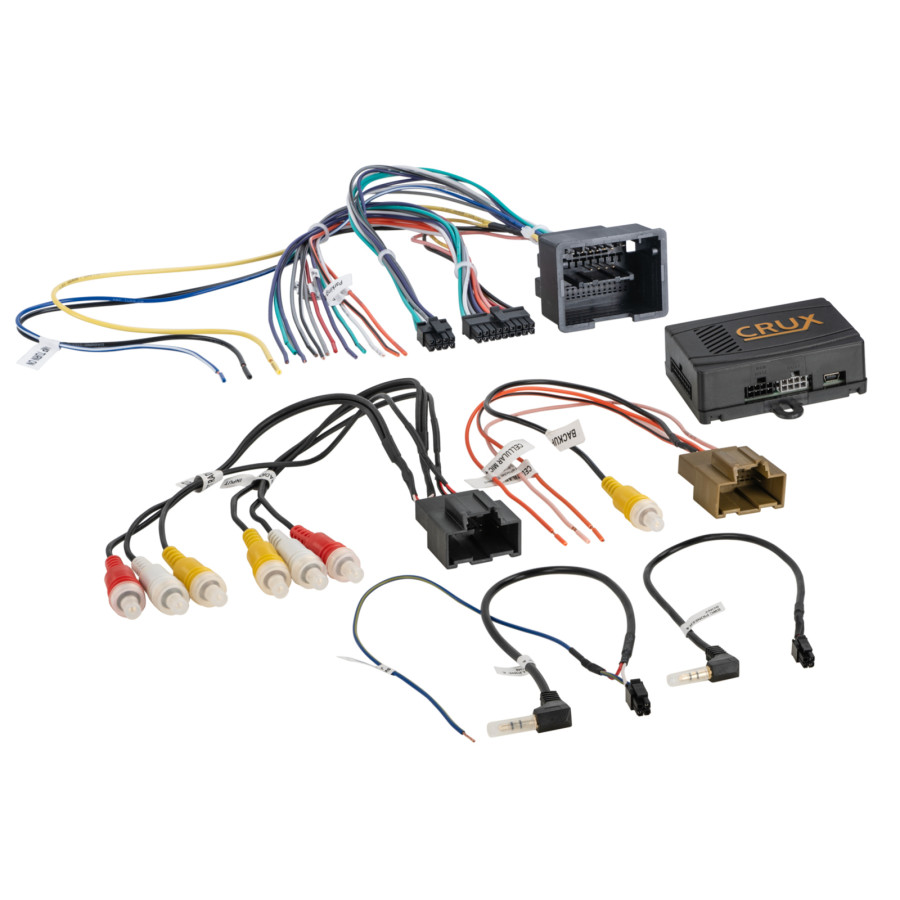

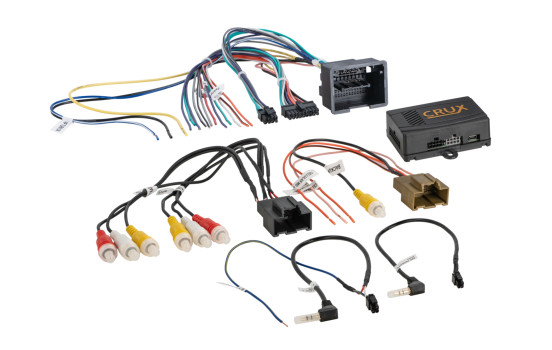

Compare the adapter plugs shown in the image with those in your car and check if they both
fit visually and technically.

Also check whether one of the mentioned original factory radios was installed in your car.

Before final assembly, check whether the vehicle functions, vehicle settings and
Steering wheel controls work properly.

Remark:
GM LAN 29-bit

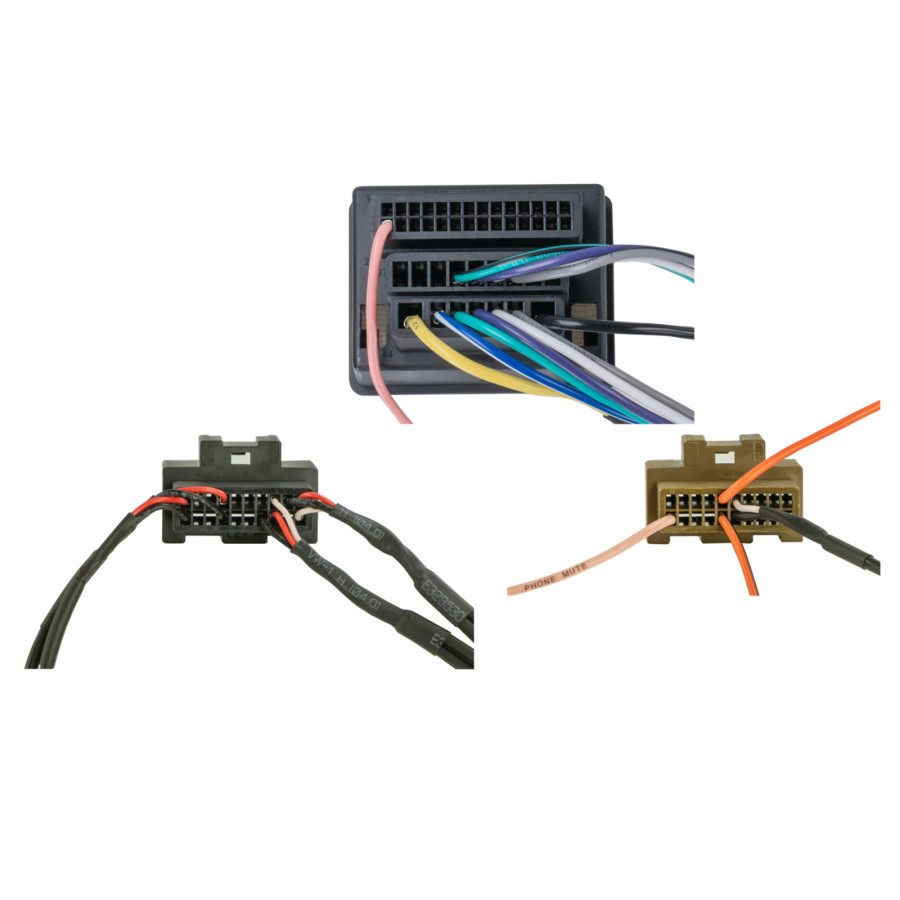

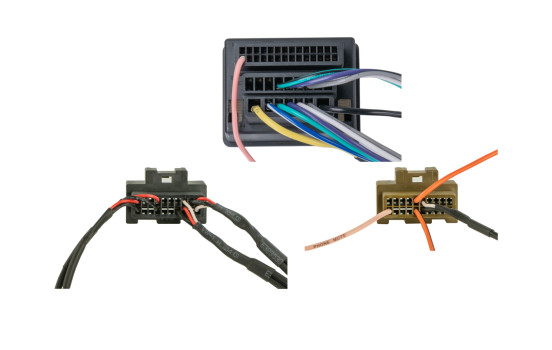

Connection: 48-pin GM plug > separate cable
Connection: OEM steering wheel control > 3.5 mm jack*
Connection: OEM reversing camera > cinch (m) yellow
OEM Rear Seat Entertainment A/V Connection > cinch (male/female) red/white/yellow

DIP switch settings for the manufacturer of the aftermarket equipment (see BDA)
Aftermarket equipment with 2/3-cable control: cut off 3.5 mm jack (see BDA)
blue/white: +12 V switched Amp Remote
Aftermarket equipment with 2/3-cable control (see BDA)
Vehicles with/without BOSE / Y91 OEM sound system

Vehicles with OEM navigation

Alert tones are supported and the volume is adjustable.

PDC back is supported

Rear Seat Entertainment is supported

OnStar is not supported

PDC for is not supported

Speed signal is not supported

Steering wheel remote control for XZent/Zenec devices with 1-cable control is not
supported

Express and Savana van vehicles with diesel engines are not compatible

Optional accessories:
Radio adapter ISO power/speaker > separate cable 15 cm > Item number: 1432-02
Diagnostic LED:
flashing blue > Search CAN bus
blue continuous > CAN bus active
red > +12V ignition current active

Suitable for the following vehicles:
Chevrolet Avalanche 2012 – 2013
Chevrolet Silverado 1500-3500 pickup 2012 – 2014
Chevrolet Suburban 2012 – 2014
Chevrolet Tahoe 2012 – 2014
GMC Sierra 1500-3500 Pickup 2012 – 2013
GMC Yucon 2012 – 2014

The following signals are made available:

Re-imported vehicles or vehicles with non-standard software may be incompatible in terms of functions.

pink: +12V ignition, terminal 15
orange: +12V lighting, terminal 58
purple/white: +12V reverse signal

Speed signal is not supported
Remote control on the steering wheel
BOSE /Y91 OEM sound system (BOSE Premium sound system, fader is not supported)
Warning tones are supported
Rear PDC is supported
Rearview camera is supported
Rear Seat Entertainment is supported
Optional
ISO(f) power/speaker conversion adapter > loose cables > item: 1432-02

Suitable for:
Chevrolet Avalanche 2012-2013
Chevrolet Silverado 2012-2014
Chevrolet Suburban 2012-2014
Chevrolet Tahoe 2012-2014
GM Sierra 2012-2013
GM Yukon 2012-2014

---

Warranty

2 years
