DLS 10" amplified subwoofer ACW10

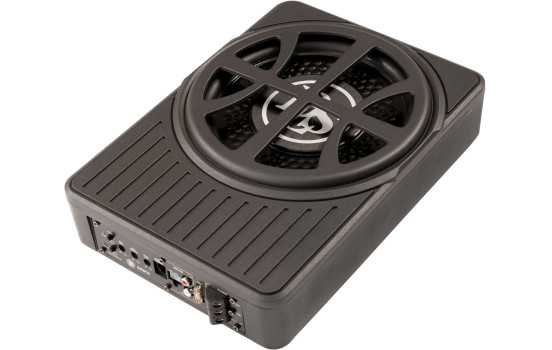

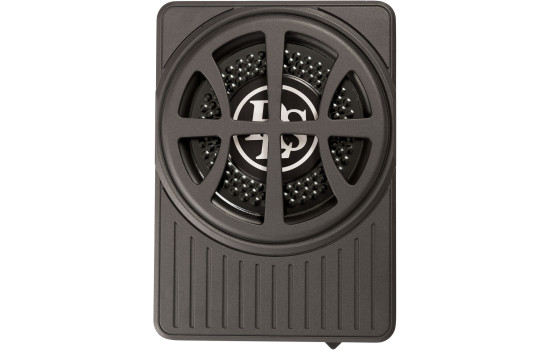

The DLS ACW10 features a super-tough 10" profiled speaker with a DLS grille in a sealed die-cast aluminum enclosure with heat dissipation grooves for the built-in 200 Watt RMS Class D amplifier.

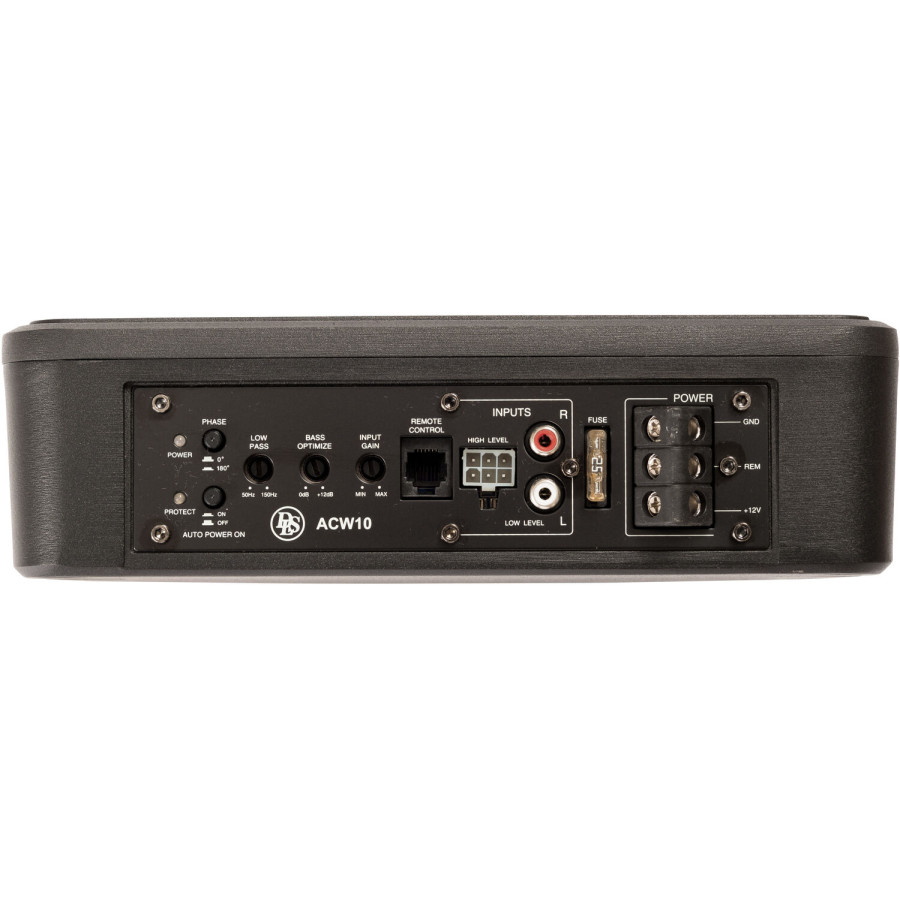

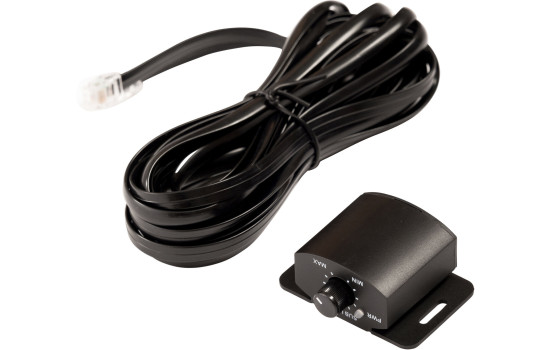

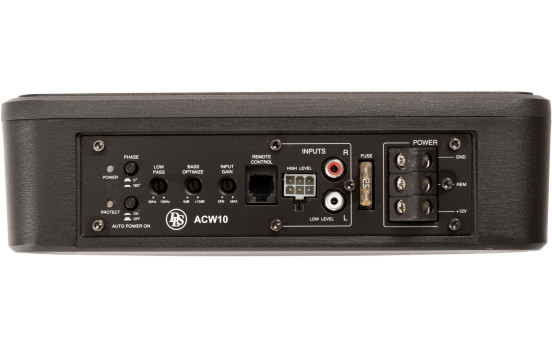

Now you can experience real bass performance even when space is very limited, and you can fine-tune the level with the remote control from the dashboard! Easy to connect via High Level to any OEM stereo and with auto start or via RCA line level input, variable Lowpass filter and 0/180 degree phase switch.
Woofer size 1 x 10? woofer
Output power into 2 ohms 200 Watts RMS / 450W
Frequency range 30Hz - 150Hz
Phase control for subwoofers 0/180 degrees variable
Subsonic filter 30Hz
Remote bass level control Yes
Low-pass filter 50 - 150 Hz
Voltage 12 - 15 Volts DC
Fuses 1 x 25 A
High level input with automatic start Yes
Dimensions (W x D x H) 24.5 x 34.5 x 6.5 cm
Suitable for:
10 Inches
Subwoofer box Active
| application | Underseat |
| Power | 200 watt |
| Sufwoofer size | 10 inch |
| Warranty | 2 years |
| Diameter | 250 mm |
