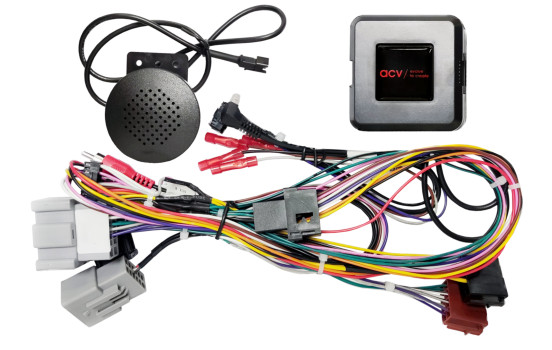

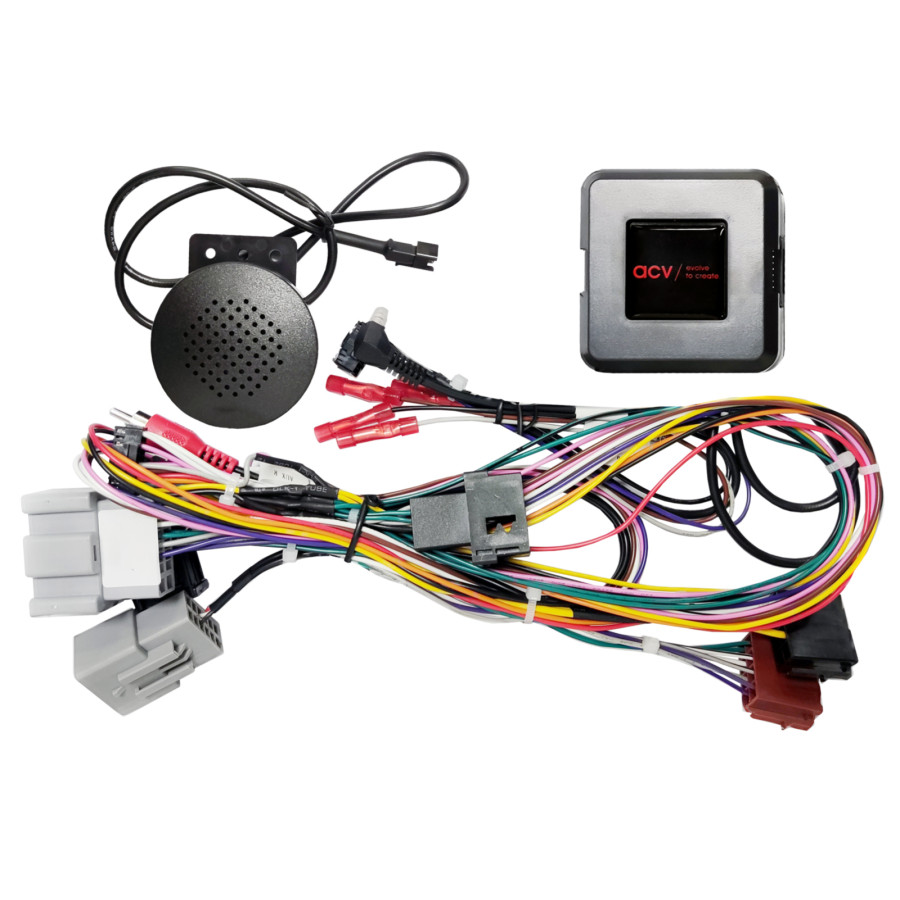

SWI Ford Fiesta 24Pin/Display Multilead (42sfo005)
Product number: 2003626
Manufacturer number: 42xfo005
EAN: 4026724675382
-
Free 30 days exchanges
-
Any part, any car
-
Fast shipping: 2 days
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Steering wheel control interface
Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the adapter's illustrated connector with
the one in your car to make sure you have the right one.
Also check if any of the
specified original factory radio is installed in your vehicle!
Remark:
CAN bus
Connection: 24-pin Ford connector
Connection: OEM steering wheel remote control > 3.5mm jack / loose cable
Connection: AMP display connector > OEM display
Connection: OEM display connector > interface
Vehicles with Visteon OEM device
Vehicles with OK steering wheel remote control
Vehicles with red OEM display
Vehicles with M steering wheel remote control without OK button are not compatible
Vehicle settings supported
Vehicles with small screen and 2 setting buttons on the right > Date setting not supported
DIP switch settings for the aftermarket device manufacturer (see BDA)
Suitable for the following vehicles:
Ford Fiesta (JA8) 06/2010 - 09/2012
The following signals are provided:
Vehicles that are re-imported or vehicles with different software may be incompatible in terms of features.
red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reversing signal
pink: speed signal
green: ground GND handbrake signal
Output load capacity: 250 mA max.
Current requirement greater than 250 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.
Steering wheel remote control
Supported vehicle settings
Suitable for:
Universal
Ford Fiesta 2010-2012
Warranty 2 years -
Applicability
Universally applicable
-
